Prepare Rear Floor Reinforcement - Ar64.20-P-1141-02XG
Model 463 as of model year 2019
The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.
The higher-level service information as well as the safety information must be observed.

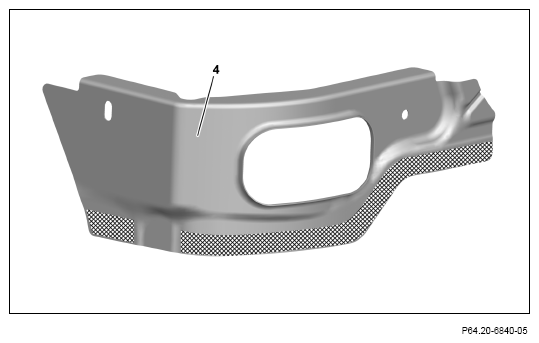

- Grind mating surfaces at reinforcement (4) down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Coat insides of spot weld flanges with zinc dust paint.
