Remove/Install Left Front Or Right RPM Sensor - AR42.30-P-0712XG

Model 463

as of model year 2019

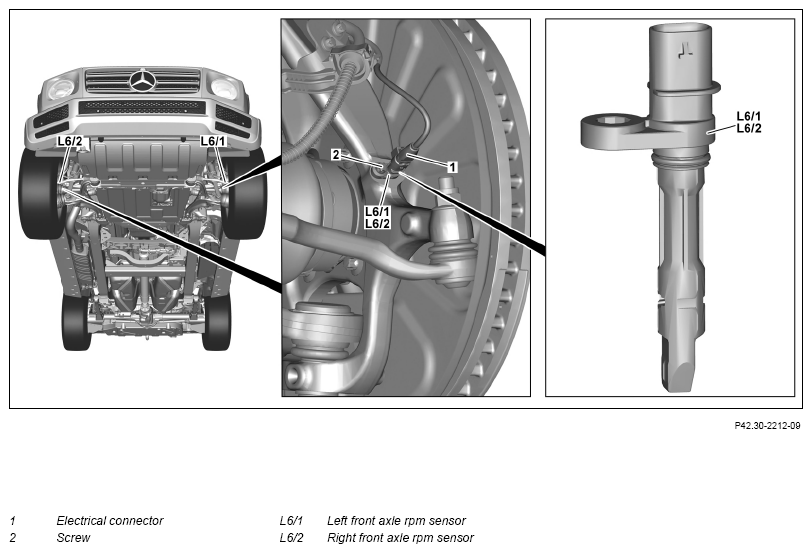

Fig 1: Left Front Or Right RPM Sensor Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove left or right wheel and tire assembly on front axle.		AR40.10-P-1102XG
2	Release electrical connector (i) and remove from left front axle rpm sensor (L6/1) or from right front axle rpm sensor (L6/2).
3	Unscrew the bolt (2).	Self-locking bolt, rpm sensor to steering knuckle	*BA42.30-P-1001-01B
4	Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2).
5	Install in reverse order.

FRONT AXLE RPM SENSOR

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA42.30-P-1001-01B	Self-locking bolt, rpm sensor to steering knuckle	Nm	8	8
