(Brake System Vacuum Pump, Location/Task/Design/Function - GF43.10-P-3101GG)
MODEL 460,
461.217/219/227/229/238/239/249/266/267/302/321/322/323/326/327/328/329/331/332/335/336/337/338/341/342/345/365/366/367/368/392/401/402/403/404/405/450/451/452/454/455/456/458/459, 463 up to 5/31/12
Location
The vacuum pump is flange-mounted on the timing case cover (engine 602/603/606/616/617), on front cylinder head (engine 612) or on front right cylinder head (engine 628/642).
Task
Generation of vacuum for the brake unit.

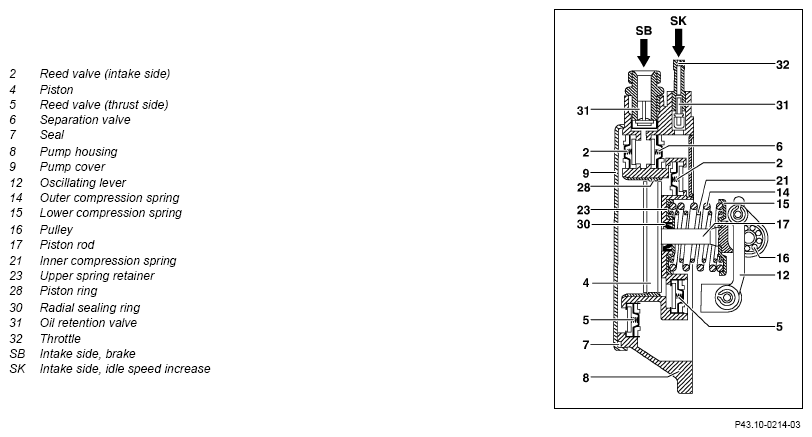

Piston pump shown (installed in engine 602/603/606/616/617)
Body
The pump cover is made of sheet steel and caulked with the pump housing (engine 602/603/606/616/617). Repair of the vacuum pump is therefore impossible.
A special maintenance service is not required.
Function
Dual-action piston vacuum pump. The drive takes place over the cam plate of the injection timing device (engine 602/603/606/616/617). Lubrication is done when oil is sprayed from the engine. The vacuum pump works in both directions, i.e. it has 2 suction circuits that are connected to each other with a separation valve. One circuit supplies to the brake unit, the other circuit supplies to electrical accessories, e.g. for idle speed increase. An oil retaining valve is installed in both connections.
A fixed orifice of 0.8 mm 0 is located in the connection for the electrical accessories so that the brake unit circuit has preference for supply.
