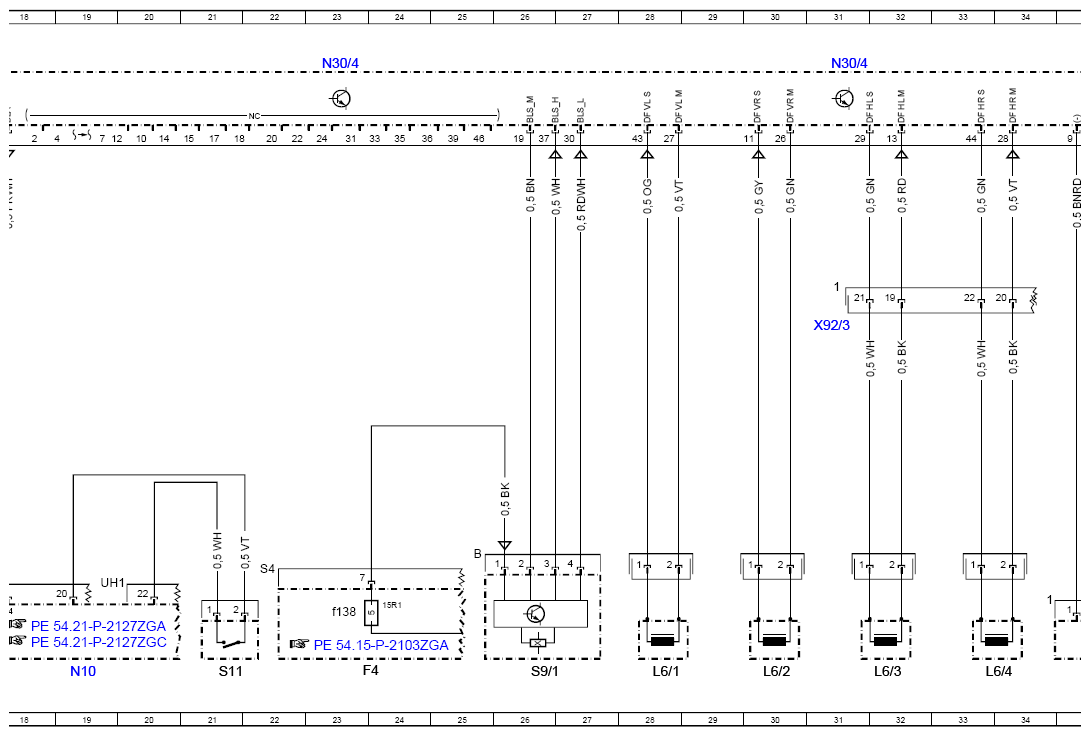

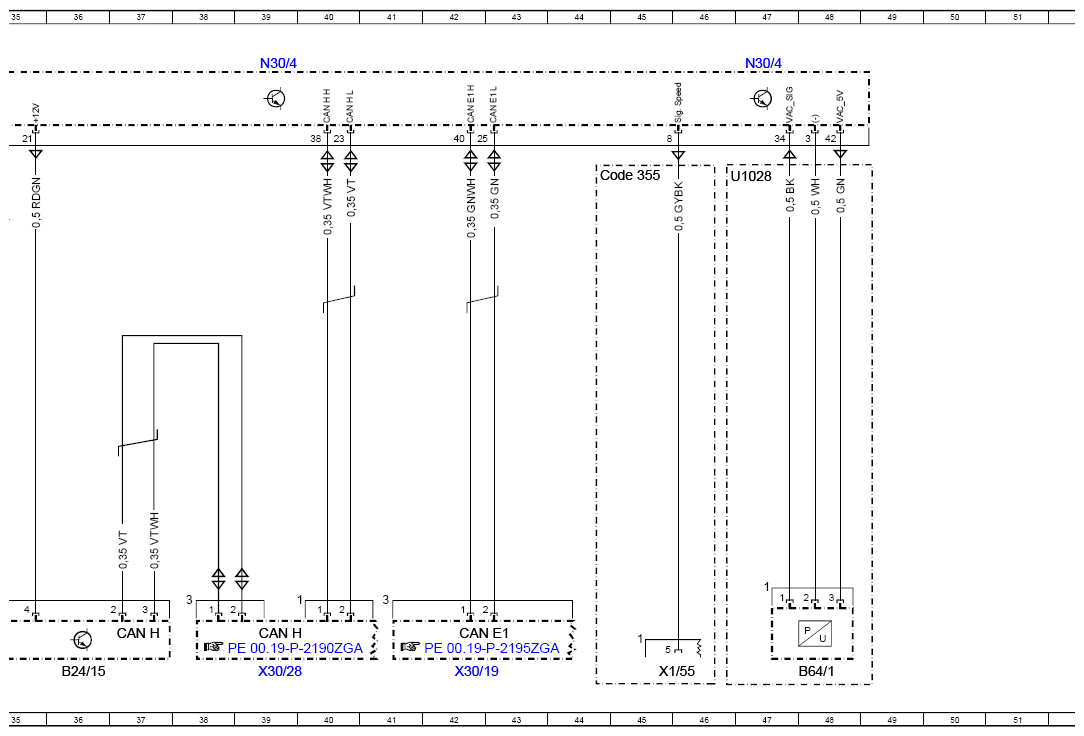

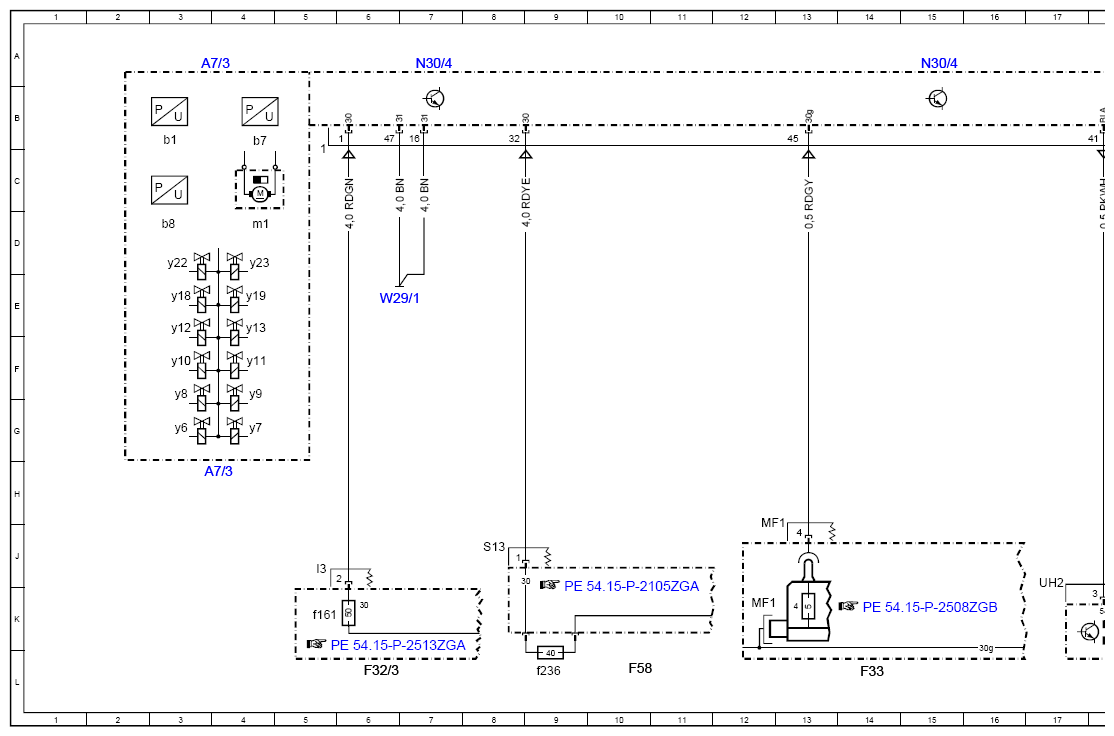

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97ZGA
Model 463 as of model year 2013 up to model year 2016 /YoM 12 model refinement package, control unit N30/4, Electronic Stability Program (ESP) Premium
| Code: | Designation: | Position: |
|---|---|---|

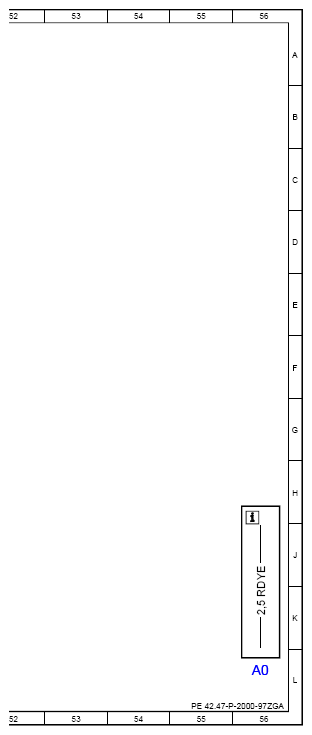

| A0 | Color code key | 56L |
| A7/3 | Traction system hydraulic unit | 3H |
| A7/3 | Traction system hydraulic unit | 3A |
| A7/3b1 | Front axle brake pressure sensor | 3B |
| A7/3b7 | Front pressure sensor | 4B |
| A7/3b8 | Rear pressure sensor | 3D |
| A7/3m1 | High pressure and return pump | 4D |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 3F |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 4F |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 3E |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 4E |
| A7/3y18 | Front axle switchover valve | 3E |
| A7/3y19 | Rear axle switchover valve | 4E |
| A7/3y22 | Front axle intake ball valve | 3D |
| A7/3y23 | Rear axle intake ball valve | 4D |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 3G |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 4G |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 3F |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 4F |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 36L |
| B64/1 | Brake vacuum sensor | 48L |
| CAN E1 | Chassis CAN 1 | 42K |
| CAN H | Vehicle dynamics CAN | 37K |
| CAN H | Vehicle dynamics CAN | 39K |
| Code 355 | Preinstallation for navigation retrofit | 44C |
| F32/3 | Engine compartment prefuse box | 6L |
| F32/3f161 | Fuse 161 | 5K |
| F33 | Battery compartment prefuse box | 14L |
| F33MF1 | Multiple fuse 1 | 12K |
| F4 | Rear fuse and relay module | 23L |
| F4f138 | Fuse 138 | 23K |
| F58 | Front passenger footwell fuse and relay module | 10L |
| F58f236 | Fuse 236 | 9L |
| L6/1 | Left front axle rpm sensor | 28L |
| L6/2 | Right front axle rpm sensor | 30L |
| L6/3 | Left rear axle rpm sensor | 32L |
| L6/4 | Right rear axle rpm sensor | 33L |
| N10 | SAM control unit | 19L |
| N30/4 | Electronic Stability Program control unit | 7A |
| N30/4 | Electronic Stability Program control unit | 15A |
| N30/4 | Electronic Stability Program control unit | 23A |
| N30/4 | Electronic Stability Program control unit | 31A |
| N30/4 | Electronic Stability Program control unit | 39A |
| N30/4 | Electronic Stability Program control unit | 47A |
| S11 | Brake fluid level switch | 21L |
| S9/1 | Stop lamp switch | 26L |
| U1028 | Valid for gasoline engine 157 | 46C |
| W29/1 | A-pillar ground connection, left | 6E |
| X1/55 | External navigation electrical connector | 46L |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 42L |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor electrical connector | 39L |
| X92/3 | Vehicle frame electrical connector (22-pin) | 31E |
