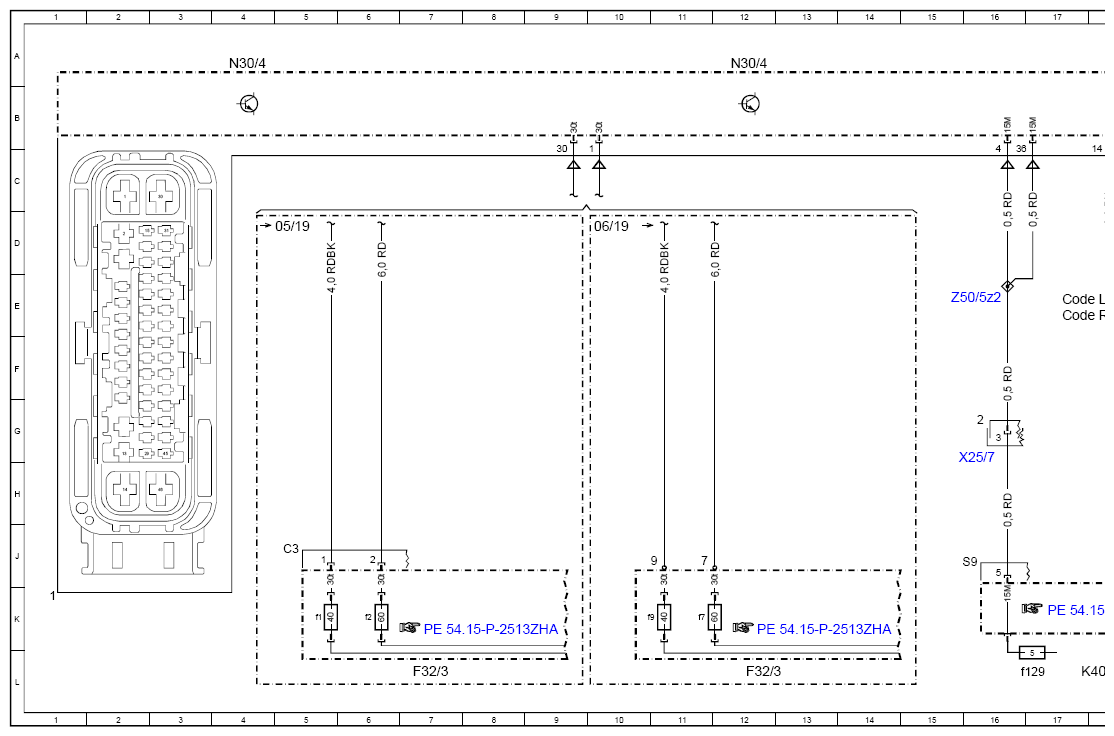

Wiring Diagram Electronic Stability Program (ESP) - PE42.45-P-2200-97ZHA
Model 463 (except 463.342) as of model year 2019 Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|

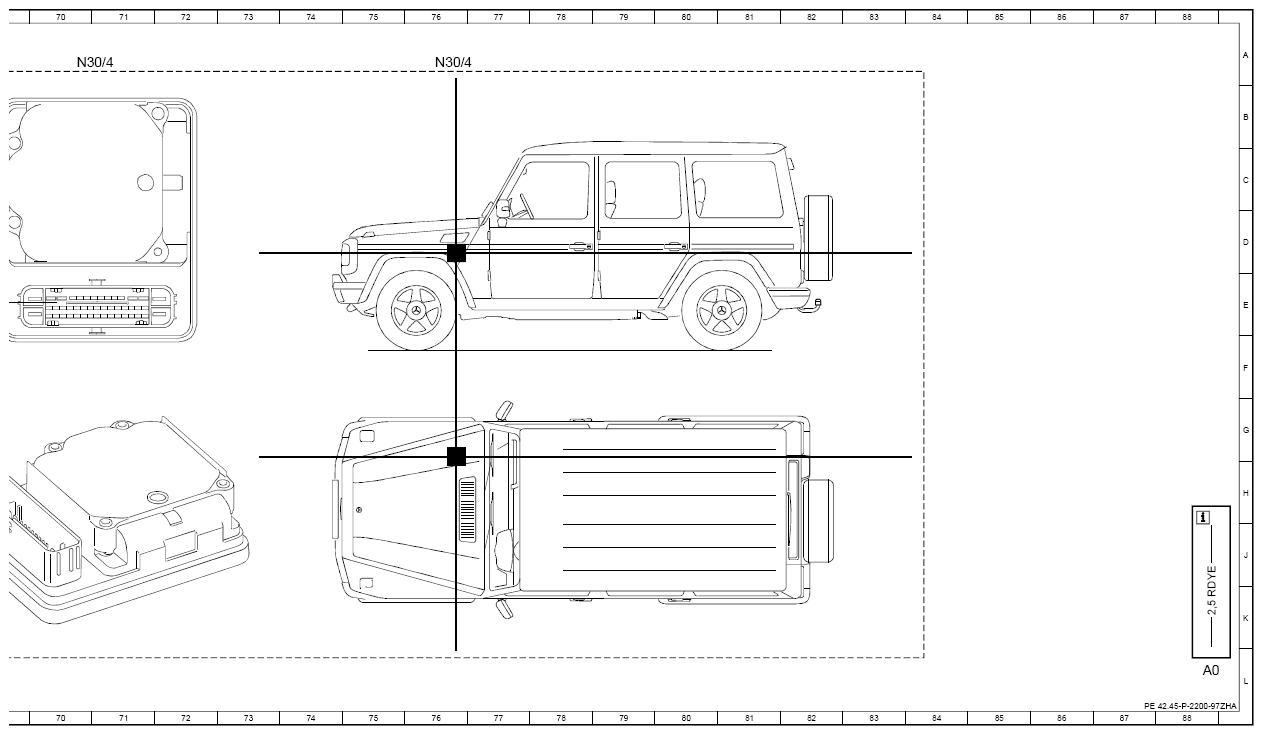

| AO | Use of wiring diagrams | 88L |
| A7/3 | Traction system hydraulic unit | 65A |
| B150 | Brake vacuum sensor | 41L |
| CAN H | Vehicle dynamics CAN | 21K |
| Code L | LEFT-HAND DRIVE | 31L |
| Code L | LEFT-HAND DRIVE | 17E |
| Code L | LEFT-HAND DRIVE | 50L |
| Code R | RIGHT-HAND DRIVE | 31L |
| Code R | RIGHT-HAND DRIVE | 17E |
| Code R | RIGHT-HAND DRIVE | 50L |
| F32/3 | Engine compartment prefuse box | 7L |
| F32/3 | Engine compartment prefuse box | 12L |
| F32/3f1 | Fuse 1 | 5K |
| F32/3f2 | Fuse 2 | 6K |
| F32/3f7 | Fuse 7 | 11K |
| F32/3f9 | Fuse 9 | 10K |
| Flex E | Chassis FlexRay | 25K |
| Flex E | Chassis FlexRay | 24K |
| K40/5 | Rear fuse and relay module | 29L |
| K40/5f462 | Fuse 462 | 28L |
| K40/8 | Engine fuse and relay module | 18L |
| K40/8f129 | Fuse 129 | 17L |

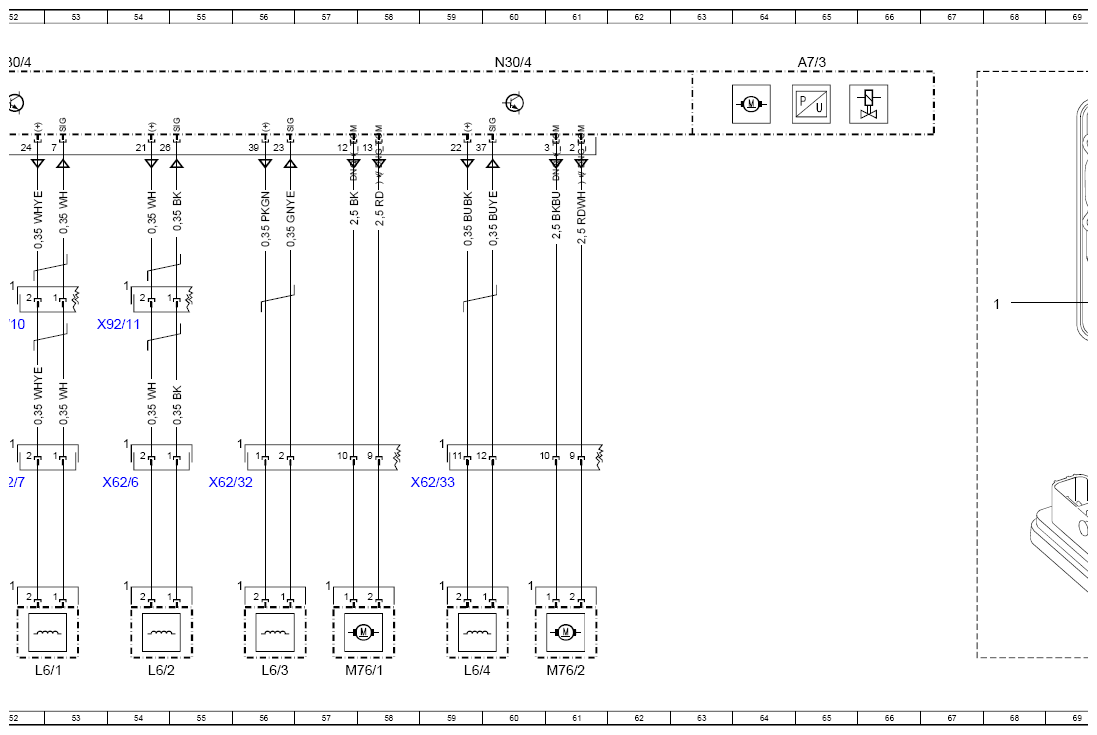

| L6/1 | Left front axle rpm sensor | 52L |
| L6/2 | Right front axle rpm sensor | 54L |
| L6/3 | Left rear axle rpm sensor | 56L |
| L6/4 | Right rear axle rpm sensor | 59L |
| M76/1 | Left electric parking brake actuator motor | 57L |
| M76/2 | Right electric parking brake actuator motor | 61L |
| N10/6 | Front SAM control unit | 45L |
| N10/8 | Rear SAM control unit | 39L |

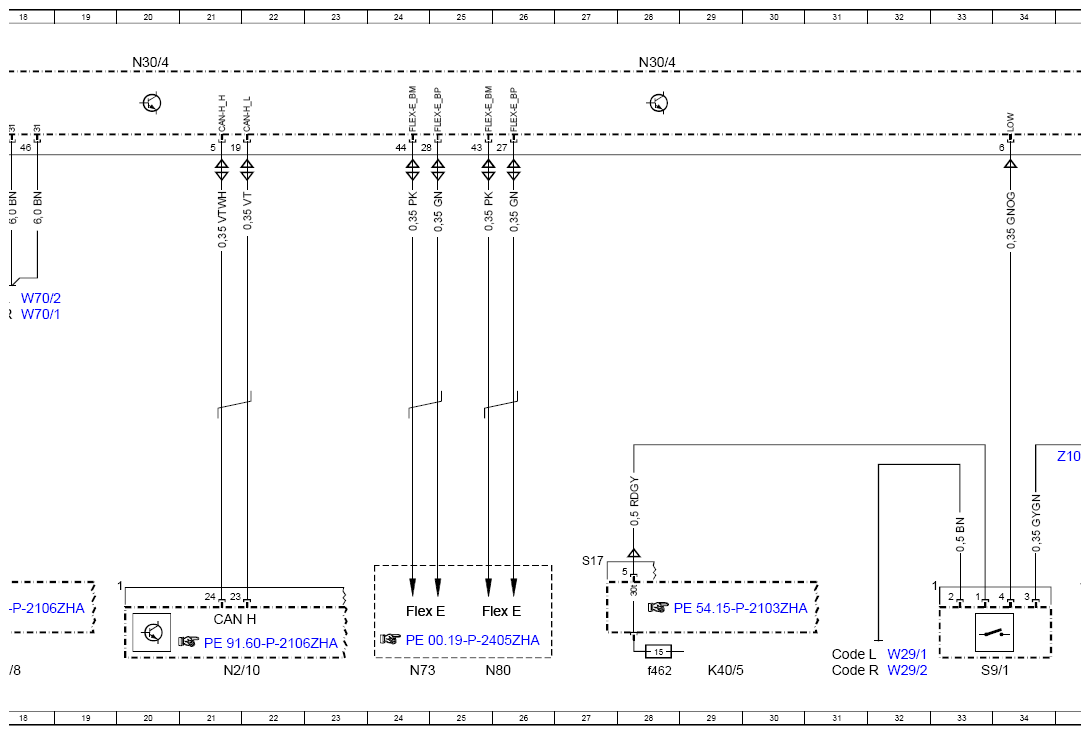

| N2/10 | Supplemental restraint system control unit | 21L |
| N30/4 | Electronic Stability Program control unit | 4A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N30/4 | Electronic Stability Program control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 60A |
| N30/4 | Electronic Stability Program control unit | 70A |
| N30/4 | Electronic Stability Program control unit | 76A |
| N73 | Electronic ignition switch control unit | 24L |
| N80 | Steering column module control unit | 26L |

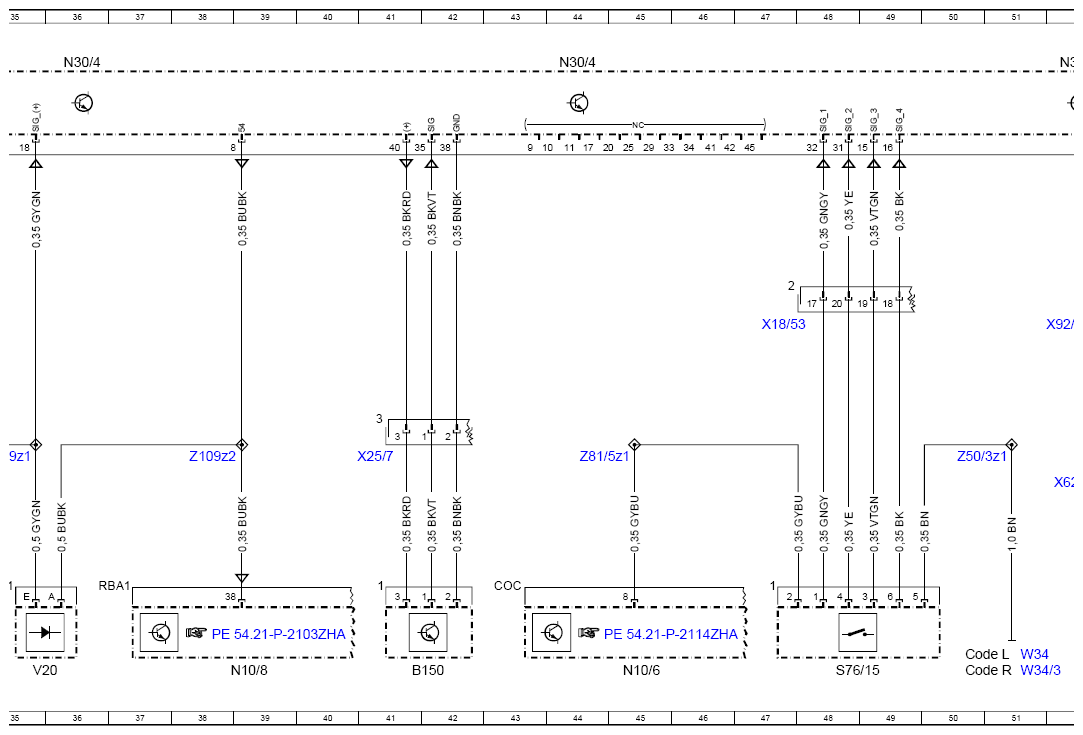

| S76/15 | Electric parking brake switch | 48L |
| S9/1 | Stop lamp switch | 33L |
| V20 | Electronic Stability Program diode | 35L |
| W29/1 | Left A-pillar ground point | 32L |
| W29/2 | Right A-pillar ground point | 32L |
| W34 | Left footwell ground point | 51L |
| W34/3 | Right footwell ground point | 51L |
| W70/1 | Left ESP® ground point | 18E |
| W70/2 | Right ESP® ground point | 18E |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 47E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 16H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 41H |
| X62/32 | Rear axle electrical connector, left distributor | 55H |
| X62/33 | Rear axle electrical connector, right distributor | 59H |
| X62/6 | Front axle electrical connector, right distributor | 54H |
| X62/7 | Front axle electrical connector, left distributor | 52H |
| X92/10 | Left front vehicle interior/frame electrical connector | 52E |
| X92/11 | Right front interior module/frame electrical connector | 54E |
| Z109z1 | Voltage supply connector sleeve | 35G |
| Z109z2 | Circuit 54 connector sleeve | 38G |
| Z50/3z1 | Circuit 31 connector sleeve | 50G |
| Z50/5z2 | Circuit 15M connector sleeve | 16E |
| Z81/5z1 | Circuit 58d connector sleeve | 44G |
