Brake System - Inspect Fluid Level - AP42.10-P-4210C
Model 463
up to model year 2019
Shown in model 463.348
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Check | |||

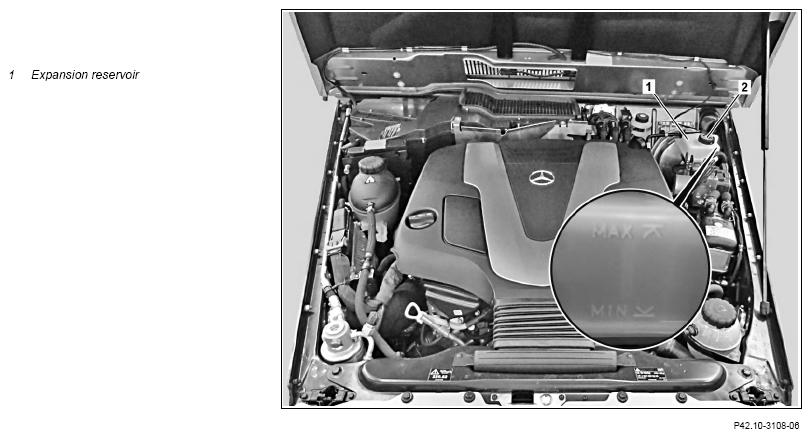

| 1 | Check fluid level in expansion reservoir (1) | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| Brake fluids (DOT 4 plus) | BB00.40-P-0331-00A | ||
If the fluid level is too low: ↓ Rectify problem subject to separate repair order. If the fluid level is too high: ↓ Extract fluid until the level is at the "Max." marking. |
