Assess Condition Of brake discs - AP42.10-P-4256EW
Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 453, 461, 463

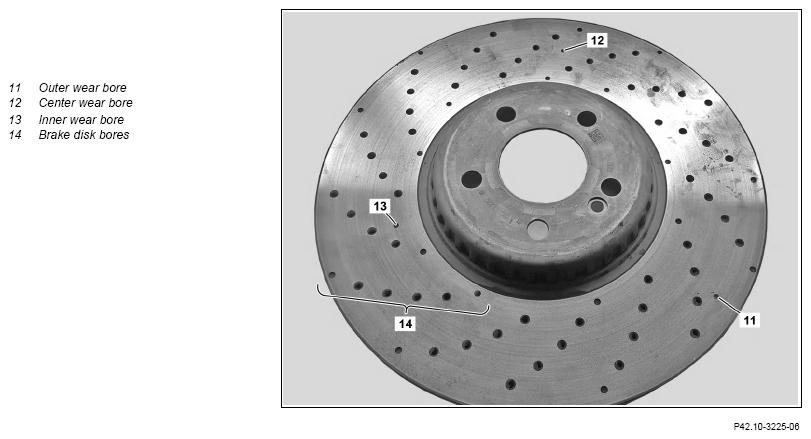

Perforated compound brake disc with wear bores

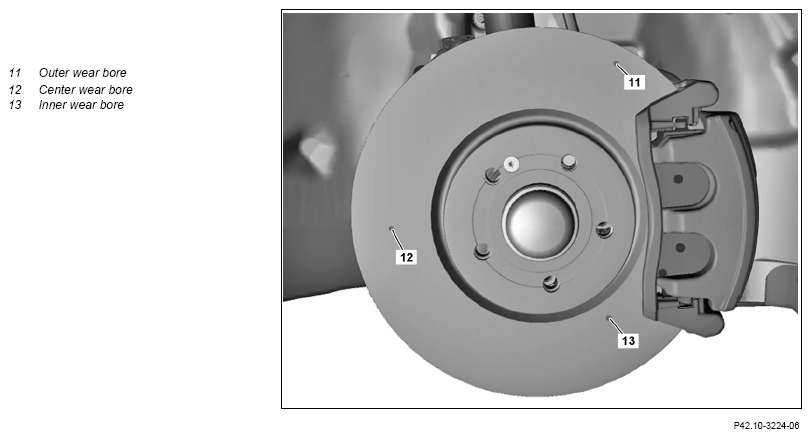

Compound brake disc with wear bores
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on handling, transport and storage of composite brake discs | Model 190, 205, 213, 217, 222, 238, 253, 257, 290 | AH42.10-P-9406-12LF | |
| Notes on handling, transport and storage of ceramic brake discs | Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 with code B07 (Ceramic brake system) |
AH42.10-P-9406-13A | |
| Check | |||

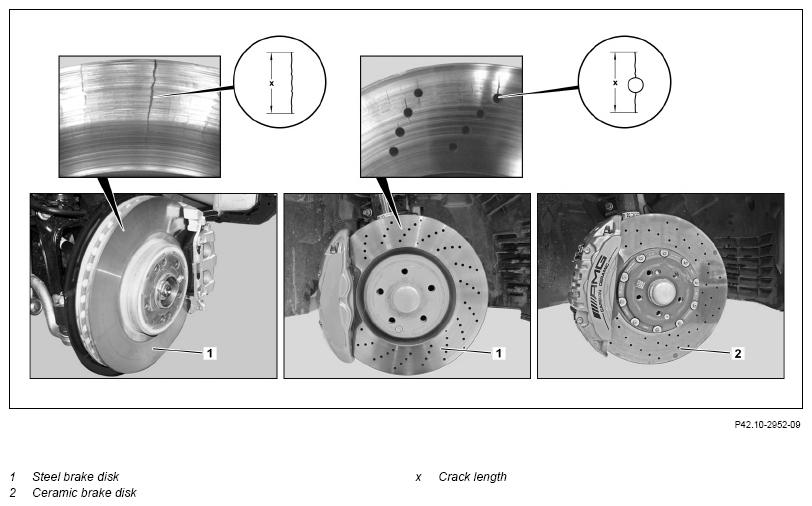

| 1.1 | Assess steel brake discs (1) for score marks, cracks, corrosion and soiling (e.g. oil, grease). | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (Ceramic brake system) Model 205 with code B07 (Ceramic brake system) and steel brake discs on the rear axle For perforated or counterbored steel brake discs (1) assess the crack length (x) including the bore diameter. Otherwise the assessment may be incorrect. If a crack length (x) is ≥ 25 mm (0.98 inches) split open cracks or score marks are deeper than 0.5 mm (0.02 inches), or severe corrosion is present, ↓ replace steel brake discs (1). If soiling (e.g. oil, grease) is present. ↓ Clean steel brake discs (1), and replace if necessary. |
|
| 1.2 | Assess ceramic brake discs (2) for damage and soiling (e.g. oil, grease). | Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 with code B07 (Ceramic brake system) |
|
| Notes on evaluating brake discs | AH42.10-P-9406-07RQ | ||
| If the ceramic brake discs (2) are damaged or soiled, ↓ replace ceramic brake discs (2). |
|||
| If, in exceptional cases, assessment of the ceramic brake discs (2) is not possible by means of a visual check, ↓ check ceramic brake discs (2) for condition. |
|||
| AP42.10-P-4246U | |||
| 2.1 | Assess steel brake discs (1) for wear. | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (Ceramic brake system) Model 205 with code B07 (Ceramic brake system) and steel brake discs on the rear axle Steel brake discs (1) with wear bores. |
|
| Notes on evaluating brake discs with and without wear holes | AH42.10-P-9406-14A | ||
| If outer wear bore (11), center wear bore (12) and the inner wear bore (13) are visible, ↓ the steel brake discs (1) are OK; new brake pads can still be installed on the disks. If the inner wear bore (13) is visible, ↓ the steel brake discs (1) are OK, the current brake pads can still be used, do not install any more new brake pads onto the steel brake disks (1). If none of the three wear bores are visible, ↓ replace steel brake discs (1). If, in exceptional cases, assessment of the steel brake discs (1) is not possible by means of a visual check, ↓ check steel brake discs (1) for condition. |
|||
| AP42.10-P-4246U | |||
| 2.2 | Assess steel brake discs (1) for wear. | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (Ceramic brake system) Model 205 with code B07 (Ceramic brake system) and steel brake discs on the rear axle Steel brake discs (1) without wear bores. |
|
| Notes on evaluating brake discs with and without wear holes | AH42.10-P-9406-14A | ||
| If deeply contoured ridging is present at the outer edge, ↓ replace steel brake discs (1). If, in exceptional cases, assessment of the steel brake discs (1) is not possible by means of a visual check, ↓ check steel brake discs (1) for condition. |
|||
| AP42.10-P-4246U | |||
