(Check Brake Pad Thickness And Condition Of brake discs - AP42.10-P-4251G)

Model 460, 461

Model 463

up to model year 2012

MODIFICATION NOTES

04.09.2019

brake disc thickness

Model 463.260/261/270/271/272/349

BE42.10-P-1001-09C

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove
1	Remove wheel and tire assemblies.		AP40.10-P-4050G
		On vehicles with drum brakes, only detach the front wheels.
	Measure
2	Measure brake lining thickness using vernier caliper.	Model 460, 461; model 463 up to model year 2012 Observe the wear limit to ensure that the values are not exceeded before the next maintenance service.
		Front axle on model 463.272/273/274 up to model year 2012 Brake lining	*BE42.10-P-1001-05W
		Rear axle on model 463.272/273/274 up to model year 2012 Brake lining	BE42.10-P-1001-15T
		Caliper gauge If the wear limit is exceeded, ↓  replace brake linings. After obtaining special order.	Fig 1

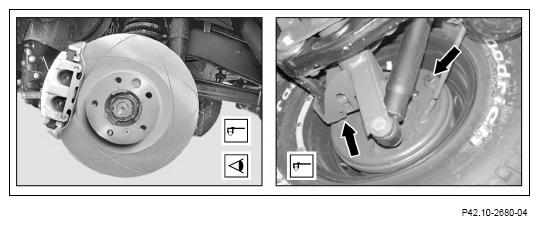

3	Pull stop plugs (arrows) out of check bores and measure brake pad thickness of brake shoes.	Vehicles with drum brakes.
		Observe the wear limit to ensure that the values are not exceeded before the next maintenance service.
		Clearance of brake shoes	*BE42.10-P-1001-13A
		Adjustment value for automatic adjuster	*BE42.10-P-1002-13A
		Model 460, 461; model 463 up to model year 2012 Brake lining thickness	*BE42.10-P-1003-12A
		Model 460, 461; model 463 up to model year 2012 Brake lining wear limit, drum brake	*BE42.10-P-1002-10A
		Caliper gauge If the wear limit is exceeded, ↓ replace brake shoes of drum brakes. After obtaining special order.	Fig 1
	Check
4	Check brake discs for score marks, cracks, corrosion and soiling (e.g. oil, grease).	If a crack length > 25 mm (0.98 inches), gaping cracks or score marks deeper than 0.5 mm (0.02 inches) or severe corrosion is present, ↓ Replace steel brake discs. After obtaining special order. If soiling (e.g. oil, grease) is present, ↓ clean brake discs and replace if necessary. After obtaining special order.
5	Check brake discs for axial runout if necessary.
		Model 460, 461 Model 463	AR42.10-P-0265GG
		up to model year 2012
	Measure
6	Measure brake disc thickness using vernier caliper.	Observe the wear limit to ensure that the values are not exceeded before the next maintenance service.
		Front axle on model 460, 461; model 463 up to model year 2012 brake disc thickness	*BE42.10-P-1001-08C
		Rear axle on model 461; model 463 up to model year 2012 brake disc thickness	*BE42.10-P-1001-09C
		Caliper gauge If the wear limit is exceeded, ↓ replace brake discs. After obtaining special order.	Fig 1
	Install
7	Install wheel and tire assemblies.		AP40.10-P-4050G

CHECK VALUES FOR FRONT AXLE BRAKE LINING

Number	Designation			Model 463.234/239/255/27 2/273/274/275/348
BE42.10-P-1001-05W	Brake lining	Brake pad, new	mm	11
		Pad backing plate	mm	5
		Wear limit	mm	3
		Wear indicator activated (if installed)	mm	3-4

CHECK VALUES FOR FRONT AXLE brake discS

Number	Designation			Model 460, 461, 463 (except 463.234/239/255/260/261/270/271/272/27 3/274/275/276/277/3 48/349) without internally vented brake discs	Model 461 with internally vented brake discs
BE42.10-P-1001-08C	brake disc thickness	New	mm	16	30
		Wear limit	mm	13	27

CHECK VALUES FOR FRONT AXLE brake discS

Number	Designation			Model 463 (except 463.234/239/255/260/261/270/271/272/27 3/274/275/276/277/3 49) with internally vented brake discs	Model 463.260/261/349 except code PL1, model 463.270/271 with internally vented brake discs
BE42.10-P-1001-08C	brake disc thickness	New	mm	30	32
		Wear limit	mm	27	29, 4

CHECK VALUES FOR REAR AXLE brake discS

Number	Designation			Model 461, 463 (except 463.234/239/255/260/261/270/271/272/27 3/274/275/276/277/3 49)	Model 463.260/261/270/27 1/272/349
BE42.10-P-1001-09C	brake disc thickness	New	mm	16	22
		Wear limit	mm	14	20

CHECK VALUES FOR BRAKE SHOES

Number	Designation		Model 460, 461 with drum brakes on the rear axle Model 463 up to model year 2019 with drum brakes on the rear axle
BE42.10-P-1001-13A	Clearance of brake shoes	mm	0, 3 (±0, 1)

CHECK VALUES FOR REAR AXLE BRAKE PAD

Number	Designation			Model 463.234/239/255/27 2/273/274/275/348
BE42.10-P-1001-15T	Brake lining	Brake pad, new	mm	11
		Pad backing plate	mm	5
		Wear limit	mm	4
		Wear indicator activated (if installed)	mm	4-5

CHECK VALUES FOR SERVICE BRAKE

Number	Designation		Model 460, 461 Model 463 (except 463.234/239/255/272/273/274/275/348) up to model year 2019	Model 463.234/239/255/27 2/273/274/275/348
BE42.10-P-1002-10A	Brake lining wear limit, drum brake	mm	3, 5	-

CHECK VALUES FOR BRAKE SHOES

Number	Designation			Model 460, 461 with drum brakes on the rear axle Model 463 up to model year 2019 with drum brakes on the rear axle
BE42.10-P-1002-13A	Adjustment value for automatic adjuster	Installation dimension "a"	mm	82
		Distance "b"	mm	11
		Picture		AR42.10-P-0169-01GG

CHECK VALUES FOR DRUM BRAKE

Number	Designation			Model 460, 461, 463
BE42.10-P-1003-12A	Brake lining thickness	Normal	mm	9, 0
		Repair stage I	mm	9, 5
		Repair stage II	mm	10, 0
		Minimum lining thickness	mm	3, 5
		Pad backing plate	mm	3, 0...3, 5

Fig 1: Identifying Caliper Gauge (140 589 00 19 00)

Courtesy of MERCEDES-BENZ USA
