Removing And Installing Brake Fluid Reservoir - AR42.10-P-0301GW
Model 463
as of model year 2013 up to model year 2019
| Remove/install | |||
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| 1 | Open hood. | AR88.40-P-1000GG | |
| 2 | Release and disconnect electrical connector at brake fluid level switch (S11). | ||
| 3 | Unscrew cap and remove sieve from brake fluid reservoir (1). | ||
| 4 | Suction off brake fluid from brake fluid reservoir (1). | ||
| 5 | Unscrew screw (2). | *BA42.10-P-1002-05B | |
| 6 | Pull brake fluid reservoir (1) out of master brake cylinder. | Collect escaping brake fluid with an absorbent rag. Otherwise damage can occur to the vehicle paint. Seal connections at master brake cylinder. This prevents the ingress of foreign objects. |
|

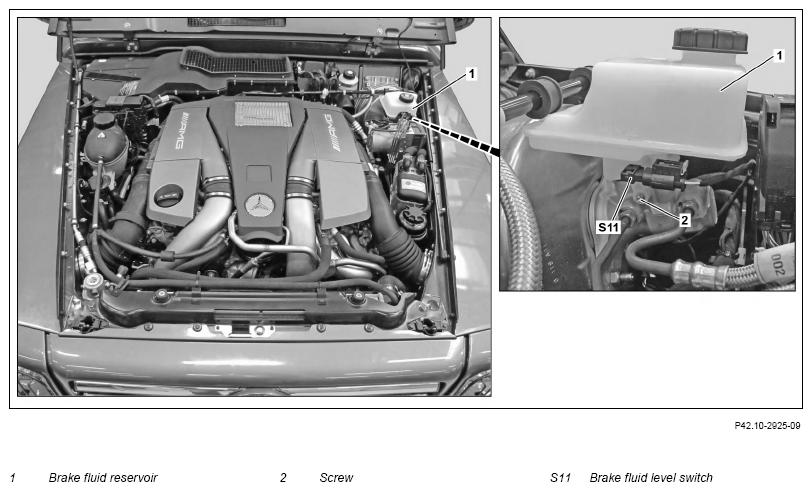

| Fig 2 | |||
| 7 | Install in reverse order. | ||
| Check | |||
| 8 | Check brake system in area of brake fluid reservoir (1) for leak tightness. | ||
| 9 | Check fluid level in brake fluid reservoir (1), and correct if necessary. |
MASTER BRAKE CYLINDER
| Number | Designation | Model 460, 461 Model 463 up to model year 2019 except code 979 (Special protection MB Guard) |
||
|---|---|---|---|---|
| BA42.10-P-1002-05B | Bolt, hydraulic fluid reservoir to master brake cylinder | M6 | Nm | 8 |
