Remove/Install Mechanical Stop Lamp Switch - AR42.10-P-0040XG
Model 463 as of model year 2019
MODIFICATION NOTES
| 27.05.2020 | Position feeler gauge between brake light switch (S9/1) and brake pedal (3). | Operation step 6. |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove bottom trim for instrument panel on driver's side. | AR68.10-P-1501XG | |

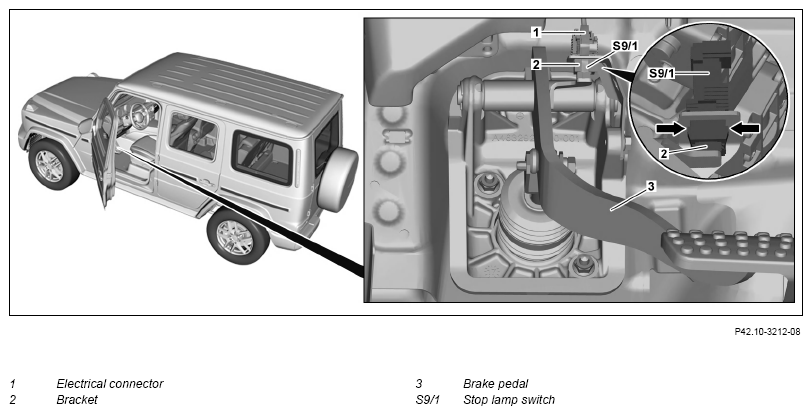

| 2 | Release and disconnect electrical connector (1) at brake light switch (S9/1). | ||
| 3 | Remove brake light switch (S9/1). | ||
| 4 | Press catches (arrows) together and remove holder (2). | ||
| Install | |||
| 5 | Depress brake pedal (3) and insert brake light switch (S9/1) with holder (2). | ||
| 6 | Position feeler gauge between brake light switch (S9/1) and brake pedal (3). | The gap between the brake light switch (S9/1) and the brake pedal (3) must be 2.5 mm. Otherwise faults can occur in the ESP®. |
|
| Fig 2 | |||
| 7 | Depress brake light switch (S9/1) all the way to feeler gauge. | Fig 2 | |
| 8 | Release brake pedal (3), pull back and remove feeler gauge. | Fig 2 | |
| 9 | Connect electrical connector (1) at brake light switch (S9/1). | ||
| 10 | Install bottom trim for instrument panel on driver's side. | AR68.10-P-1501XG |
