Remove/Install Electric Parking Brake Switch - AR42.20-P-0505XG

Model 463

as of model year 2019

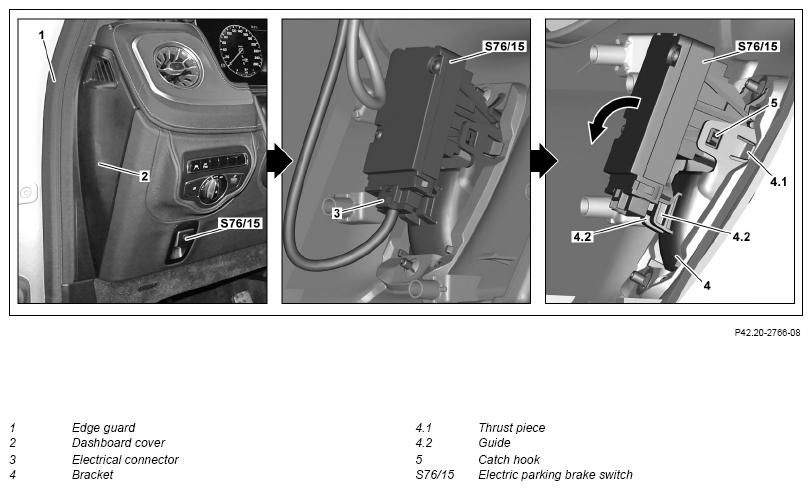

Fig 1: Electric Parking Brake Switch Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Release edge guard (1) on driver's side in area of instrument panel cover (2).
2	Unclip instrument panel cover (2) and remove.	Long wedge	Fig 2
3	Disconnect the electrical connector (3).
4	By pressing the thrust pieces (4.1) at left and right, release catch hooks (5) on holder (4).	Ensure that the catch hooks (5) lock correctly.
5	Swivel electric parking brake switch (S76/15) in direction of arrow and remove upward out of guide (4.2).	Ensure that the pins on electric parking brake switch (S76/15) are seated correctly in the guide (4.2).
6	Install in reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
