Remove/Install Brake Shoes Of Parking Brake - AR42.20-P-0530GW

MODEL 463 as of model year 2013

/model refinement package 2012

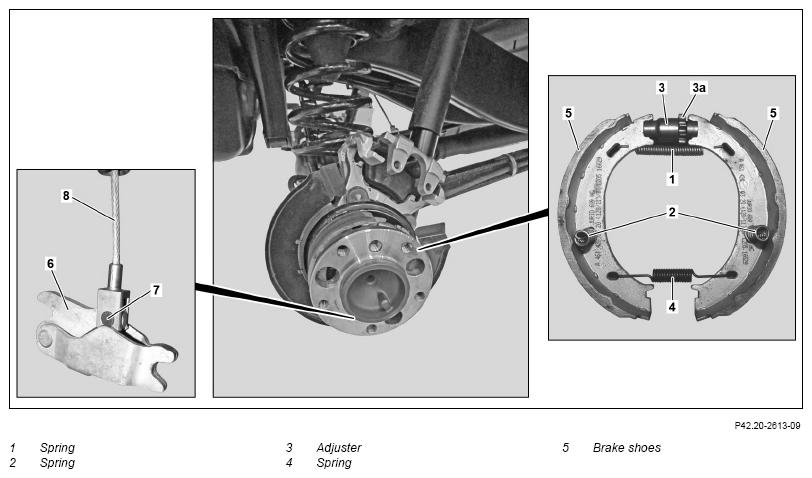

Fig 1: Brake Shoes Of Parking Brake Components Location - Model 463 As Of Model Year 2013

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear axle brake disc		AR42.10-P-0240GW
2	Remove spring (1)	Check spring (1) is correctly seated.
			Fig 2
3	Remove springs (2),		Fig 3
4	Remove brake adjuster (3)
5	Remove spring (4)	Check spring (4) is correctly seated.
6	Remove brake shoes (5)
7	Install in the reverse order
8	Adjust parking brake		AR42.20-P-0540GW

Fig 2: Identifying Removal And Installation Tool (116 589 01 62 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Installation Tool (112 589 09 61 00)

Courtesy of MERCEDES-BENZ USA
