Remove/Install Brake Hoses At Front Axle - AR42.10-P-0024GW

Model 463 (except 463.270/271) as of model year 2013 up to model year 2019

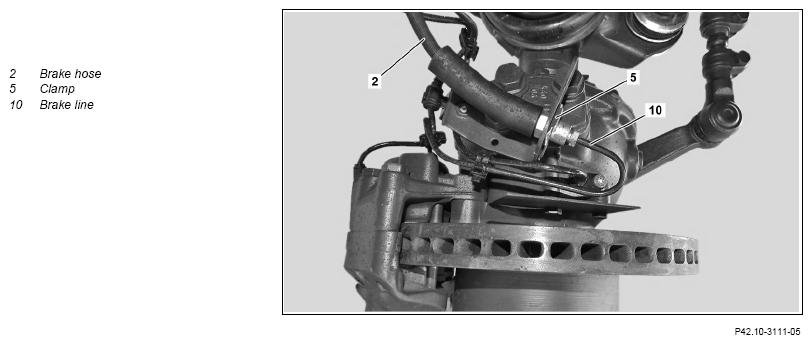

Fig 1: Brake Hoses At Front Axle Components Location - Model 463 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

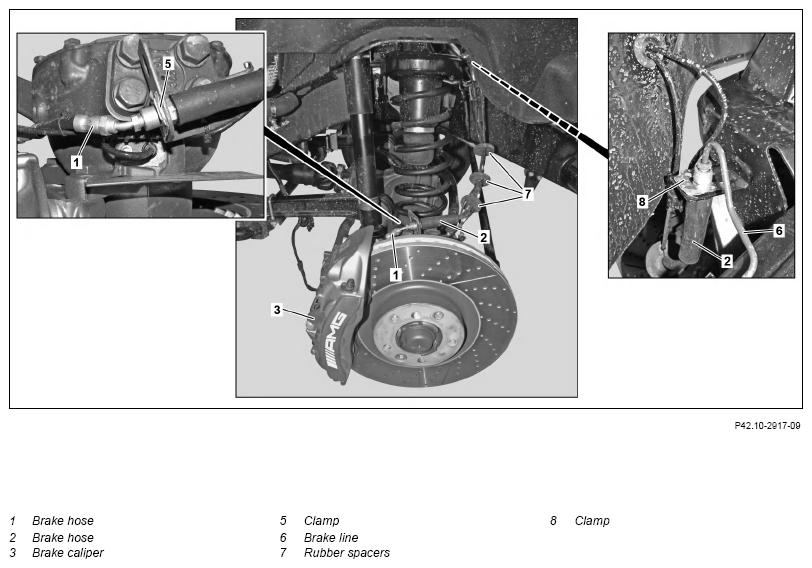

Shown on model 463 as of model year 2013

Shown on model 463 as of model year 2013

Courtesy of MERCEDES-BENZ USA

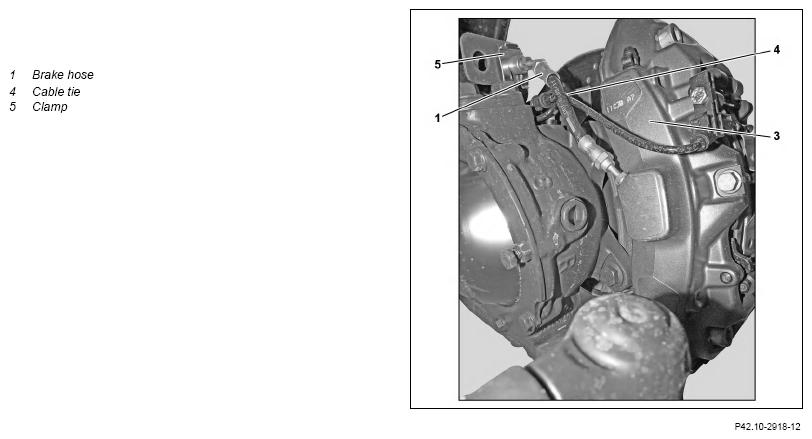

Shown on model 463 as of model year 2016

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove/install
1	Remove front wheel-and-tire assemblies
			AP40.10-P-4050G
	Clean
2	Clean area surrounding connecting points to be opened on the brake system	Before opening the brake system the area around the separation point should be cleaned thoroughly. Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions and a total failure of the brake system. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed-air for cleaning when the brake system is open.
3	Detach brake hose (1) from brake hose (2)	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion. Brake line to front-axle brake hose	*BA42.10-P-1008-04B
4	Detach brake hose (2) from brake line (10)	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion. Brake line to brake hose	*BA42.10-P-1001-04B
5	Collect any escaping brake fluid using a suitable container
6	Seal exposed connections with plugs	Record plug	Fig 2
7	Detach cable tie (4) from brake hose (1)	Replace cable tie (4).
8	Detach brake hose (1) from brake caliper (3)	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion. Brake line to fixed brake caliper	*BA42.10-P-1002-04B
9	Collect any escaping brake fluid using a suitable container
10	Seal exposed connections with plugs	Record plug	Fig 2
11	Detach clamp (5) from brake hose (2)	It must be ensured that the clamp (5) is seated correctly.
12	Pull brake hose (2) out of rubber spacer (7)
13	Detach brake hose (2) from brake line (6)	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion.
		Brake line to brake hose	*BA42.10-P-1001-04B
14	Collect any escaping brake fluid using a suitable container
15	Seal exposed connections with plugs	Record plug	Fig 2
16	Remove clamp (8) from brake hose (2)	It must be ensured that the clamp (8) is seated correctly.
17	Install in the reverse order
18	Bleed brake system	Model 463 (except 463.270/271) as of model year 2013 up to model year 2019	AR42.10-P-0010GW

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
