Install, Remove Automatic Brake Adjuster - AR42.10-P-0169GG

Model 460, 461

with drum brakes on the rear axle

Model 463

up to model year 2019

with drum brakes on the rear axle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Fig 1: Automatic Brake Adjuster Components Location - Model 463 Up To Model Year 2019 With Drum Brakes

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
1	Remove rear wheel
		Model 460, 461 with drum brakes on the rear axle Model 463 up to model year 2019 with drum brakes on the rear axle	AP40.10-P-4050G
2	Remove retaining bolt (122)	Replace safety screw (122).
3	Release parking brake and detach brake drum (119)	If the brake drum (119) cannot be detached, release the brake shoes by turning back the automatic adjuster (53a): ↓
		Adjust automatic brake adjuster.	AR42.10-P-0169-01GG
		Clearance of brake shoes Clearance of brake shoes	*BE42.10-P-1001-13A

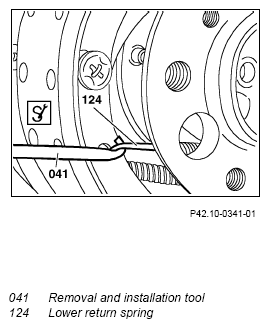

4	Unhook return spring (124) and press back the brake shoes	Removal and installation tool	Fig 2

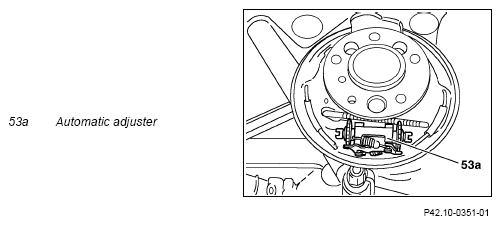

5	Remove bolt (77) and remove automatic adjuster (53a)
	Install
6	Install automatic brake adjuster (53a).	Position automatic adjuster (53a) in the center of the elongated hole in the brake carrier plate. Slightly tighten the bolt (77).
		Apply light coating of grease to bolts (1). Snap transfer elements (2) into notches in bolts (1).
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
7	Insert brake shoe into groove in transfer elements (2) and attach lower return spring (124)	Ensure that the lower return spring (124) is correctly seated.
		Removal and installation tool	Fig 2
8	Mount the brake drum (119) and install new safety-screw (122)	Safety screw, brake drum to wheel hub Safety screw, brake drum to wheel hub	*BA42.10-P-1001-16A
9	Adjust automatic brake adjuster (53a).		AR42.10-P-0169-01GG
		Clearance of brake shoes Clearance of brake shoes	*BE42.10-P-1001-13A
		Adjustment value for automatic adjuster Adjustment value for automatic adjuster	*BE42.10-P-1002-13A
10	Tighten screw/bolt (77)	Bolt, automatic adjuster to carrier plate Bolt, automatic adjuster to carrier plate	*BA42.10-P-1003-16A
11	Install rear wheel
		Model 460, 461 with drum brakes on the rear axle Model 463 up to model year 2019 with drum brakes on the rear axle	AP40.10-P-4050G
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
12	Push down brake pedal several times	Firm resistance should be noticeable at the brake pedal.
	Check
13	Check parking brake adjustment, adjust parking brake if necessary	Model 460, 461 with drum brakes on the rear axle Model 463 (except 463.270/271) up to model year 2013 with drum brakes on the rear axle	AR42.20-P-0540GG

Fig 2: Identifying Removal And Installation Tool (116 589 01 62 00)

Courtesy of MERCEDES-BENZ USA
