Carrying Out Bleeding Operation - AR42.10-P-0010-02XG

Model 463 as of model year 2019

Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Brake fluid notes		AH42.50-P-0001-01A
Notes on repairs to brake system		AH42.00-P-0003-01A
000 588 01 82 00 Filling unit		WS25.00-P-0016B

REAR AXLE FLOATING CALIPER

Number	Designation		Model 461 Model 463 (except 463.270/271/272/273) up to model year 2019	Model 463.270/271/272/273 up to model year 2019
BA42.10-P-1001-17B	Bleed screw on rear axle floating caliper	Nm	15	17

REAR AXLE FLOATING CALIPER

Number	Designation		Model 463 as of model year 2019
BA42.10-P-1001-17B	Bleed screw on rear axle floating caliper	Nm	11

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 463 as of model year 2019
BA42.10-P-1003-10Y	Bleed screw at brake caliper	Nm	16

Courtesy of MERCEDES-BENZ USA

Set venting pressure on filling unit to 2.0 bar.
Remove covers from vent screws on brake calipers (1, 2, 3, 4).
Model 463.276 and 463.277

Two vent screws each are located on the front brake calipers (3, 4).

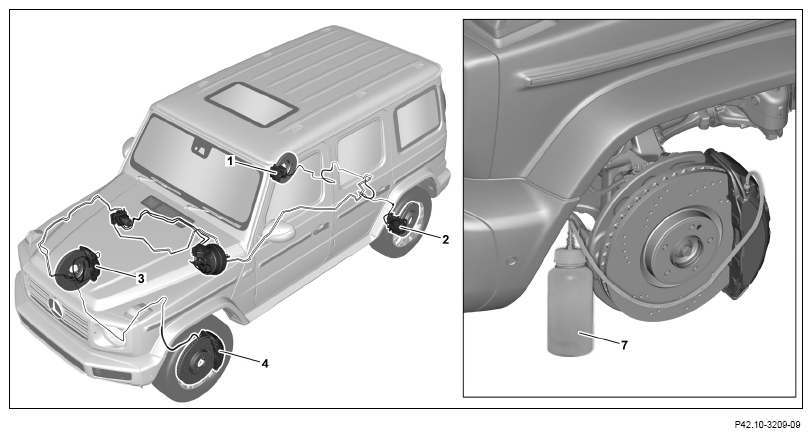

Connect vent hose of bleed bottle (7) to vent screw of brake caliper (1).
Observe brake caliper (1, 2, 3, 4) sequence, when venting the brake system's hydraulic system.

Otherwise, the brake system's hydraulic system will not be vented correctly and the brake system will be inoperative.
Open vent screw.
1. 5.1) Only when bleeding the brake system, after opening the hydraulic system for repair purposes.
  Fully depress brake pedal several times in succession until new brake fluid exits free of bubbles at the vent screw.

  To bleed the brake system correctly it is absolutely essential to pump the brake pedal throughout the entire bleeding process.

  Otherwise brake system malfunctions and a failure of the brake system can occur due to residual air.

  Do not pump the brake pedal in a jerking manner but instead release it slowly.

  Otherwise, the hydraulic system has air in it again.

  Leave vent screw open during the entire pumping procedure.

  The required total quantity of brake fluid is approx. 1.5 l.
2. 5.2) Only when replacing the brake fluid, when the brake system's hydraulic system was not opened beforehand for repair purposes.
  Keep vent screw open until new brake fluid flows out.

  Pumping of the brake pedal is not necessary.

  The required total quantity of brake fluid is approx. 0.75 l.
Close vent screw.
Detach vent hose of bleed bottle (7) from vent screw of brake caliper (1).
Repeat operation steps 3 to 7 successively in the brake caliper (2, 3, 4) sequence again.
Observe brake caliper (1, 2, 3, 4) sequence when venting the brake system's hydraulic system. Otherwise, the brake system's hydraulic system will not be vented correctly and the brake system will be inoperative.

Model 463.276 and 463.277

On the brake calipers (3, 4) open the vent screw that is located right next to the brake hose first. Then open the outer vent screw.
Fit covers of vent screws on brake calipers (1, 2, 3, 4).
