(Adjust Parking Brake - AR42.20-P-0540GI)
Model 461
With disk brakes at the rear axle
Model 463 (except 463.270/271)
up to model year 2013
With disk brakes at the rear axle
| Adjust | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle | AR00.60-P-1000G | |

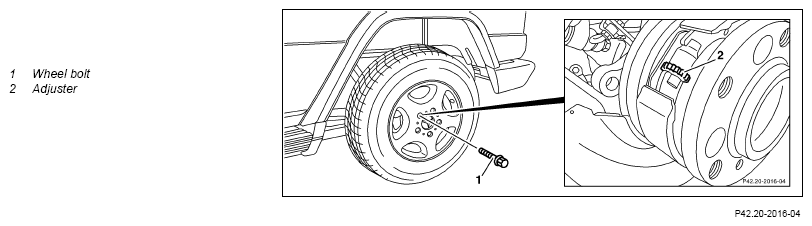

| 2 | Screw out one lug bolt (1) | *BA40.10-P-1001-01D | |
| *BA40.10-P-1002-01D | |||
| 3 | Fully disengage parking brake and turn wheel so that the brake adjuster (2) is operated through the wheel bolt thread opening | ||
| 4 | Continue turning the adjuster (2) until the brake linings are resting against the drum surface | ||
| 5 | Turn brake adjuster (2) back three detents | ||
| 6 | Adjust parking brake on roller dynamometer | Model 461.302/304/332/334/342/344 With disk brakes at the rear axle Model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 up to model year 2013 With disk brakes at the rear axle |
AR42.20-P-0550GG |
| Model 461.217/219/227/229/238/239/249/266/267/321/322/323/326/327/328/329/335/336/337/338/341/365/366/367/368/401/402/403/404/405/450/451/452/454/455/456/458/459 With disk brakes at the rear axle Model 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 With disk brakes at the rear axle |
AR42.20-P-0550GX |
WHEELS
| Number | Designation | Model 460, 461 Model 463 up to model year 2019 |
|
|---|---|---|---|
| BA40.10-P-1001-01D | Wheel bolt to steel rim | Nm | 180 |
WHEELS
| Number | Designation | Model 460, 461 Model 463 up to model year 2019 |
Model 463 as of model year 2019 |
|
|---|---|---|---|---|
| BA40.10-P-1002-01D | Wheel bolt to light alloy rim | Nm | 130 | 150 |
