(Adjust Parking Brake - AR42.20-P-0540GG)
Model 460, 461
with drum brakes on the rear axle
Model 463 (except 463.270/271)
up to model year 2013
with drum brakes on the rear axle
| Check | |||
| 1 | Check brake lining thickness | ||
| Model 460, 461 with drum brakes on the rear axle Model 463 (except 463.270/271) up to model year 2013 with drum brakes on the rear axle If the minimum lining thickness is reached or undershot. ↓ Replace brake shoes. |
AP42.10-P-4253G | ||
| Model 460, 461 with drum brakes on the rear axle Model 463 (except 463.270/271) up to model year 2013 with drum brakes on the rear axle |
AR42.10-P-0165GG | ||
| 2 | Adjust automatic brake adjuster | AR42.10-P-0169-01GG | |
| Clearance of brake shoes Clearance of brake shoes | *BE42.10-P-1001-13A | ||

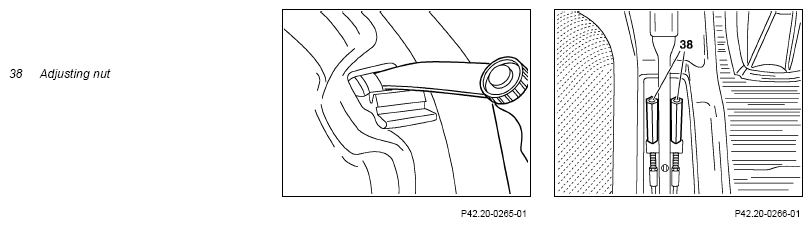

| 3 | Adjust parking brake using adjusting nuts (38) on the roller dynamometer | Model 461.302/304/331/332/334/342/344/345/346/392 with drum brakes on the rear axle Model 463.248 up to model year 2013 with drum brakes on the rear axle |
AR42.20-P-0550GG |
| Model 460, 461.217/219/227/229/238/239/249/266/267/321/322/323/326/327/328/329/335/336/337/338/341/365/366/367/368/401/402/403/404/405/450/451/452/454/455/456/458/459 with drum brakes on the rear axle Model 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 with drum brakes on the rear axle |
AR42.20-P-0550GX |
CHECK VALUES FOR BRAKE SHOES
| Number | Designation | Model 460, 461 with drum brakes on the rear axle Model 463 up to model year 2019 with drum brakes on the rear axle |
|
|---|---|---|---|
| BE42.10-P-1001-13A | Clearance of brake shoes | mm | 0, 3 (±0, 1) |
