(Remove/Install break pads On Floating Brake Caliper - AR42.10-P-0160GG)

Model 461

up to model year 2014

with disk brake at the rear axle

Model 463 (except 463.270/271)

up to model year 2013

except code 979 (Special protection MB Guard)

with disk brake at the rear axle

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	In order to prevent the expansion reservoir overflowing when pressing back the brake pistons.
2	Remove wheel-and-tire assembly
			AP40.10-P-4050G
	Check
3	Check lining thickness of brake linings (4) and check condition of brake discs
			AP42.10-P-4252G
		Model 463 (except 463.270/271) as of model year 2012 up to model year 2013 except code 979 (Special protection MB Guard) with disk brake at the rear axle If the brake linings (4) are worn beyond the permissible wear limit: ↓ Replace brake linings (4). If the brake discs are worn beyond the permissible wear limit: ↓ Replace brake discs.	AP42.10-P-4258G

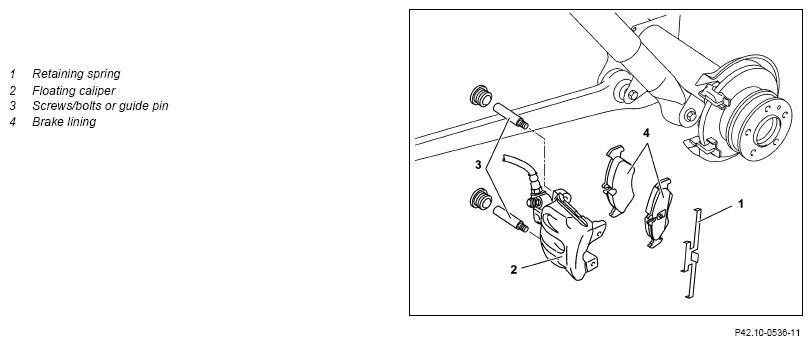

4	Remove retaining spring (1) on floating brake caliper (2)	If installed
5	Remove screws/bolts or guide pin (3)	Model 461 up to model year 2014 with disk brake at the rear axle Model 463 (except 463.270/271) up to model year 2013 except code 979 (Special protection MB Guard) with disk brake at the rear axle Bolt, pilot bushing/guide pin to brake caliper support	*BA42.10-P-1002-17B
6	Remove floating brake caliper (2)
7	To relieve load on brake hose, secure floating brake caliper (2) to vehicle free of tension	Do not detach brake hose, and do not tension or kink. Otherwise the brake hose will be damaged.
8	Remove brake pads (4)	Brake pads (4) must be disposed of as special waste. The local authorities can provide information regarding whether disposal is also permitted as industrial waste similar to domestic waste. Only sets of brake pads (4) approved by Mercedes-Benz may be installed.
9	Press piston back in floating brake caliper (2)	Resetting device	Fig 2
	Clean
10	Clean floating brake caliper (2) using brake caliper brush	Do not damage dust boots. This can otherwise lead to dust and contamination, which could prevent correct operation.
		Brake caliper brush	Fig 1
11	Install in the reverse order
	Check
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
12	Press brake pedal several times and check brake system for leak tightness		AR42.10-P-0100-01A
		Firm resistance should be noticeable at the brake pedal.
13	Check fluid level in brake fluid reservoir, and correct if necessary
	Hydraulic brake system - check fluid level, correct if necessary		AP42.50-P-4210G
