(Remove/Install Brake Pads On Fixed Caliper - AR42.10-P-0161GG)

Model 460, 461

Model 463

up to model year 2013

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Unscrew cap of brake fluid reservoir and extract some brake fluid	In order to prevent the brake fluid reservoir from overflowing when pressing back the brake pistons.
2	Remove the front wheels
			AP40.10-P-4050G
	Check
3	Check the lining thickness of the brake pads (43) and condition of the brake discs
		Model 460	AP42.10-P-4251G
		Model 461	AP42.10-P-4252G
		Model 463 up to model year 2013
		Model 463 as of model year 2012 up to model year 2013 If the brake pads (43) have been worn beyond the permissible wear limit, check brake system using pressure tester for any leaks: ↓	AP42.10-P-4258G
		Model 460, 461 Disk brakes on front axle Model 463 (except 463.270/271) up to model year 2013 except code 979 (Special protection MB Guard) Disk brakes on front axle	AR42.10-P-0015GG
		Model 463.236/248 with code (979) Special protection version	AR42.10-P-0014GS

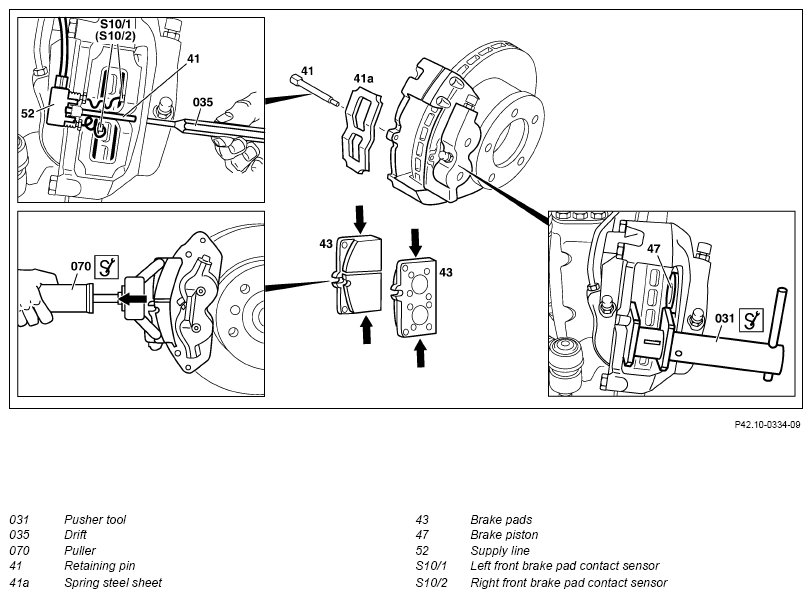

4	Detach left front brake pad contact sensor (S10/1) or right front brake pad contact sensor (S10/2) from feed line (52)
5	Drive out retaining pin (41) using a drift (035)	Drive in retaining pin (41) up to end stop.
6	Remove spring steel sheet (41 a)

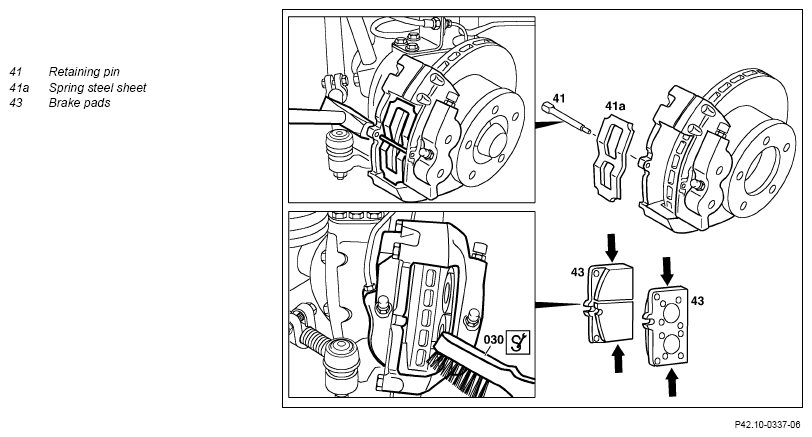

7	Pull out brake pad (43) using extractor (070)	If brake disc, brake pads (43) are worn push back beforehand with pusher tool (031). Brake pads (43) are to be disposed of as special waste. The local authorities can provide information regarding whether disposal is also permitted as industrial waste similar to domestic waste. Only brake pads (43) approved by Mercedes-Benz may be installed as a set. Apply thin coating of brake pad paste to side areas (arrows) of brake pads (43).
		Brake pad paste replaced by: A 001 989 94 51	*BR00.45-Z-1003-06A
		Resetting device	Fig 2
		Puller	Fig 1
8	Remove left front brake pad contact sensor (S10/1) or right front brake pad contact sensor (S10/2) and check for signs of damage	Replace faulty contact sensors.
9	Secure pair of opposing brake pistons using plastic wedges to prevent them from slipping out	Wedge	Fig 3
10	Press back the other pair of opposing brake pistons using the pusher tool (031)	Do not bend heat shield. If brake piston (47) is sluggish: ↓ Repair fixed brake caliper on front axle.
			AR42.10-P-0150GG
		Resetting device	Fig 2
11	Remove plastic wedges and push back second pair of brake pistons
	Clean
12	Clean guide of brake pads (43)	Do not damage dust boots. Otherwise dirt may enter the boot whereupon the function will no longer be given.
13	Install in the reverse order
	Check
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
14.1	Press brake pedal several times and check brake system for leak tightness	Except model 463.236/248 with code (979) Special protection version Firm resistance should be noticeable at the brake pedal.
14.2	Inspect braking system for proper operation and leaks	Model 463. 236/248 with code (979) Special protection version
			AR42.10-P-0014GS
15	Check fluid level in the brake fluid reservoir, correct if necessary
	Hydraulic brake system - check fluid level, correct if necessary		AP42.50-P-4210G
