Overview Of System Components Of ADAPTIVE BRAKE - GF42.47-P-9996GWM
Model 463 (except 463.342) as of model year 2019

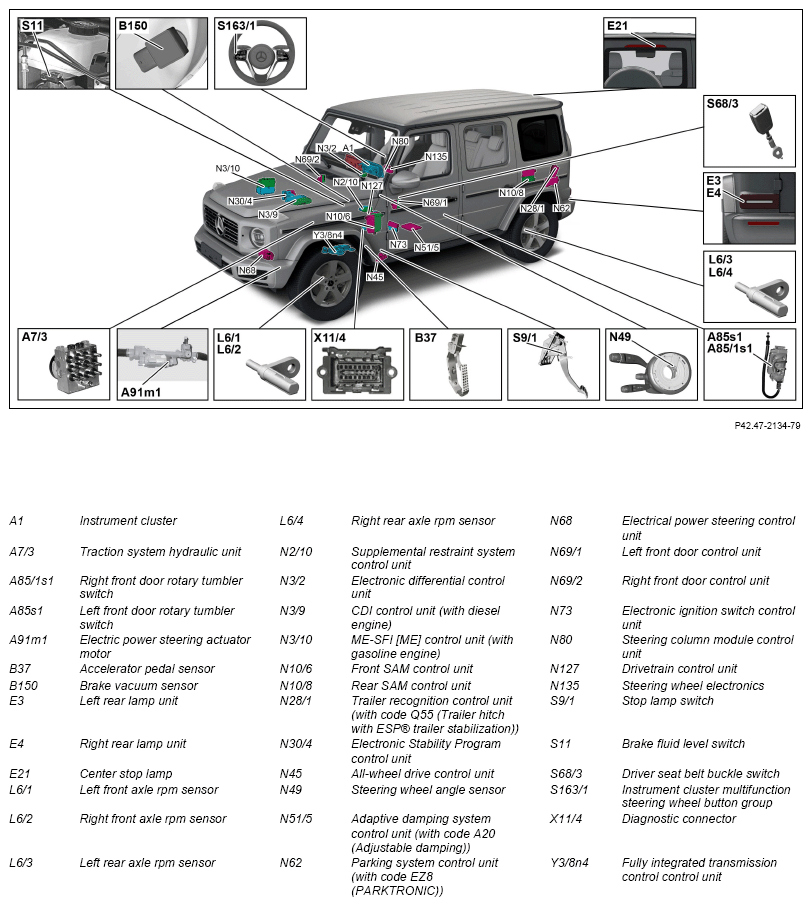

Overview of system components
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Electronic differential control unit, component description | Model 463 with transmission 725.0 as of model year 2019 N3/2 |
GF28.19-P-3221VGG | |
| Component description for CDI control unit | Model 463 with engine 656.9 as of model year 2019 N3/9 |
GF07.16-P-6000OIB | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 176.9, 177.9 as of model year 2019 N3/10 |
GF07.61-P-6000MNH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010GWM | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030GWM | |
| Component description for trailer recognition control unit | N28/1 | GF31.19-P-4050GWM | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GWM | |
| All-wheel drive control unit, component description | Model 463 with transmission 725.0 as of model year 2019 N45 |
GF28.19-P-3211VGG | |
| Component description for adaptive damping system control unit | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N51/5 |
GF32.32-P-1010GWM | |
| Parking system control unit, component description | Model 463 (except 463.342) as of model year 2019 with code EZ8 (PARKTRONIC) N62 |
GF54.65-P-5004GWM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GWM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GWM | |
| Drivetrain control unit, component description | Model 463 with engine 656.9 as of model year 2019 N127 |
GF54.21-P-2141OIB | |
| Model 463 with engine 176.9, 177.9 as of model year 2019 N127 |
GF54.21-P-2141MNH | ||
| Component description for fully integrated transmission control unit | Model 463 with transmission 725.0 as of model year 2019 Y38n4 |
GF27.60-P-5165ANE | |
| Table of contents for function description of ADAPTIVE BRAKE | GF42.47-P-0998GW |
