Overview Of System Components Of ADAPTIVE BRAKE - GF42.47-P-9996GW
Model 463 (except 463.342) as of model year 2013 up to model year 2019
Model 463.342

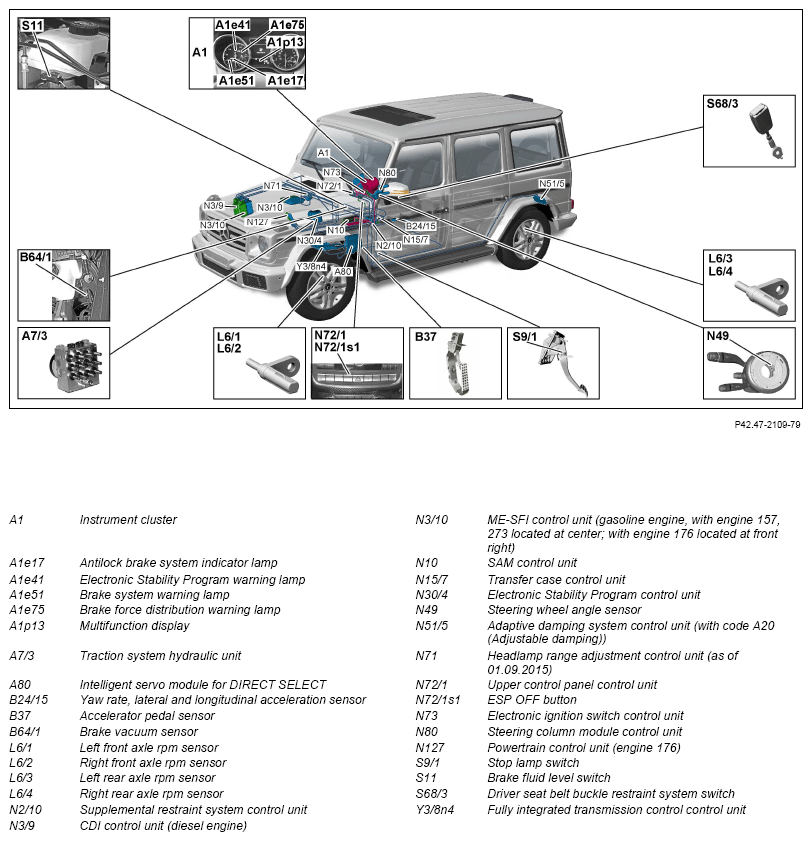

Overview of system components

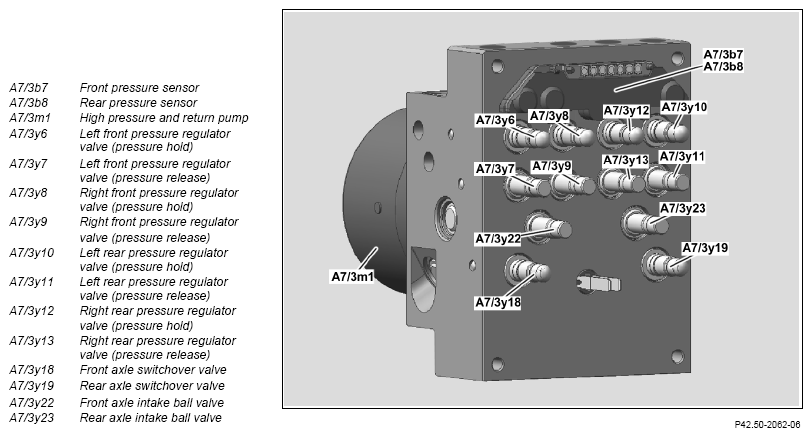

Illustration shows traction system hydraulic unit (with code EZ9 (DISTRONIC PLUS))
Model 463 (except 463.342) as of model year 2013 up to model year 2019 except code EZ9 (DISTRONIC PLUS)
Model 463.342 except code EZ9 (DISTRONIC PLUS)
The front axle brake pressure sensor (A7/3b1) is not shown here.
| Component description for instrument cluster | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 A1 |
GF54.30-P-6000GW | |
| Component description for intelligent servo module for DIRECT SELECT | Model 463 (except 463.342) with transmission 722.9 as of model year 2013 up to model year 2019 Model 463.342 with transmission 722.9 as of model year 2013 A80 |
GF27.19-P-4020AHG | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for CDI control unit | Model 463 (except 463.342) with engine 642.8 as of model year 2013 up to model year 2019 Model 463.342 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of model year 2013 up to model year 2019 N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 176.9 as of model year 2016 up to model year 2019 N3/10 |
GF07.61-P-6000MNF | ||
| Model 463 with engine 273.9 as of model year 2013 up to model year 2019 N3/10 |
GF07.61-P-6000MLJ | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description of transfer case control unit | Model 463 with transmission 722.9 as of model year 2013 up to model year 2019 N15/7 |
GF28.19-P-3200VGE | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Component description for adaptive damping system control unit | Model 463 as of model year 2016 up to model year 2019 with code A20 (Suspension with Adaptive Damping system) N51/5 |
GF32.32-P-1010GW | |
| Component description of headlamp range adjustment control unit | Model 463 as of model year 2016 up to model year 2019 N71 |
GF82.10-P-2112GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 up to model year 2019 N127 |
GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 up to model year 2016 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of ADAPTIVE BRAKE | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 |
GF42.47-P-0998GW |
