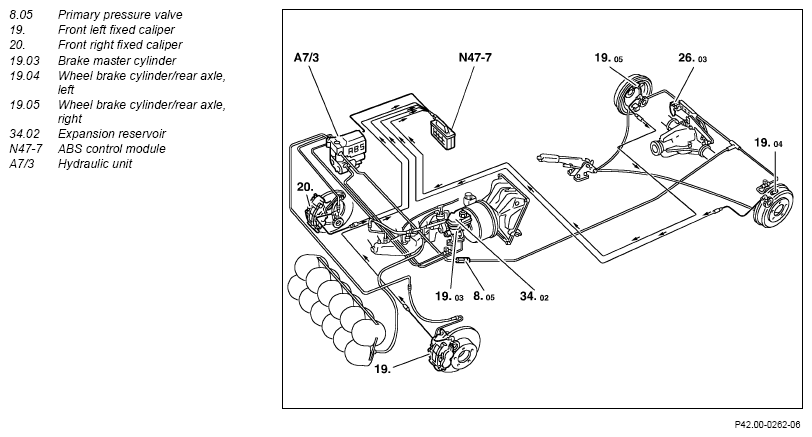

Anti-Lock Brake System (ABS), Location Of Hydraulic Components - GF42.30-P-0003-08GG

Model 463

G13668445

Courtesy of MERCEDES-BENZ USA
