Anti-Lock Brake System (ABS), Location Of Electrical/Electronic Components - GF42.30-P-0003-09GG

Model 463

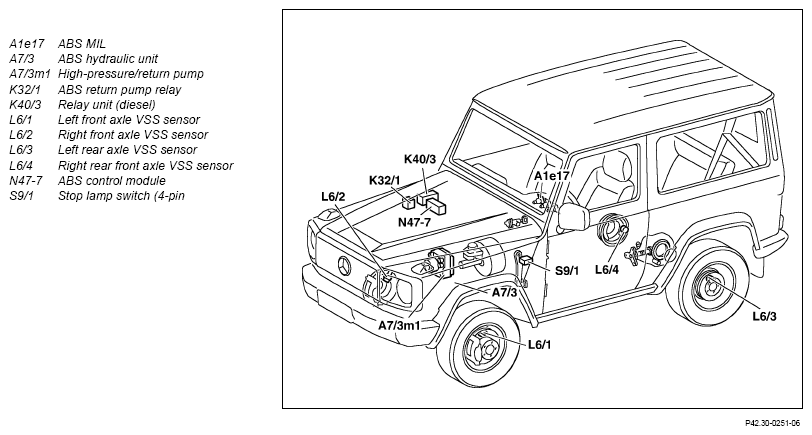

ABS four-channel system

Courtesy of MERCEDES-BENZ USA

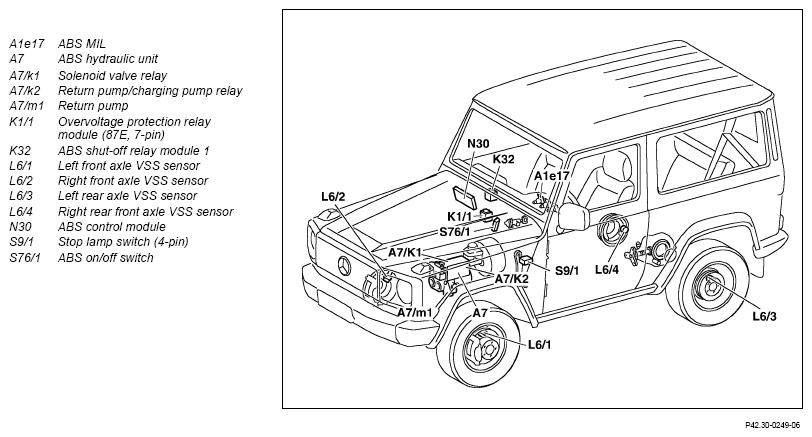

ABS three-channel system except models 463.208/230/231 as of 09.1996

Courtesy of MERCEDES-BENZ USA

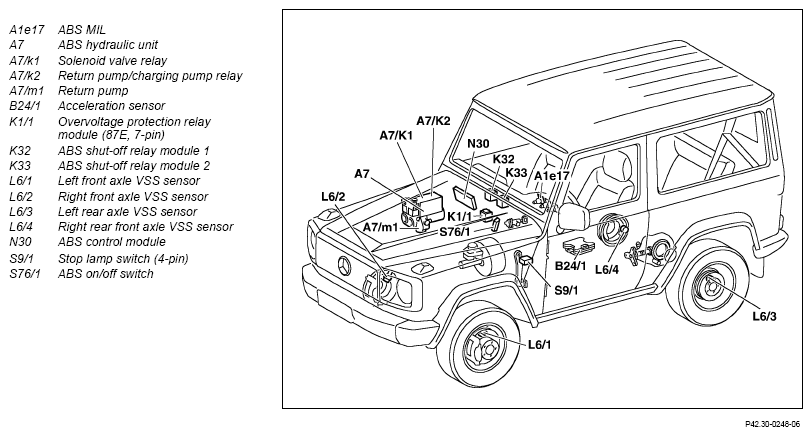

ABS Three-channel system in models 463.308/330/331

Courtesy of MERCEDES-BENZ USA
