(Wheel Brake Cylinder, Location/Task/Design - GF42.10-P-3103GG)
MODEL 460, 461.217/219/227/229/238/239/249/266/267/302/321/322/323/326/327/328/329/331/332/335/336/337/338/341/342/345/365/366/367/368/392/401/402/403/404/405/450/451/452/454/455/456/458/459, 463 up to 5/31/12
Location

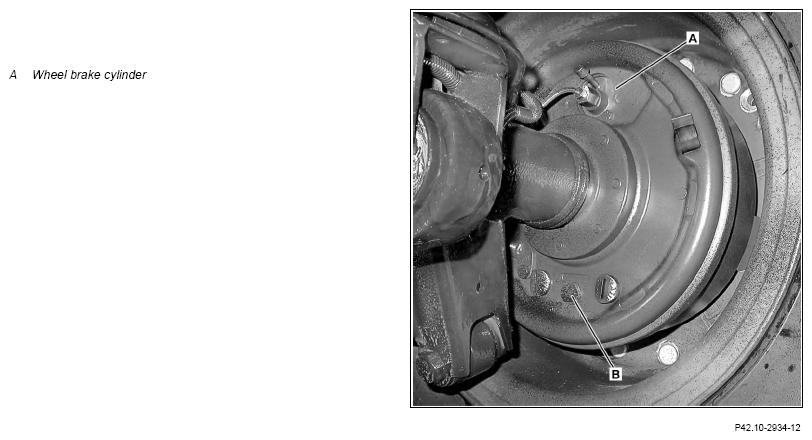

The wheel brake cylinders are fastened at the rear axle (except model 461.392) or at the rear axles (model 461.392) on the right and left on the corresponding brake anchor plate.
Task
Transfer of the pressure generated in the master brake cylinder through the pistons on the brake shoes.
A special maintenance service is not required.
Body
