(Location/Task/Function Of Acceleration Sensor - GF42.30-P-4525GG)
MODEL 463 up to 31.8.93

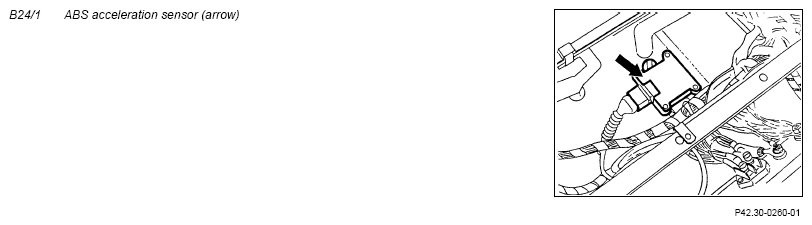

| Location | On center console under the shift lever cover | ||
| Task | Recognition of the driving situation of the vehicle | ||
| Function | The acceleration sensor records the driving situation of the vehicle and transmits a signal to the ABS control module. From an acceleration of 0.45 g the brake-power distribution is changed from the front to the rear axle (normally 2/3 front 1/3 rear) and the braking force at the rear axle is reduced. |
