(ABS Hydraulic Unit - GF42.30-P-4000GG)

MODEL 463.### ## up to 127356 up to 31.8.01 with CODE (B02) ABS brake system

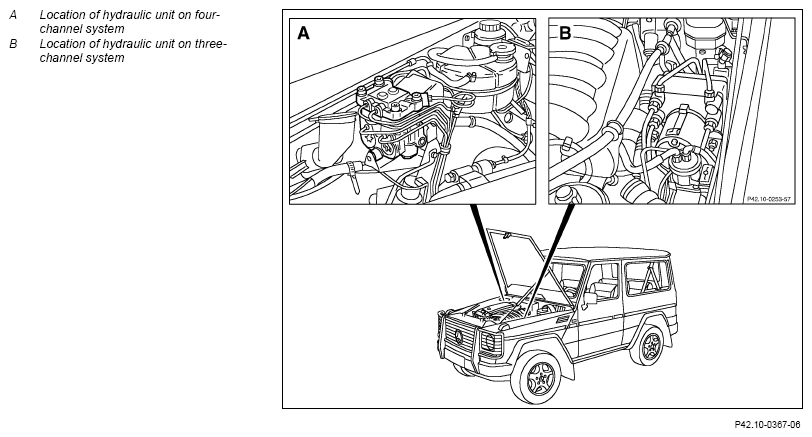

G13668462Courtesy of MERCEDES-BENZ USA
  Location In right or left of engine compartment
  Task The ABS hydraulic unit carries out the control functions of the braking moment control circuit
REFER TO BASIC KNOWLEDGE Design of ABS hydraulic unit   GF42.30-P-4000-01GG
REFER TO BASIC KNOWLEDGE Function of ABS hydraulic unit   GF42.30-P-4000-02GG
