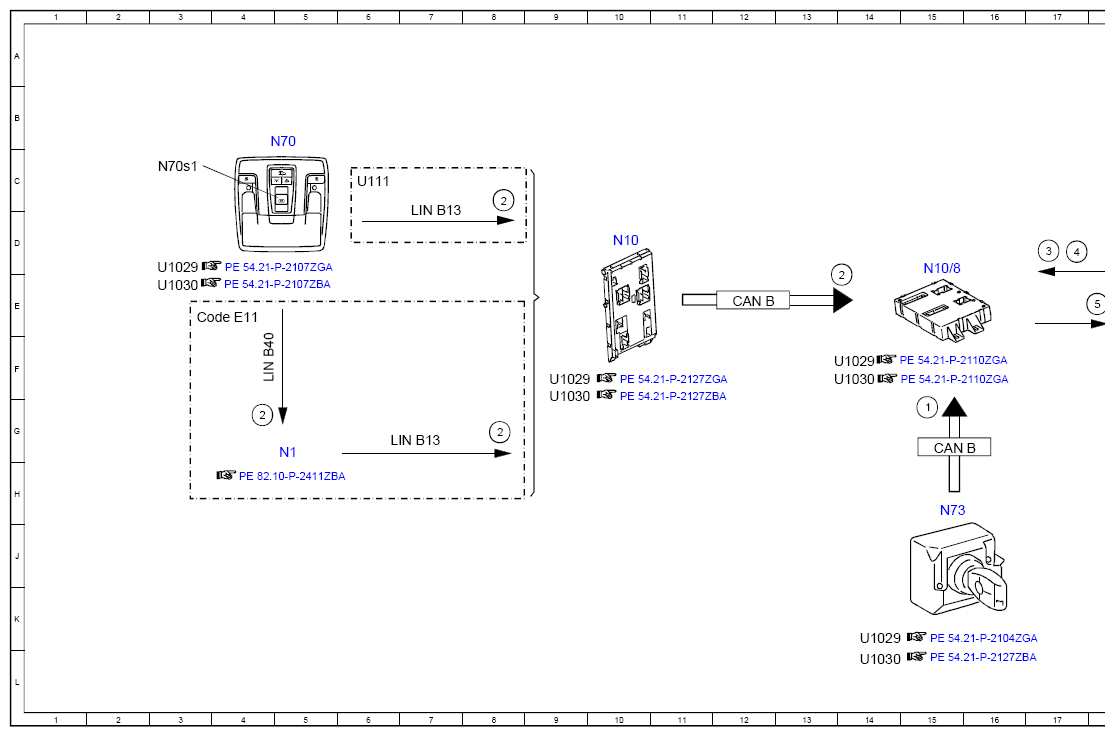

Electrical Function Schematic For Sliding Roof - PE77.20-P-2054-97ZGA
Model 463 as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof)
Model 463 as of model year 2013 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15G |
| 2 | Roof system switch, status | 8D |
| 2 | Roof system switch, status | 14E |
| 2 | Roof system switch, status | 4G |
| 2 | Roof system switch, status | 8G |
| 3 | Roof system "Forward/back" limit switch, status | 17D |
| 4 | Roof system "Raise/lower" limit switch, status | 17D |
| 5 | Roof system drive unit, actuation | 20E |
| 5 | Roof system drive unit, actuation | 18E |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 15G |
| Code E11 | Stealth lights with convoy marking | 3E |
| K66/1 | Roof system "Open" relay | 18E |
| K66/2 | Roof system "Close" relay | 18F |
| LIN B13 | Roof LIN | 7D |
| LIN B13 | Roof LIN | 7G |
| LIN B40 | Stealth lights LIN | 4F |
| M12 | Roof system drive unit | 21D |
| M12m1 | Roof motor | 21E |
| M12s1 | Roof system "Forward/back" limit switch | 20D |
| M12s2 | Roof system "Raise/lower" limit switch | 20D |
| N1 | Stealth lights control unit | 5G |
| N10 | SAM control unit | 10D |
| N10/8 | Rear control unit | 15D |
| N70 | Overhead control panel control unit | 4B |
| N70s1 | Tilting/sliding roof switch | 3C |
| N73 | Electronic ignition switch control unit | 15H |
| U1029 | Not valid for model 463.342 | 9F |
| U1029 | Not valid for model 463.342 | 14K |
| U1029 | Not valid for model 463.342 | 13F |
| U1029 | Not valid for model 463.342 | 3D |
| U1030 | Valid for model 463.342 | 9G |
| U1030 | Valid for model 463.342 | 14L |
| U1030 | Valid for model 463.342 | 13F |
| U1030 | Valid for model 463.342 | 3E |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 6C |
