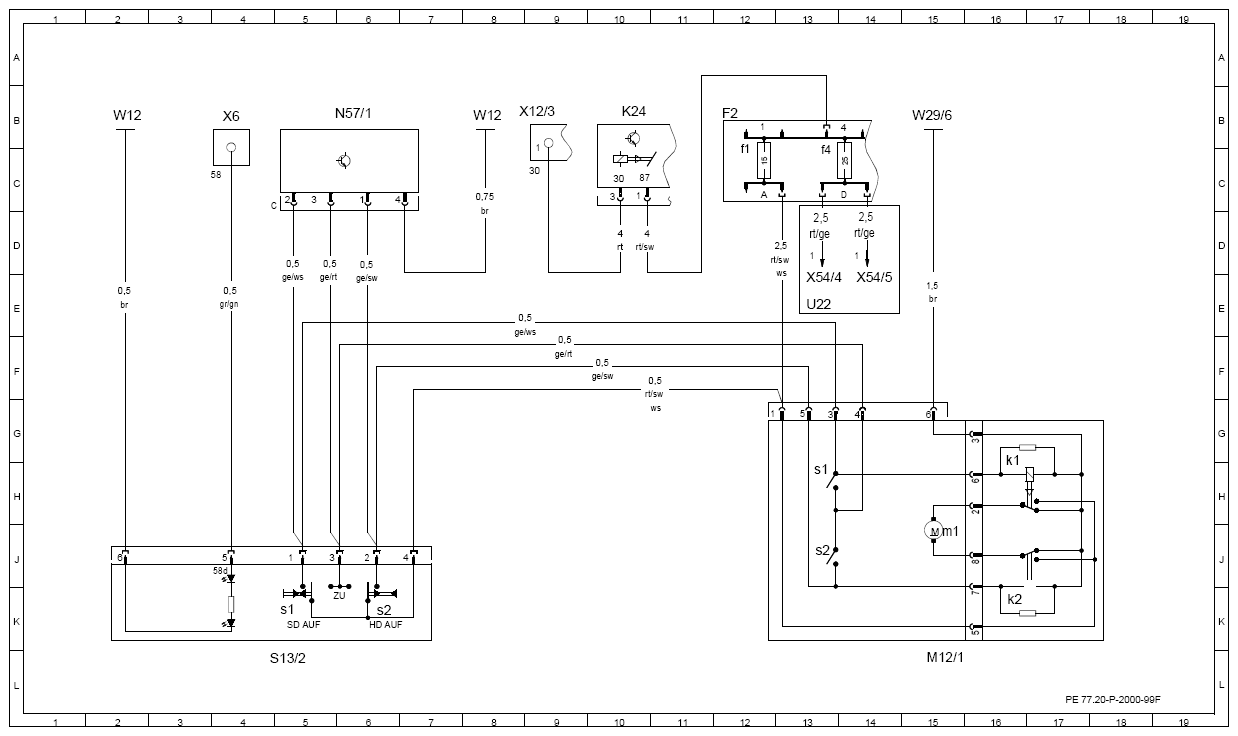

(Wiring Diagram Of Tilting/Sliding Roof (SR) - PE77.20-P-2000-99F)
MODEL 463.### 1# as of 1.6.98 up to 31.5.12 with CODE (D27) Power tilting/sliding roof Left-hand steering
| Code: | Designation: | Position: |
|---|---|---|
| F2 | Fuse box (8 fuses) | 12C |
| F2f1 | Fuse 1 | 12C |
| F2f4 | Fuse 4 | 13C |
| K24 | Comfort shift relay | 10C |
| M12/1 | Tilting/sliding roof | 15K |
| M12/1k1 | Roof fore/aft relay 1 | 17G |
| M12/1k2 | Roof raise/lower relay 1 | 17K |
| M12/1m1 | Tilting/sliding roof motor | 15J |
| M12/1s1 | Sliding position "open" microswitch | 13H |
| M12/1s2 | Tilt position "open" microswitch | 13J |
| N57/1 | Convenience feature control unit | 6B |
| S13/2 | Tilting/sliding roof switch | 5K |
| S13/2s1 | Roof forward/back | 5K |
| S13/2s2 | Roof raise/lower | 6K |
| U22 | Valid for seat adjustment | 18G |
| W12 | Ground (center console) | 3C |
| W12 | Ground (center console) | 11C |
| W29/6 | Ground (right rear pillar) | 21C |
| X12/3 | Circuit 30, 15, 61 terminal block (3-pin) | 12C |
| X54/4 | Seat adjustment feed connector (4-pin) | 18F |
| X54/5 | Right front seat/seat belt extender connector | 19F |
| X6 | Circuit 58 terminal block (2-pin) | 5C |
