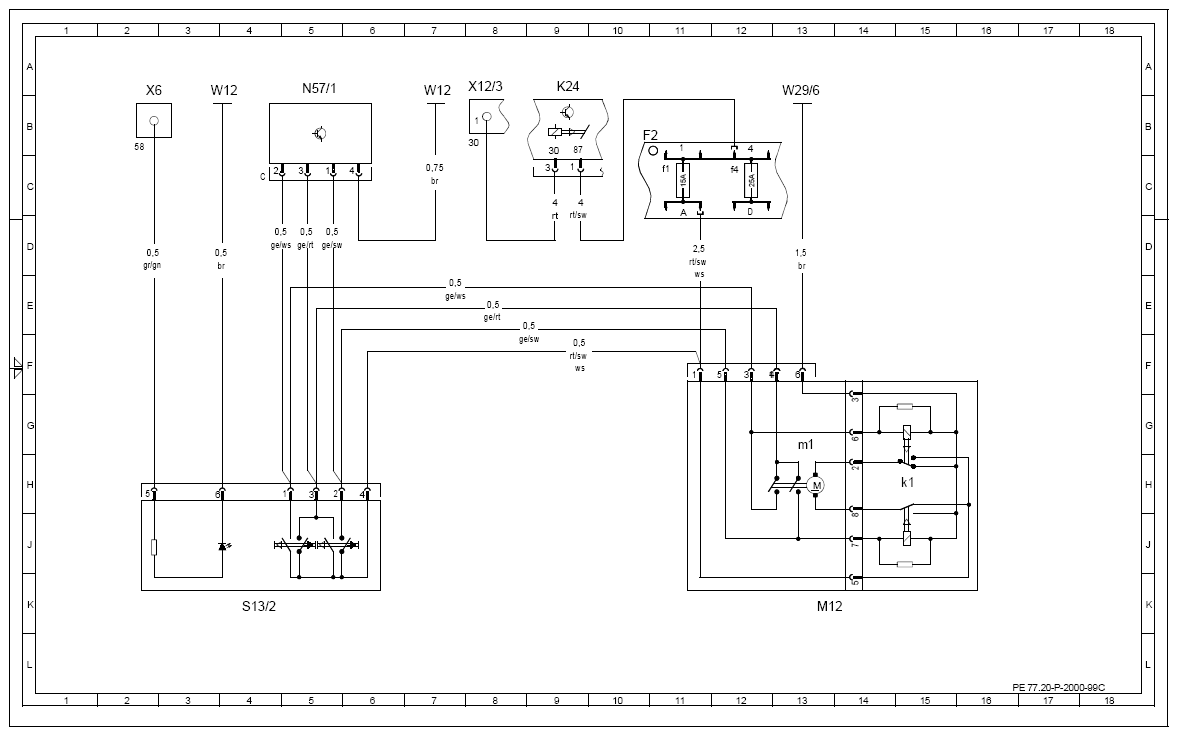

(Wiring Diagram Of Tilting/Sliding Roof (SR) - PE77.20-P-2000-99C)
MODEL 463 up to 31.5.98 with CODE (D27) Power tilting / sliding roof
| Code: | Designation: | Position: |
|---|---|---|
| F2 | Fuse box (8 fuses) | 11C |
| F2f1 | Fuse 1, circuit 30 | 11C |
| F2f4 | Fuse 4, circuit 30 | 12C |
| K24 | Convenience feature relay | 13B |
| M12 | Tilting/sliding roof (SR) | 13K |
| M12k1 | Tilting/sliding roof (SR) relay | 15H |
| M12m1 | Tilting/sliding roof (SR) motor | 13G |
| N57/1 | Convenience relay control module | 7B |
| S13/2 | Tilting/sliding roof (SR) switch | 6P |
| W12 | Ground (center console) | 5B |
| W12 | Ground (center console) | 10B |
| X12/3 | Terminal block circuit 30, 15, 61 (3-pin) | 11B |
| X6 | Terminal block circuit 58 (2-pin) | 4B |
