Remove/Install Tilting/Sliding Roof Motor - AR77.20-P-3010A

Model 463 (except 463.244/245/247/248/249/322/323/332/333) up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Remove trim from tilting/sliding roof	Remove/install paneling on tilting/sliding roof	AR77.20-P-0500G
	Remove tilting/sliding roof cable	Remove/install cable	AR77.20-P-1400A

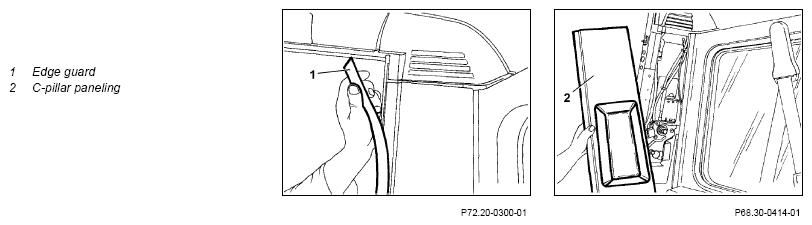

	Detach edge guard (1) from the left rear-end door pillar
	Remove trim (2) of the left rear-end door pillar

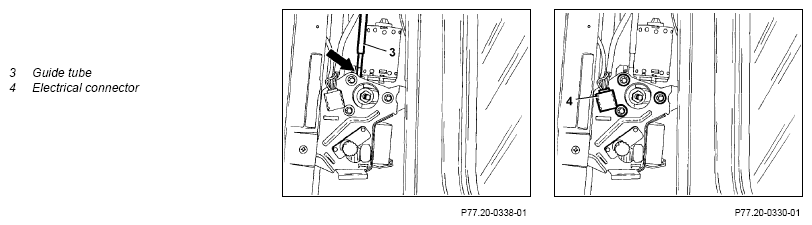

	Remove guide tube (3) from transmission (arrow)	During installation, ensure that the raised bead on the pipe is inserted in the groove on the transmission.
	Disconnect electrical connection (4)
	Remove engine with carrier plate
	Install in the reverse order
	Carry out function check
