Remove/Install And Adjust Wind Deflector On Tilting/Sliding Roof - AR77.20-P-2499GW
Model 463 (Except 463.202)/Facelift 2012

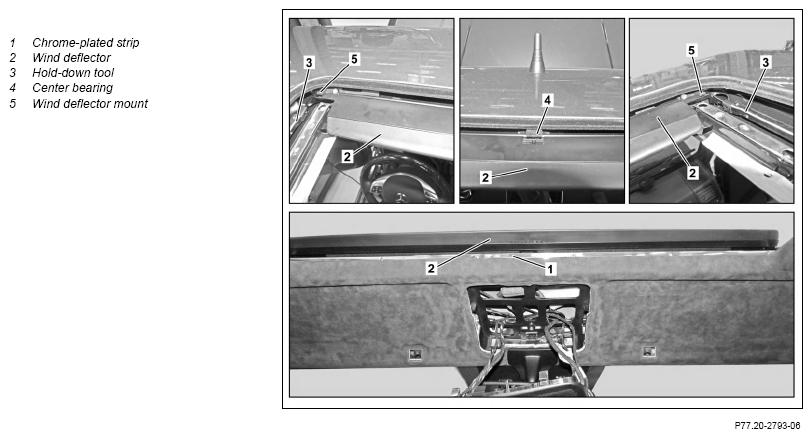

Fig 1: Wind Deflector On Tilting/Sliding Roof Components Location - Model 463 (Except 463.202)/Facelift 2012
| Remove/install | |||
| 1 | Open tilting/sliding roof | ||
| 2 | Unscrew the screws on the chrome strip (1) and remove the chrome strip (1) | ||
| 3 | Remove hold-down device (3) from rear bearing | ||
| 4 | Pull the hold-down device (3) backwards out of the wind deflector (2) | ||
| 5 | Pull the wind deflector (2) out of the center bearing (4) | ||
| 6 | Use a suitable tool to carefully press the wind deflector (2) with the bearing wind deflector (5) out of the shaft on the left and right | ||
| 7 | Remove wind deflector (2) upward | ||
| 8 | Install in the reverse order | ||
| Adjust | |||
| 9 | Carry out a functional test of the sunroof or wind deflector (2) | ↓ |
|
| 10 | Check the wind deflector (2) by moving it back and forth | ↓ |
|
| 11 | Perform a functional test of the tilting sunroof or wind deflector (2) during a test drive at approx. 100 km / h |
