Overview Of System Components Of Sliding Roof - GF77.20-P-9996GW
Model 463 as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof)
Model 463 as of model year 2013 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof)

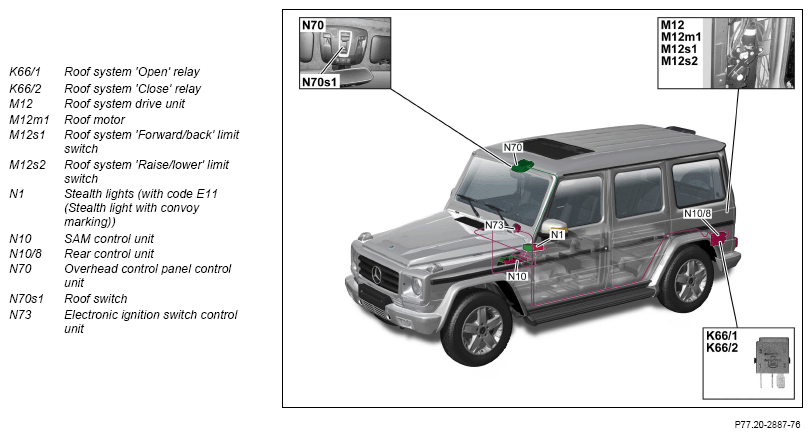

Shown on model 463.23
| Stealth lights control unit, component description | Model 463 as of model year 2013 with code E11 (Blackout lighting with convoy light) with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) N1 | GF82.10-P-2021GW | |
| SAM control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463.342 as of model year 2017 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463 as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) N10 | GF54.21-P-4157GW | |
| Rear control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463.342 as of model year 2017 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463 as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) N10/8 | GF54.21-P-4134GW | |
| Component description for overhead control panel control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) Model 463 (except 463.342) as of model year 2013 up to model year 2019 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463.342 as of model year 2017 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) except code ZD4 (Vehicle for non-civilian operations) Model 463.342 as of model year 2017 with code F16 (Tilting/sliding sunroof, electric) with code ZD4 (Vehicle for non-civilian operations) except code F15 (Sliding sunroof) N70 |
GF82.20-P-5216GW | |
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463.342 as of model year 2017 with code F16 (Tilting/sliding sunroof, electric) except code F15 (Sliding sunroof) Model 463 as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) N73 | GF80.57-P-6001GW | |
| Table of contents for function description of sliding roof | GF77.20-P-0993GW |
