Remove/Install Door Sill Molding - AR68.30-P-4100XG
Model 463
as of model year 2019

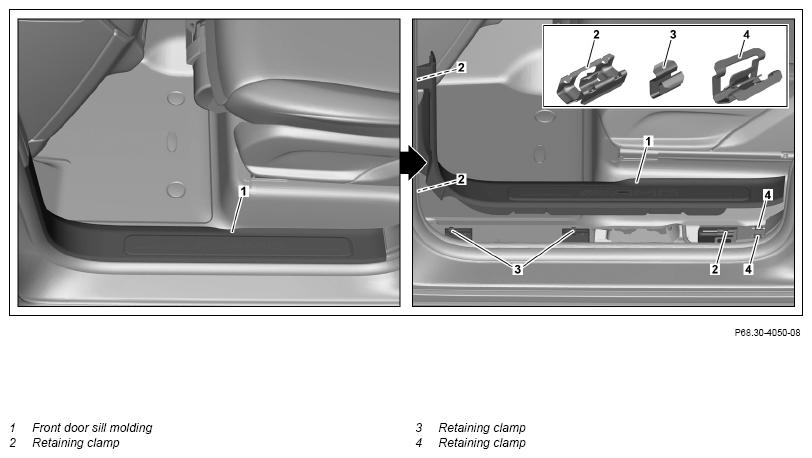

Shown on front left side of vehicle
Shown on left side of vehicle
| Remove/install | |||
| 1 | Unclip front door sill (1) from the retaining clamps (2, 3, 4) starting at the rear working forward. | If the retaining clamps (2, 3, 4) are damaged, ↓ Replace respective retaining clamps (2, 3, 4). |
Fig 1 |
| 2 | Disconnect the electrical connector. | If installed. | |
| 3 | Remove front door sill (1). | ||
| 4 | Unclip rear door sill (5) from the retaining clamps (3, 4) starting at the front working toward the rear. | If the retaining clamps (3, 4) are damaged, ↓ Replace respective retaining clamps (3, 4). |
Fig 1 |
| 5 | Disconnect the electrical connector. | If installed. | |
| 6 | Remove rear door sill (5). | ||
| 7 | Install in reverse order. |
