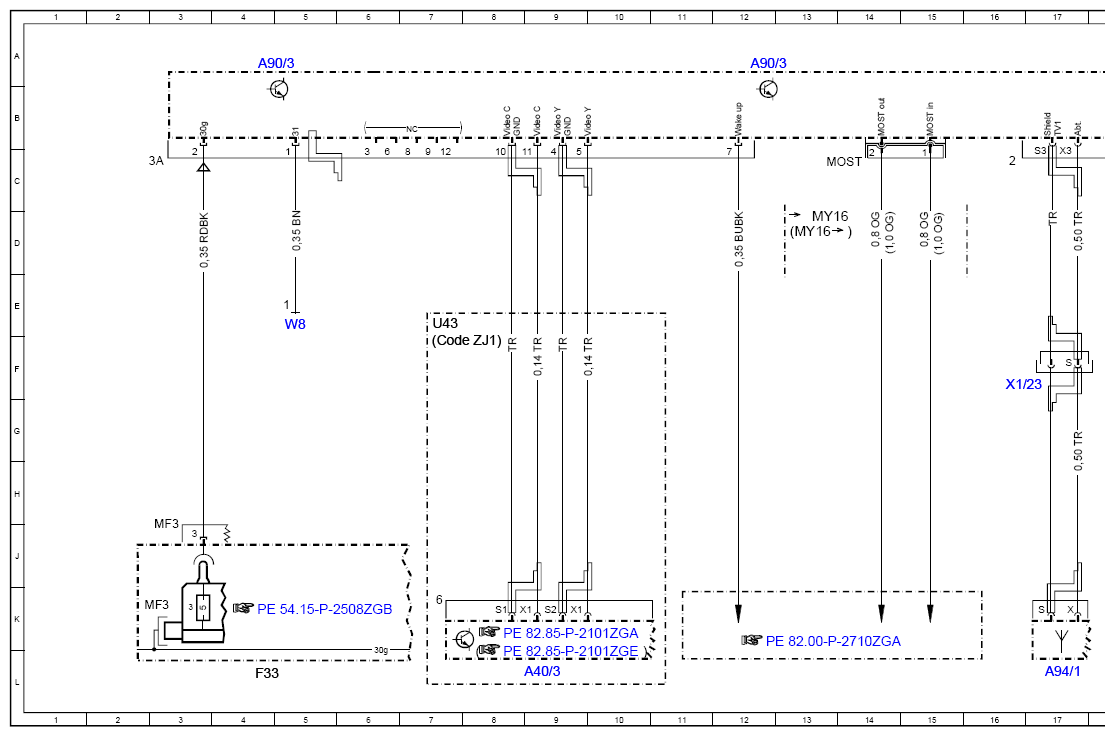

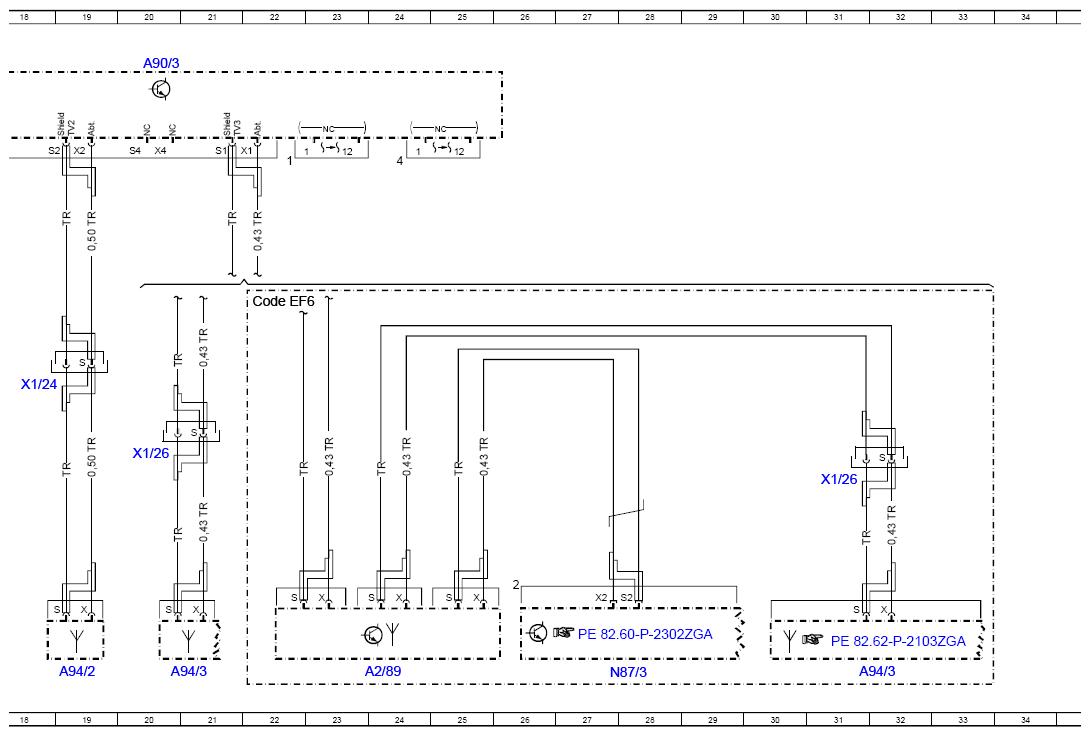

Wiring Diagram Of TV Tuner - PE82.60-P-2220-97ZGA
Model 463
as of model year 2013 up to model year 2017
with code EM8 (TV tuner)
/YoM 12 model refinement package, control unit A90/3
| Code: | Designation: | Position: |
|---|---|---|

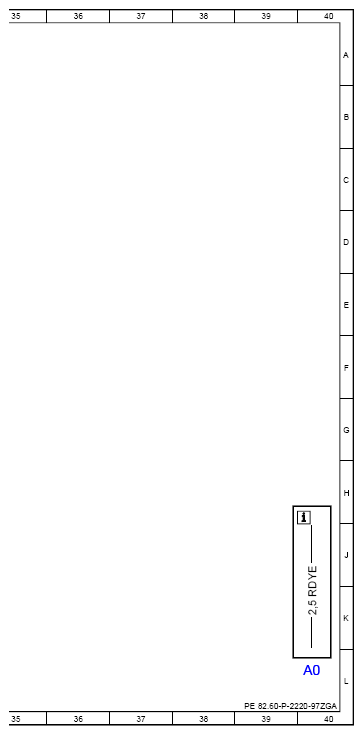

| A0 | Color code key | 40L |
| A2/89 | TV antenna splitter | 24L |
| A40/3 | COMAND control unit | 9L |
| A90/3 | TV digital tuner | 4A |
| A90/3 | TV digital tuner | 12A |
| A90/3 | TV digital tuner | 20A |
| A94/1 | TV 1 antenna amplifier | 17L |
| A94/2 | TV 2 antenna amplifier | 19L |
| A94/3 | TV 3 and DAB antenna amplifier | 20L |
| A94/3 | TV 3 and DAB antenna amplifier | 31L |
| Code EF6 | Digital radio | 22E |
| Code ZJ1 | Japan version | 7F |
| F33 | Battery compartment prefuse box | 4L |
| F33MF3 | Multiple fuse 3 | 2K |
| N87/3 | Digital Audio Broadcasting control unit | 28L |
| U43 | Valid for ECE | 7E |
| W8 | Liftgate ground point | 5E |
| X1/23 | TV antenna 1 electrical connector | 16F |
| X1/24 | TV antenna 2 electrical connector | 18F |
| X1/26 | TV antenna 4 electrical connector | 31H |
| X1/26 | TV antenna 4 electrical connector | 20G |
