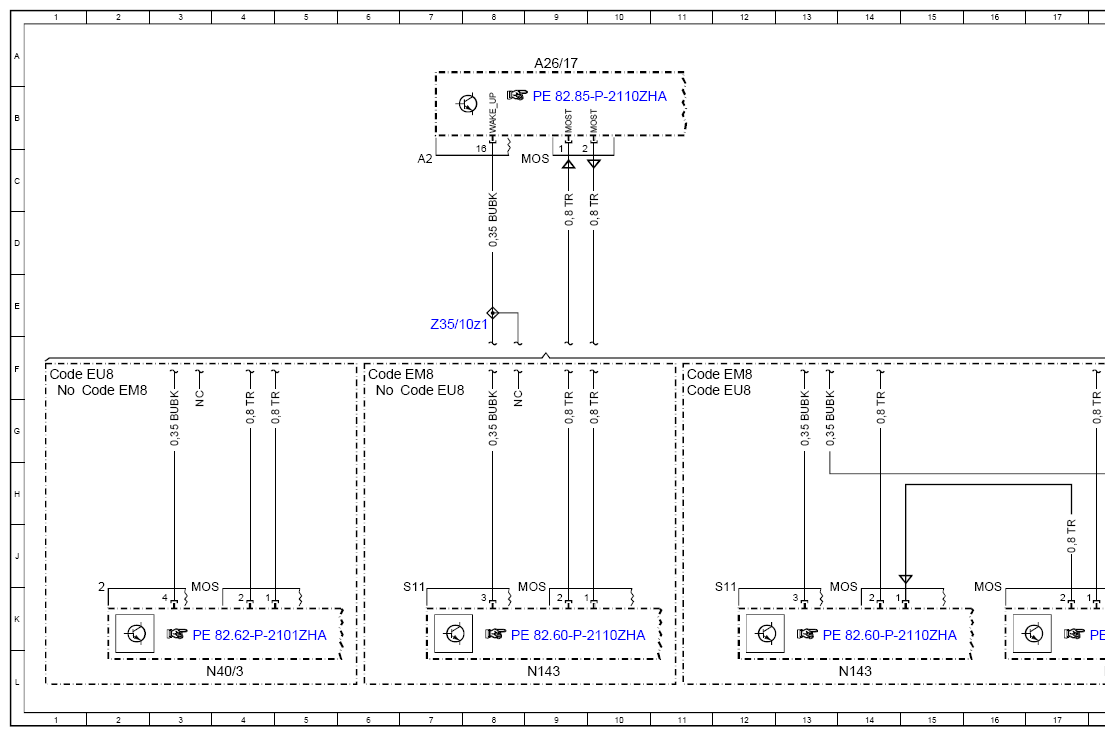

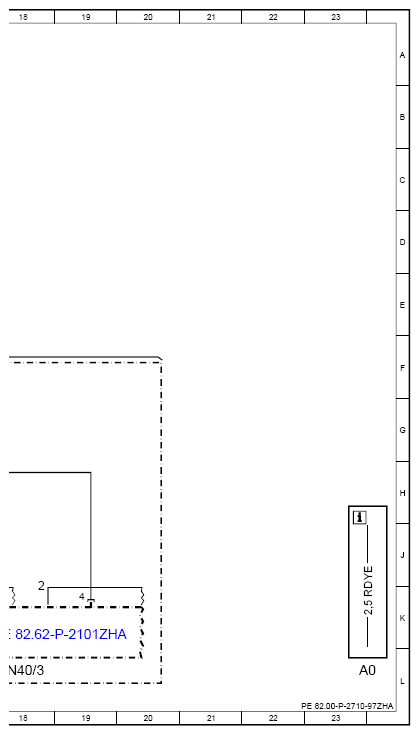

Wiring Diagram Of MOST Bus - PE82.00-P-2710-97ZHA
Model 463 (except 463.342)
as of model year 2019
with code EM8 (TV tuner)
with code EU8 (Burmester® surround sound system)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A26/17 | Head unit | 9A |
| Code EM8 | TV tuner | 6F |
| Code EM8 | TV tuner | 11F |
| Code EM8 | TV tuner | 1F |
| Code EU8 | Burmester® surround sound system | 1F |
| Code EU8 | Burmester® surround sound system | 7F |
| Code EU8 | Burmester® surround sound system | 11F |
| N143 | TV tuner control unit | 9L |
| N143 | TV tuner control unit | 14L |
| N40/3 | Sound system amplifier control unit | 4L |
| N40/3 | Sound system amplifier control unit | 18L |
| Z35/10z1 | Wake-up signal connector sleeve | 7E |
