Wiring Diagram Of MOST Bus - PE82.00-P-2710-97ZGB
Model 463
as of model year 2017 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |

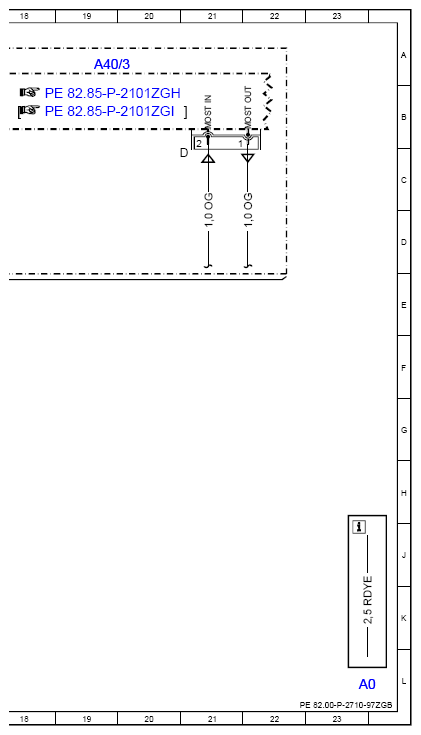

| A40/3 | COMAND control unit | 13A |
| A40/3 | COMAND control unit | 19A |
| A90/4 | Tuner unit | 7L |
| Code EM8 | TV tuner | 4G |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 10G |
| Code ZJ1 | Japan version | 16A |
| Code ZJ1 | Japan version | 4H |
| Code ZU8 | USA version | 16A |
| N40/3 | Sound system amplifier control unit | 13L |
| U20 | Valid for all (except USA and Japan) | 10A |
| U43 | Valid for ECE | 4H |

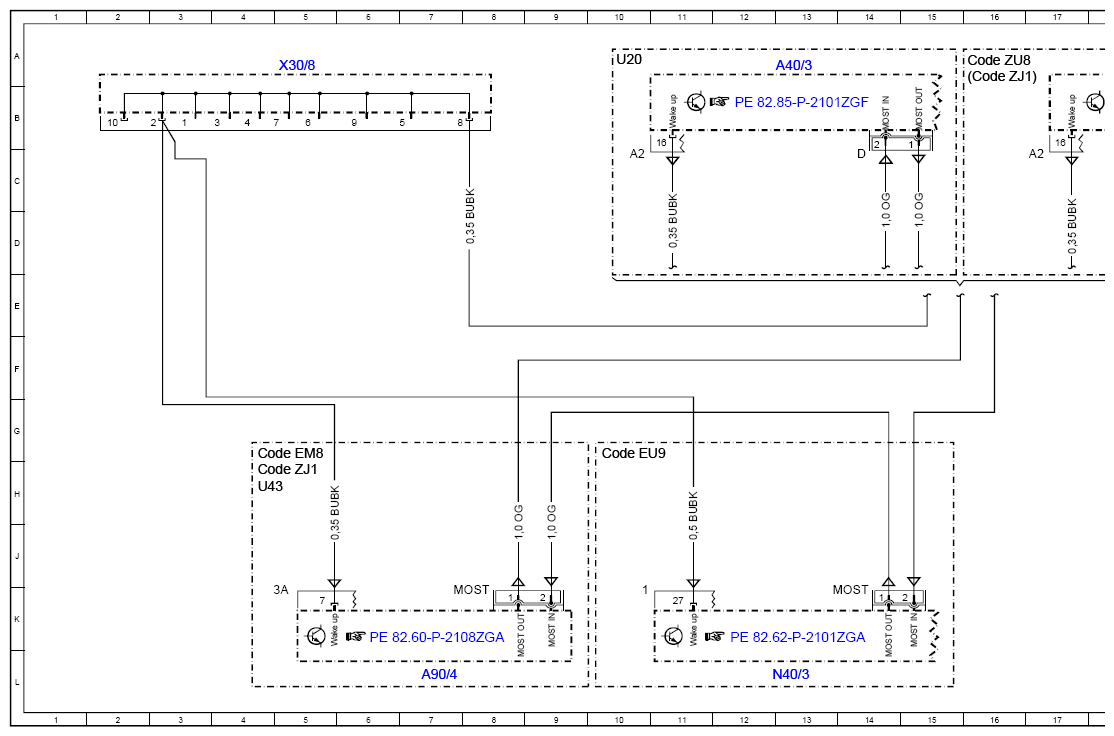

| X30/8 | MOST electrical connector | 5A |
