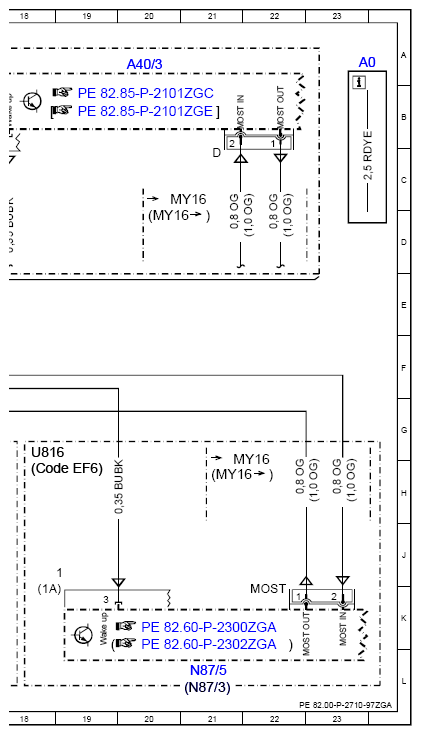

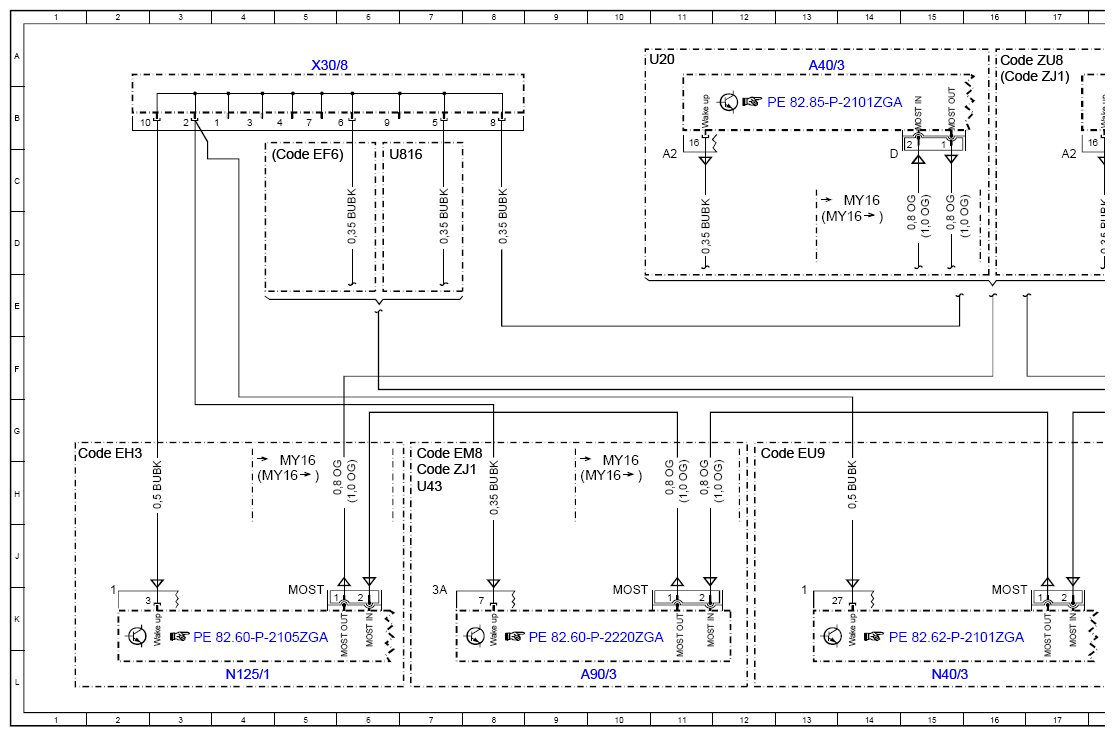

Wiring Diagram Of MOST Bus - PE82.00-P-2710-97ZGA
Model 463
as of model year 2013 up to model year 2017
/YoM 12 model refinement package
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23A |
| A40/3 | COMAND operating, display and control unit | 13A |
| A40/3 | COMAND operating, display and control unit | 20A |
| A90/3 | TV digital tuner | 10L |
| Code EF6 | Digital radio | 18H |
| Code EF6 | Digital radio | 4C |
| Code EH3 | Media Interface | 1G |
| Code EM8 | TV tuner | 7G |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 12G |
| Code ZJ1 | Japan version | 16A |
| Code ZJ1 | Japan version | 7H |
| Code ZU8 | USA version | 16A |
| N125/1 | Media interface control unit | 4L |
| N40/3 | Sound system amplifier control unit | 15L |
| N87/3 | Digital Audio Broadcasting control unit | 21L |
| N87/5 | SDAR control unit | 21L |
| U20 | Valid for all (except USA and Japan) | 10A |
| U43 | Valid for ECE | 7H |
| U816 | Valid for satellite radio (SDAR) | 18G |
| U816 | Valid for satellite radio (SDAR) | 6C |
| X30/8 | MOST electrical connector | 5A |
