Wiring Diagram Of Head Unit - PE82.85-P-2110-97ZHA
Model 463 (except 463.342)
as of model year 2019
Control unit A26/17
| Code: | Designation: | Position: |
|---|---|---|

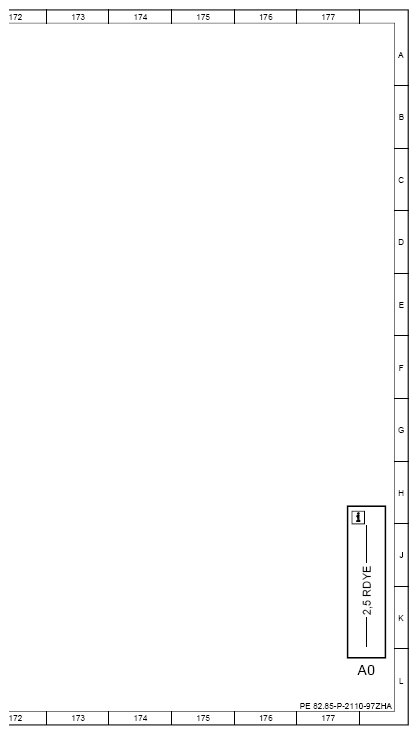

| A0 | Use of wiring diagrams | 178L |
| A1 | Instrument cluster | 94L |
| A105 | Touchpad | 20L |
| A2/105 | SDARS antenna | 125L |
| A2/108 | FM 2, DAB 2, TV 2 antenna amplifier | 115L |
| A2/18 | FM 1, AM, CL [ZV], DAB 1 antenna amplifier | 120L |

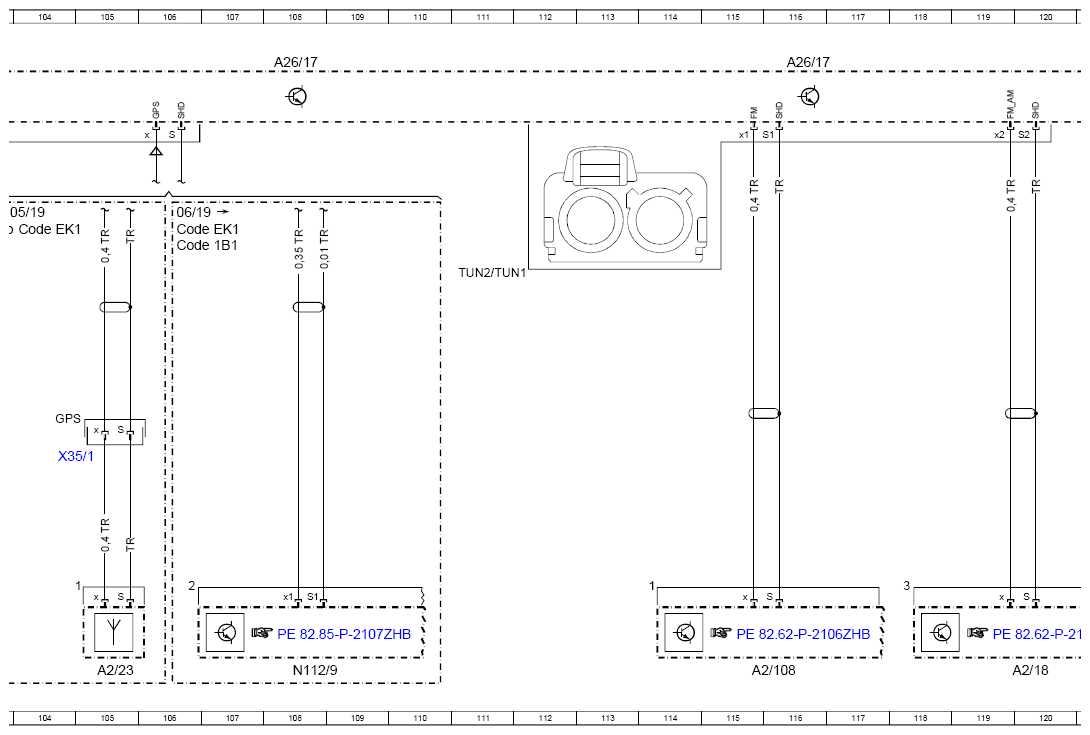

| A2/23 | GPS antenna | 105L |
| A2/83 | WLAN antenna | 100L |
| A2/91 | Bluetooth® antenna | 99L |

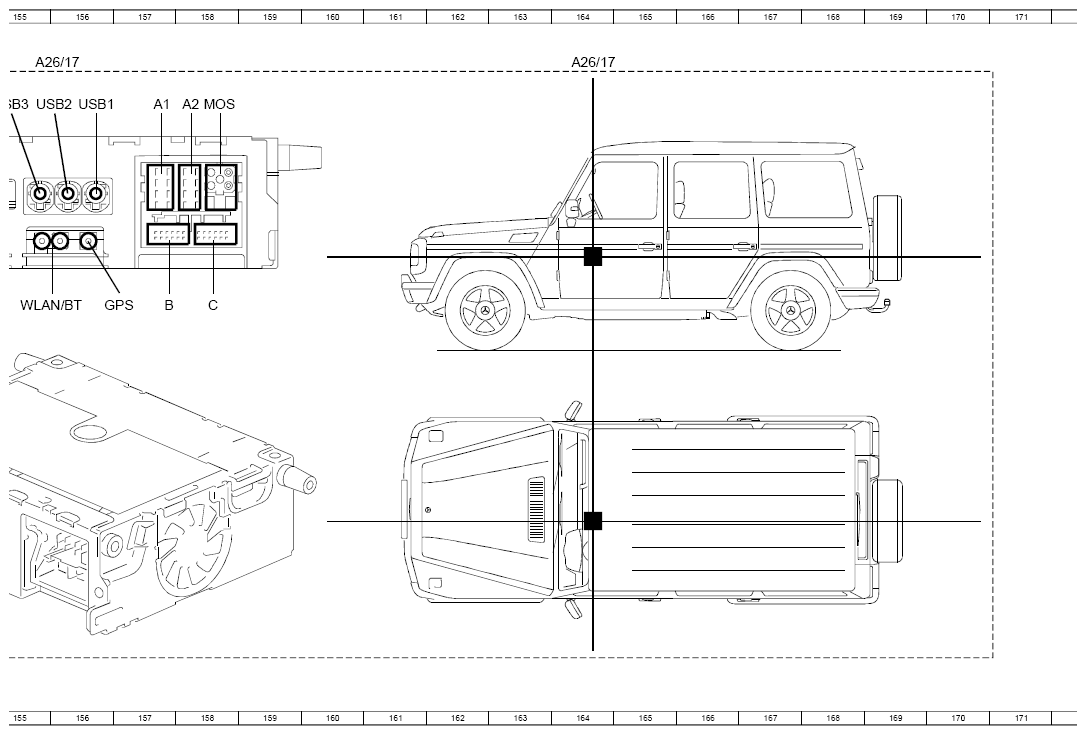

| A26/17 | Head unit | 4A |
| A26/17 | Head unit | 12A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 28A |
| A26/17 | Head unit | 36A |
| A26/17 | Head unit | 44A |
| A26/17 | Head unit | 51A |
| A26/17 | Head unit | 60A |
| A26/17 | Head unit | 68A |
| A26/17 | Head unit | 76A |
| A26/17 | Head unit | 84A |
| A26/17 | Head unit | 92A |
| A26/17 | Head unit | 99A |
| A26/17 | Head unit | 108A |
| A26/17 | Head unit | 116A |
| A26/17 | Head unit | 124A |
| A26/17 | Head unit | 132A |
| A26/17 | Head unit | 140A |
| A26/17 | Head unit | 148A |
| A26/17 | Head unit | 155A |
| A26/17 | Head unit | 164A |

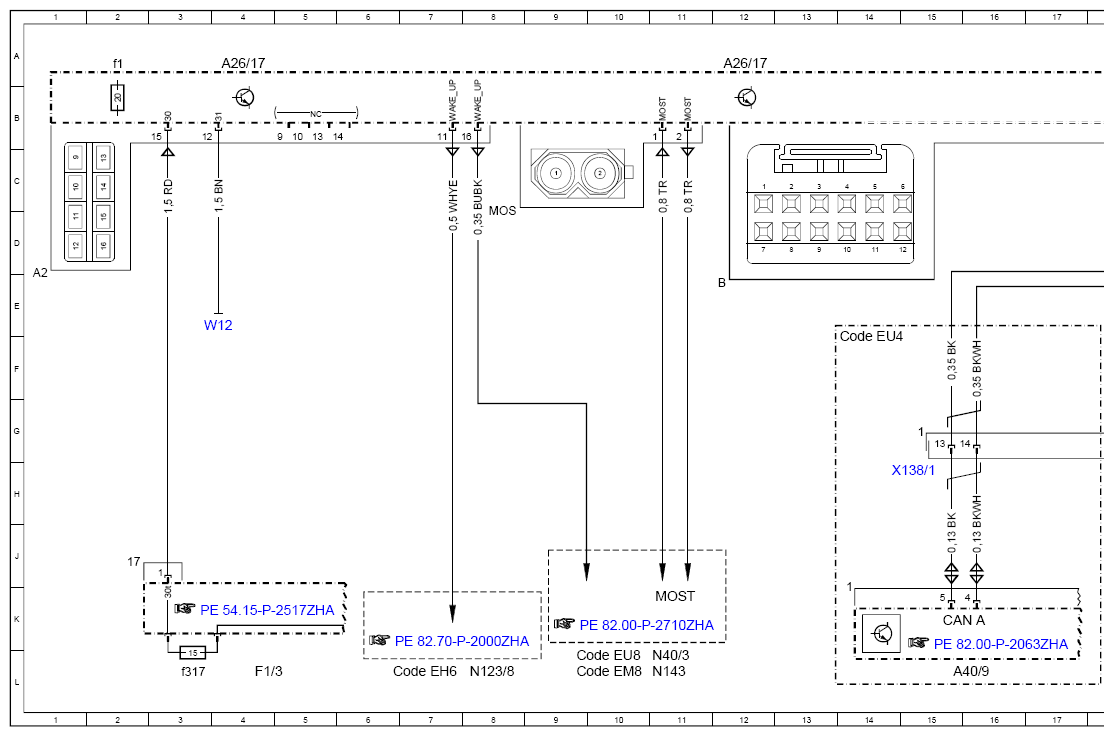

| A26/17f1 | Electrical fuse, head unit | 2A |

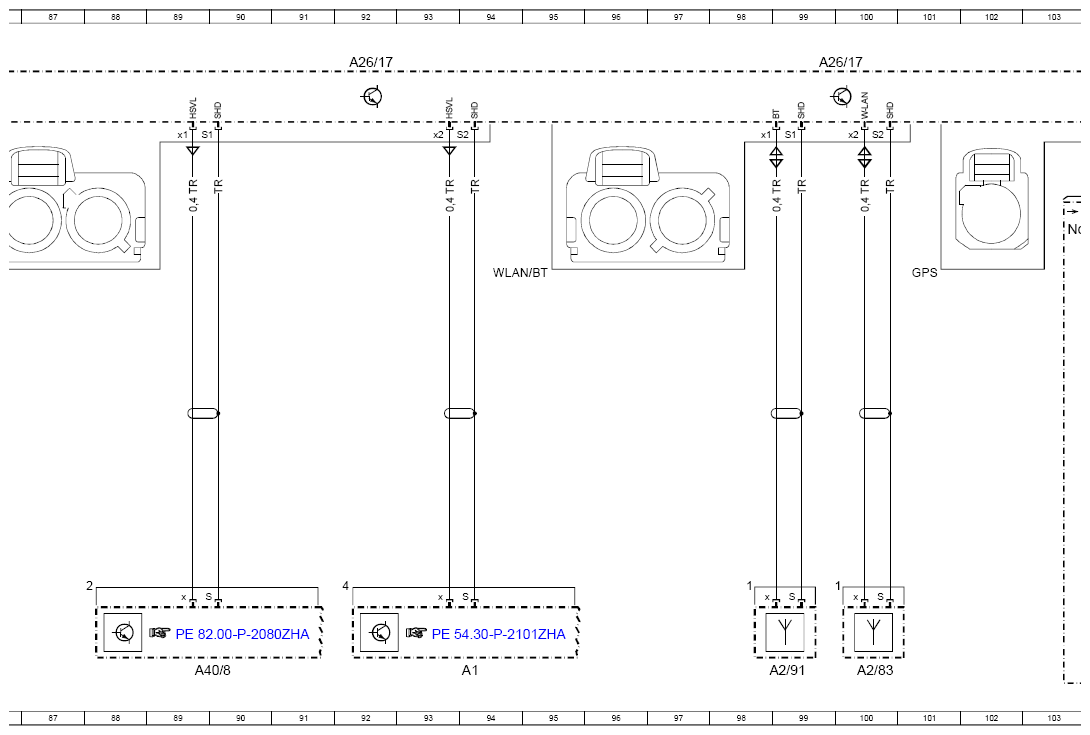

| A40/8 | Audio/COMAND display | 89L |
| A40/8 | Audio/COMAND display | 24L |
| A40/9 | Audio/COMAND control panel | 16L |
| A50/6 | Dedicated Short-Range Communications control unit | 149L |

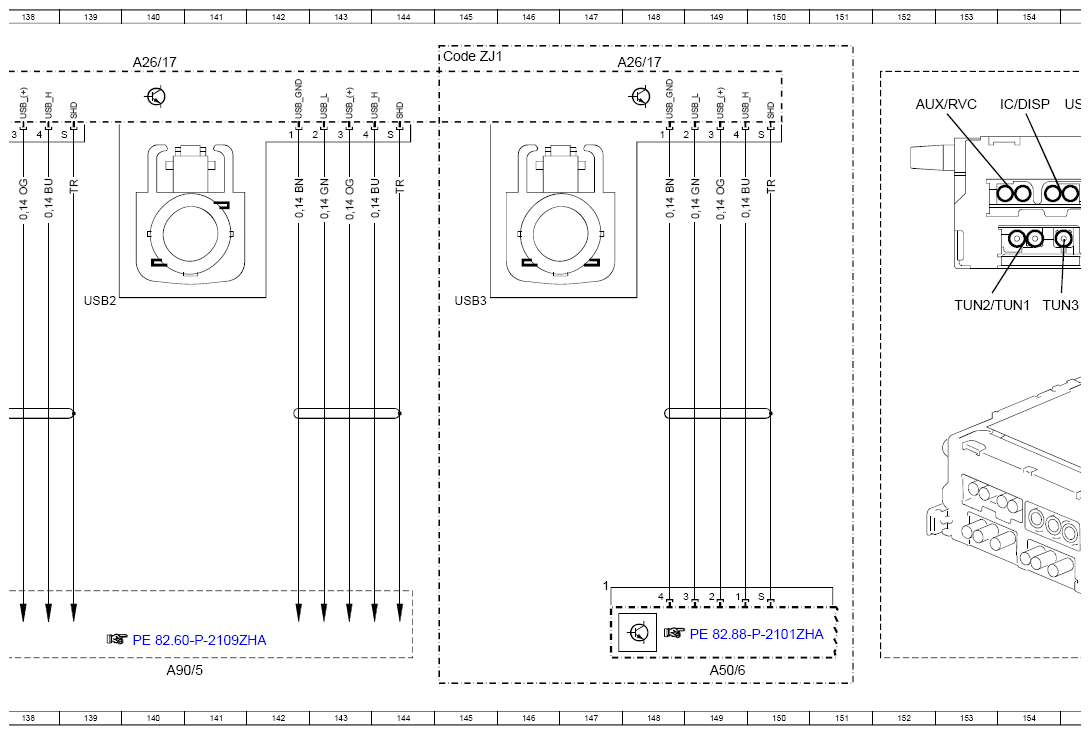

| A90/5 | Multimedia connection unit | 140L |

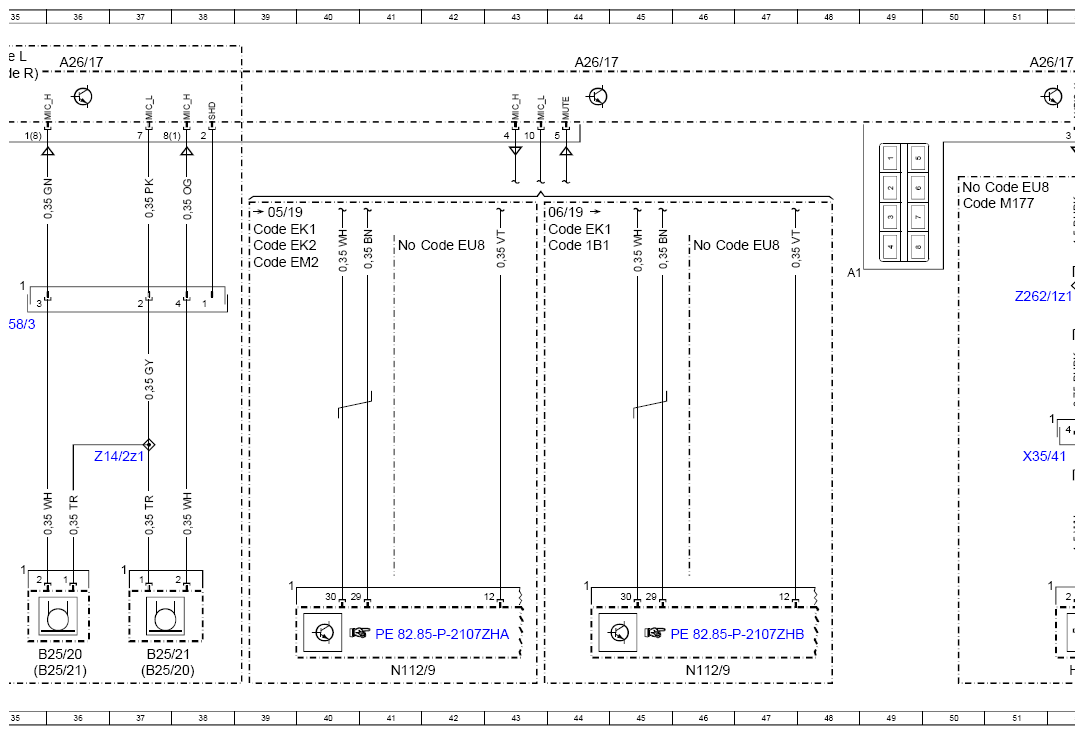

| B25/20 | Driver hands-free system microphone | 37L |
| B25/20 | Driver hands-free system microphone | 36L |
| B25/21 | Front passenger hands-free system microphone | 36L |
| B25/21 | Front passenger hands-free system microphone | 37L |

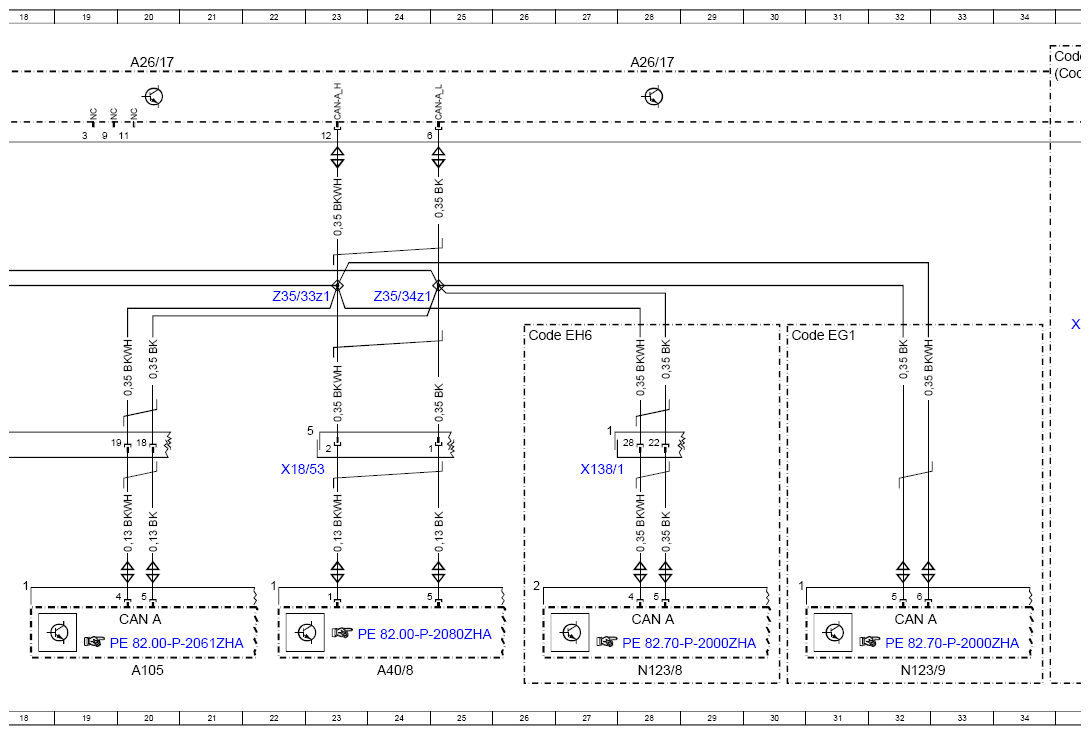

| CAN A | Telematics CAN | 20K |
| CAN A | Telematics CAN | 15K |
| CAN A | Telematics CAN | 28K |
| CAN A | Telematics CAN | 32K |

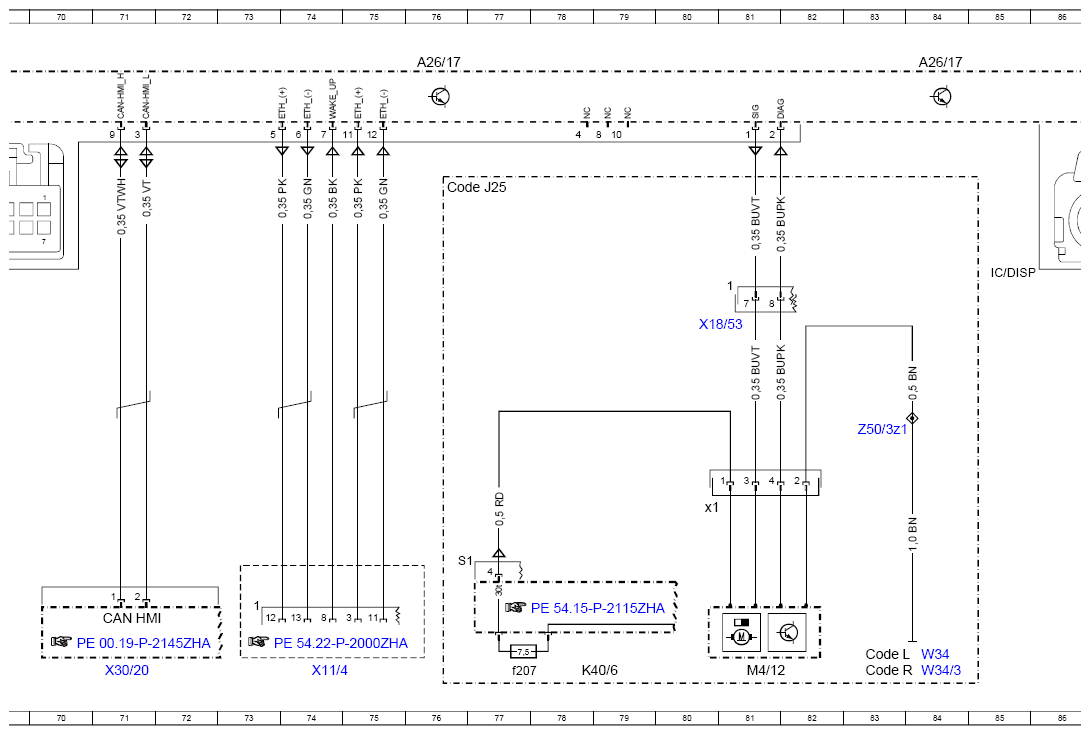

| CAN HMI | User interface CAN | 71K |
| Code 1B1 | TECHNICAL COMMUNICATION MODULE VARIANT FOR RUSSIA | 44D |
| Code 1B1 | TECHNICAL COMMUNICATION MODULE VARIANT FOR RUSSIA | 106D |
| Code EG1 | Car telephony | 30F |
| Code EH6 | Multifunction telephony | 7L |
| Code EH6 | Multifunction telephony | 26F |
| Code EK1 | HERMES LTE communications module | 39D |
| Code EK1 | HERMES LTE communications module | 44D |
| Code EK1 | HERMES LTE communications module | 106D |
| Code EK1 | HERMES LTE communications module | 104D |
| Code EK2 | HERMES - UMTS Russia communications module | 39D |
| Code EM2 | HERMES UMTS communications module | 39D |
| Code EM8 | TV tuner | 9L |
| Code EU4 | COMAND Online | 14F |
| Code EU8 | Burmester® surround sound system | 9L |
| Code EU8 | Burmester® surround sound system | 41D |
| Code EU8 | Burmester® surround sound system | 46D |
| Code EU8 | Burmester® surround sound system | 51C |

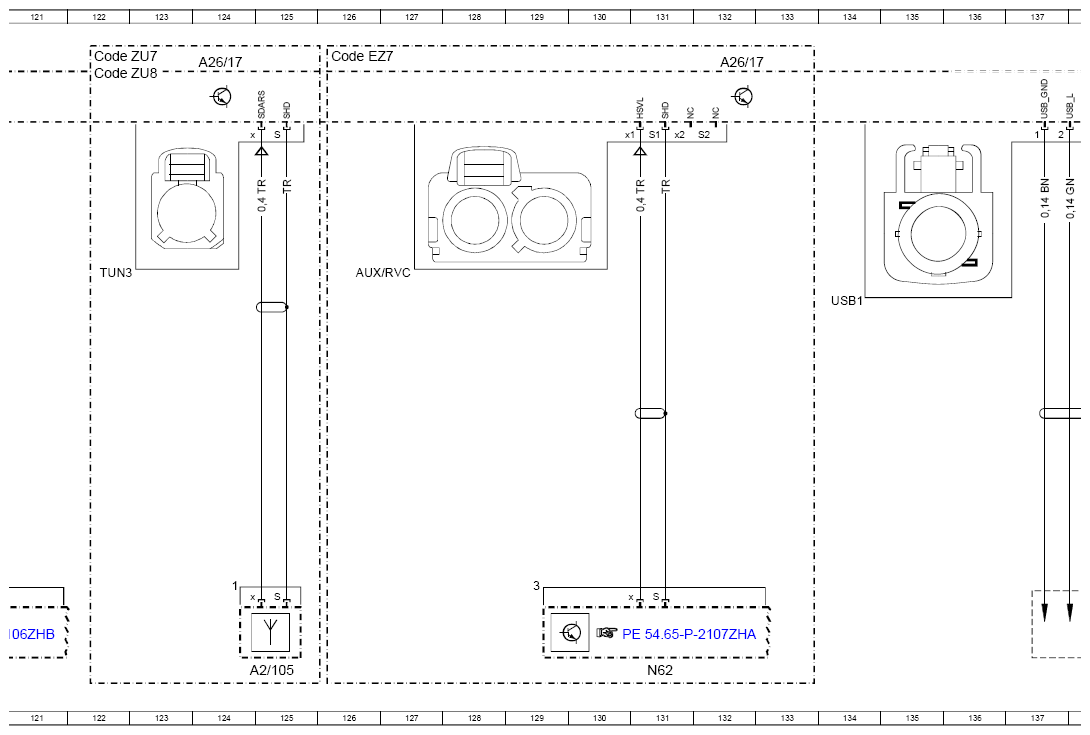

| Code EZ7 | PARKING ASSISTANT WITH REVERSING CAMERA | 126A |
| Code J25 | FULL DIGITAL DISPLAY INSTRUMENT CLUSTER | 76C |
| Code L | LEFT-HAND DRIVE | 83L |
| Code L | LEFT-HAND DRIVE | 34A |
| Code M177 | V8 spark-ignition engine M177 - AMG | 50C |
| Code R | RIGHT-HAND DRIVE | 83L |
| Code R | RIGHT-HAND DRIVE | 34A |
| Code ZJ1 | Japan national version | 145A |
| Code ZU7 | Canada national version | 122A |
| Code ZU8 | USA national version | 122A |
| F1/3 | Right A-pillar fuse box | 4L |
| F1/3f317 | Fuse 317 | 3L |

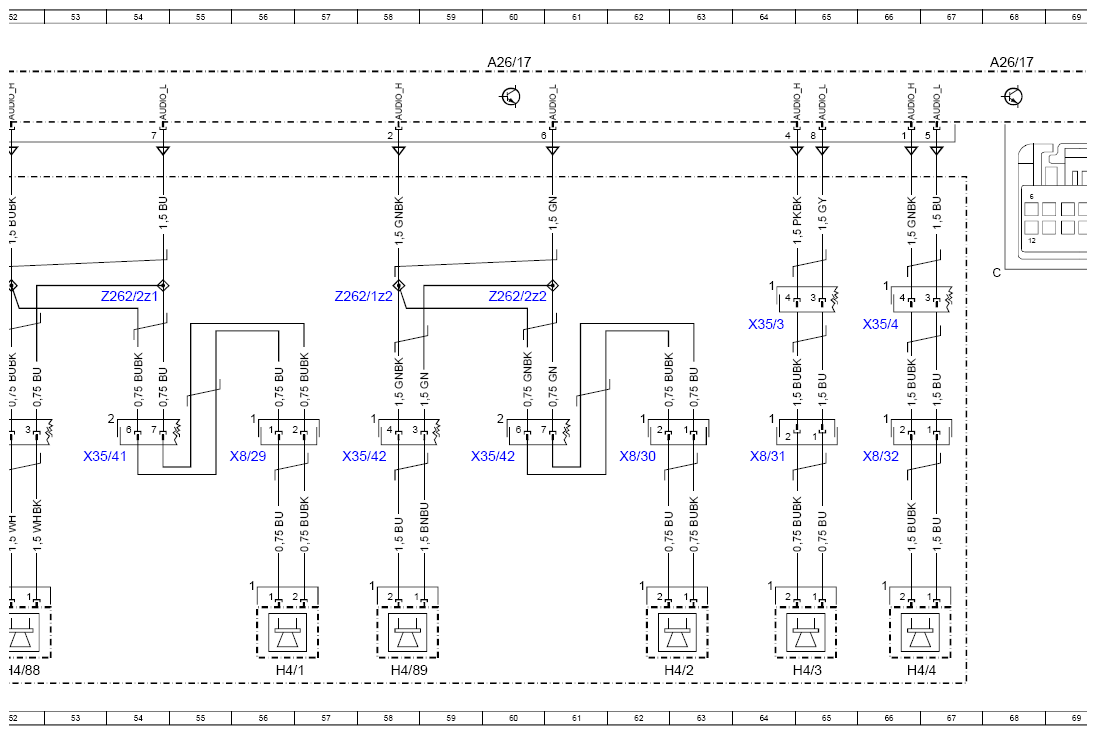

| H4/1 | Left front door midrange speaker | 56L |
| H4/2 | Right front door midrange speaker | 63L |
| H4/3 | Left rear door midrange speaker | 65L |
| H4/4 | Right rear door midrange speaker | 66L |
| H4/88 | Left front door woofer | 52L |
| H4/89 | Right front door woofer | 58L |
| K40/6 | Left fuse and relay module | 78L |
| K40/6f207 | Fuse 207 | 77L |
| M4/12 | Digital instrument cluster display fan motor | 81L |
| M4/12x1 | Digital instrument cluster display fan motor electrical connector | 80H |
| MOST | Media Oriented System Transport | 11K |
| N112/9 | HERMES control unit | 46L |
| N112/9 | HERMES control unit | 41L |
| N112/9 | HERMES control unit | 108L |
| N123/8 | Mobile phone cradle control unit | 8L |
| N123/8 | Mobile phone cradle control unit | 28L |
| N123/9 | Telephone control unit | 32L |
| N143 | TV tuner control unit | 11L |
| N40/3 | Sound system amplifier control unit | 11L |
| N62 | Parking system control unit | 131L |
| W12 | Ground point (center console) | 4E |
| W34 | Left footwell ground point | 84L |
| W34/3 | Right footwell ground point | 84L |
| X11/4 | Diagnostic connector | 74L |
| X138/1 | Front center console electrical connector | 15H |
| X138/1 | Front center console electrical connector | 27H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 22H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 81E |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 71L |
| X35/1 | Driver door electrical connector | 104H |
| X35/3 | Left rear door electrical connector | 64E |
| X35/4 | Right rear door electrical connector | 66E |
| X35/41 | Driver door electrical connector | 51H |
| X35/41 | Driver door electrical connector | 53H |
| X35/42 | Front passenger door electrical connector | 58H |
| X35/42 | Front passenger door electrical connector | 60H |
| X58/3 | Microphone electrical connector | 35E |
| X8/29 | Left door lining electrical connector | 56H |
| X8/30 | Right door lining electrical connector | 62H |
| X8/31 | Left rear door lining electrical connector | 64H |
| X8/32 | Right rear door lining electrical connector | 66H |
| Z14/2z1 | Audio signal LOW connector sleeve | 37G |
| Z262/1z1 | Audio signal HIGH connector sleeve | 51E |
| Z262/1z2 | Audio signal HIGH connector sleeve | 58E |
| Z262/2z1 | Audio signal HIGH connector sleeve | 54E |
| Z262/2z2 | Audio signal LOW connector sleeve | 60E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 22E |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 24E |
| Z50/3z1 | Circuit 31 connector sleeve | 83G |
