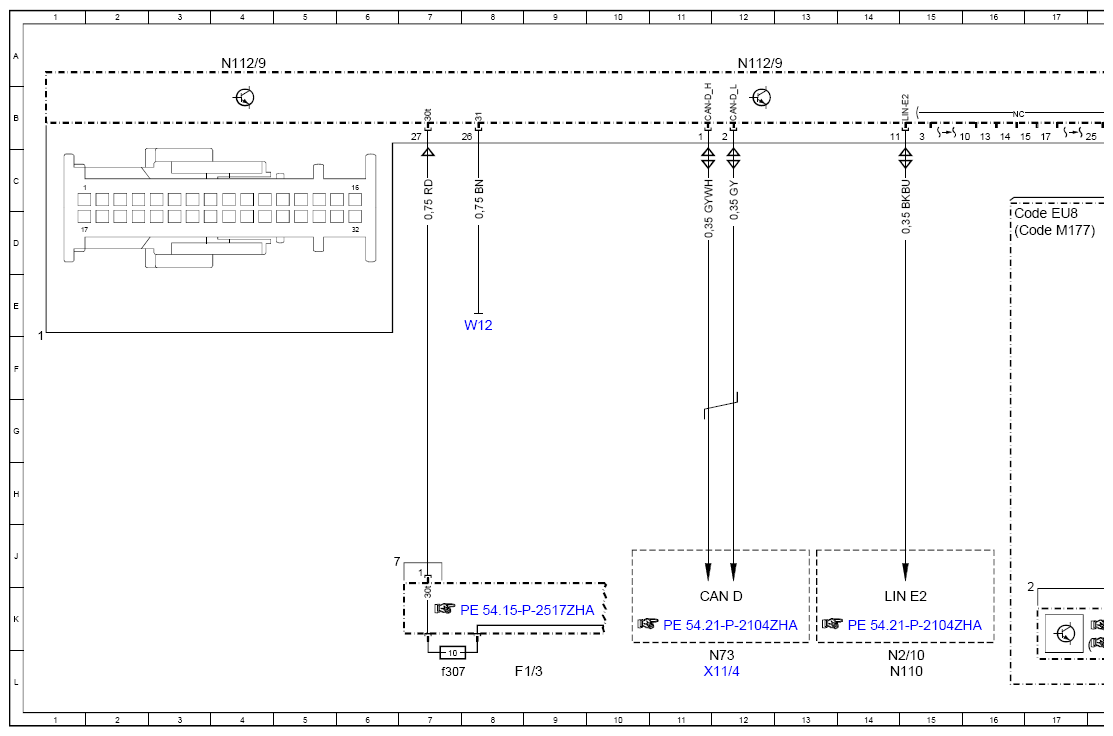

Wiring Diagram Of HERMES Control Unit - PE82.85-P-2107-97ZHA
Model 463 (except 463.342)
as of model year 2019 up to model year 2020
with code EK1 (HERMES communications module LTE)
with code EK2 (HERMES communications module Russia UMTS)
with code EM2 (Communications module (UMTS) for the use of Merced)
Control unit N112/9
| Code: | Designation: | Position: |
|---|---|---|

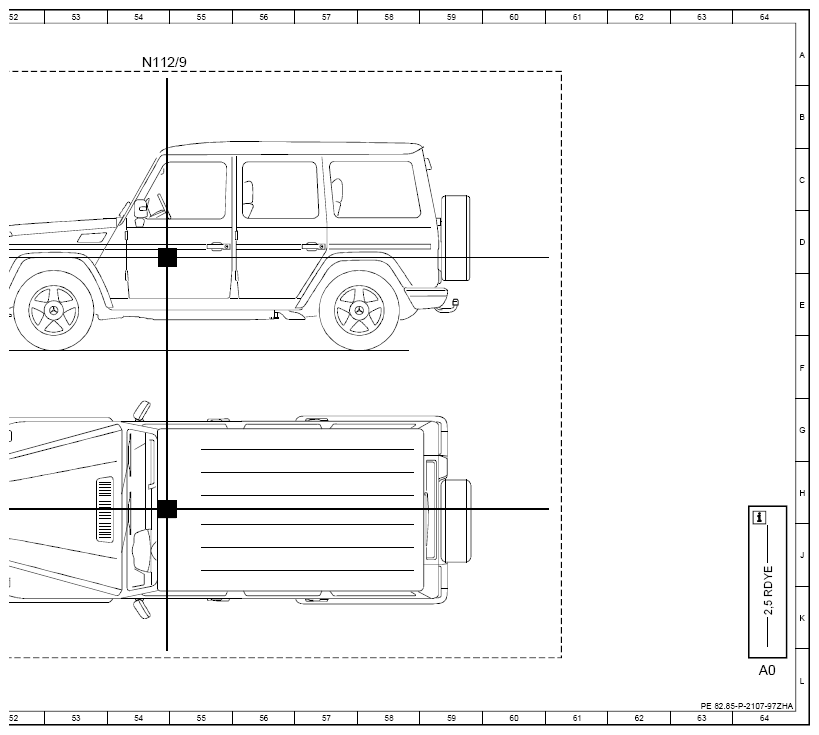

| A0 | Use of wiring diagrams | 64L |
| A2/140 | Emergency call system antenna 1 | 37L |
| A2/141 | Emergency call system antenna 2 | 33L |

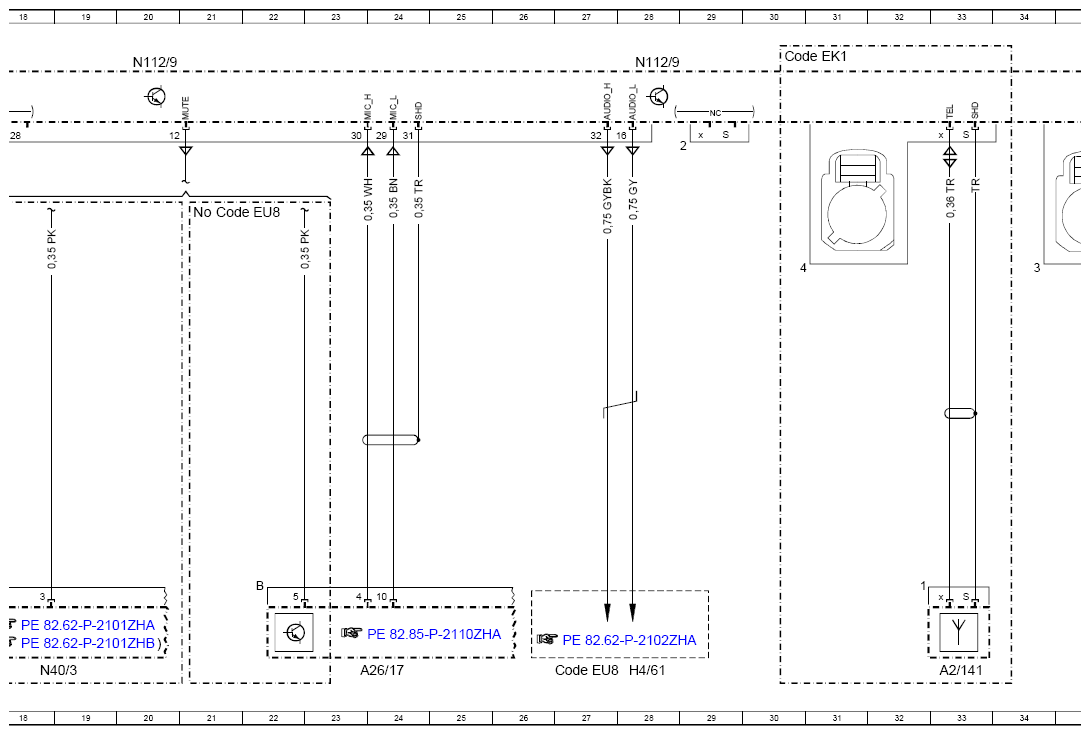

| A26/17 | Head unit | 24L |
| CAN D | Diagnostic CAN | 12K |

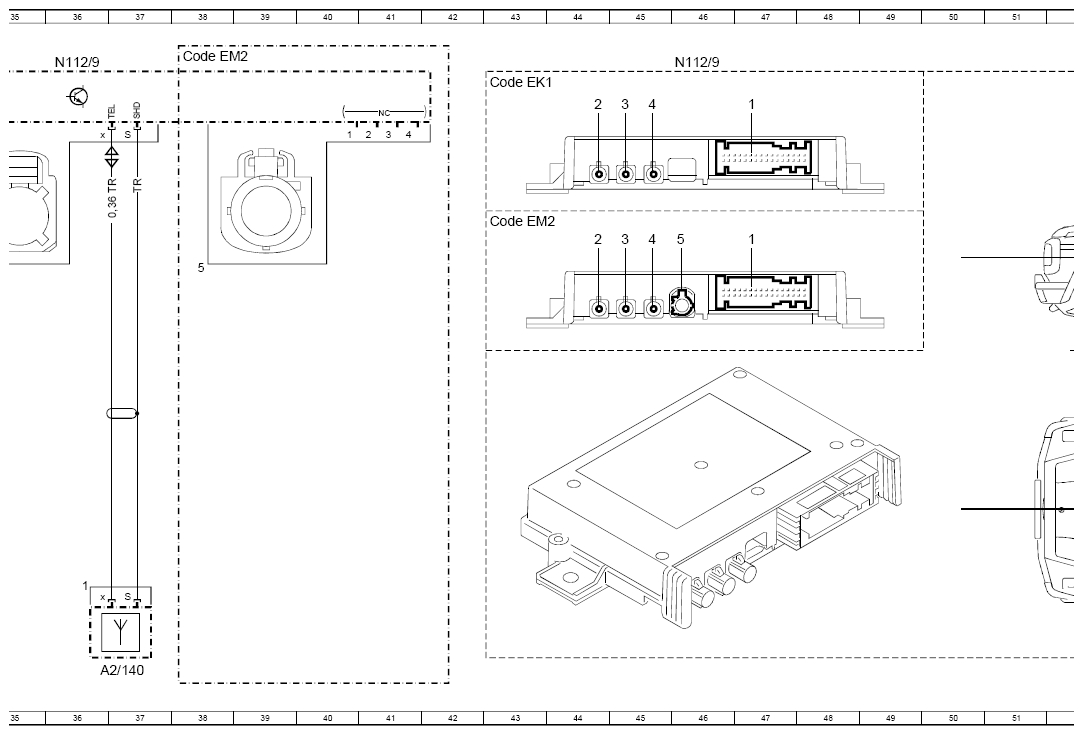

| Code EK1 | HERMES LTE communications module | 43B |
| Code EK1 | HERMES LTE communications module | 30A |
| Code EM2 | HERMES UMTS communications module | 43D |
| Code EM2 | HERMES UMTS communications module | 38A |
| Code EU8 | Burmester® surround sound system | 27L |
| Code EU8 | Burmester® surround sound system | 21D |
| Code EU8 | Burmester® surround sound system | 16D |
| Code M177 | V8 spark-ignition engine M177 - AMG | 16D |
| F1/3 | Right A-pillar fuse box | 8L |
| F1/3f307 | Fuse 307 | 7L |
| H4/61 | Instrument cluster speaker | 28L |
| LIN E2 | Seat occupied recognition LIN | 14K |
| N110 | Weight classification control unit | 14L |
| N112/9 | HERMES control unit | 4A |
| N112/9 | HERMES control unit | 20A |
| N112/9 | HERMES control unit | 12A |
| N112/9 | HERMES control unit | 36A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 54A |
| N112/9 | HERMES control unit | 46A |
| N2/10 | Supplemental restraint system control unit | 14L |
| N40/3 | Sound system amplifier control unit | 18L |
| N73 | Electronic ignition switch control unit | 12L |
| W12 | Ground point (center console) | 8E |
| X11/4 | Diagnostic connector | 12L |
