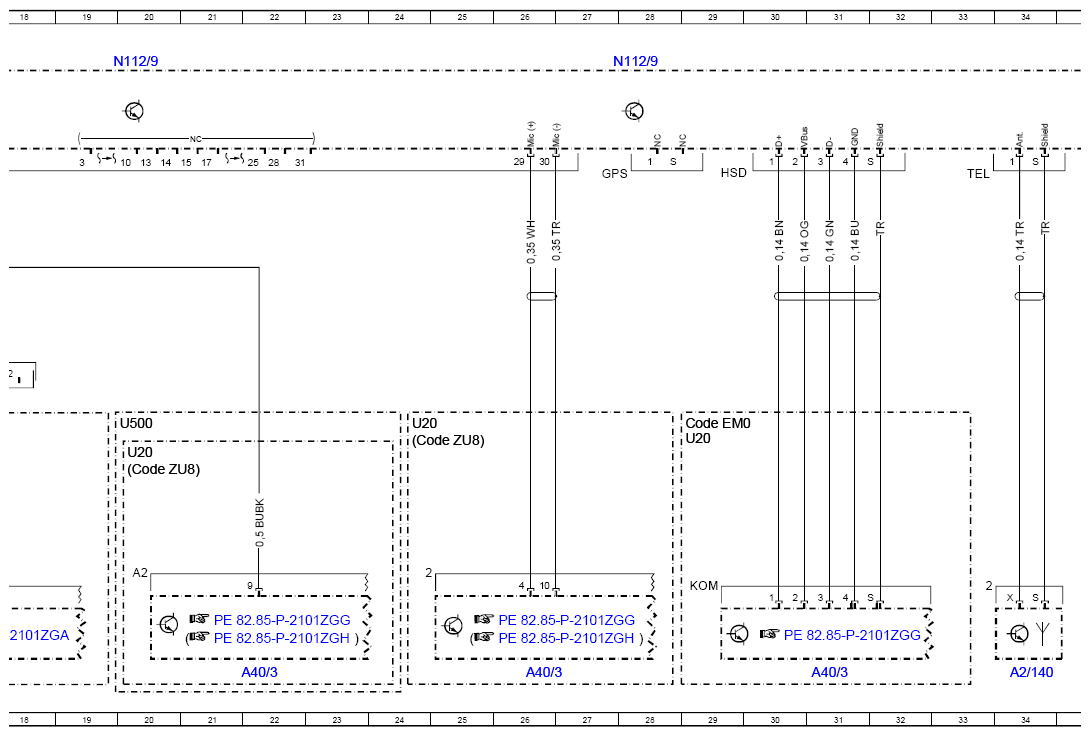

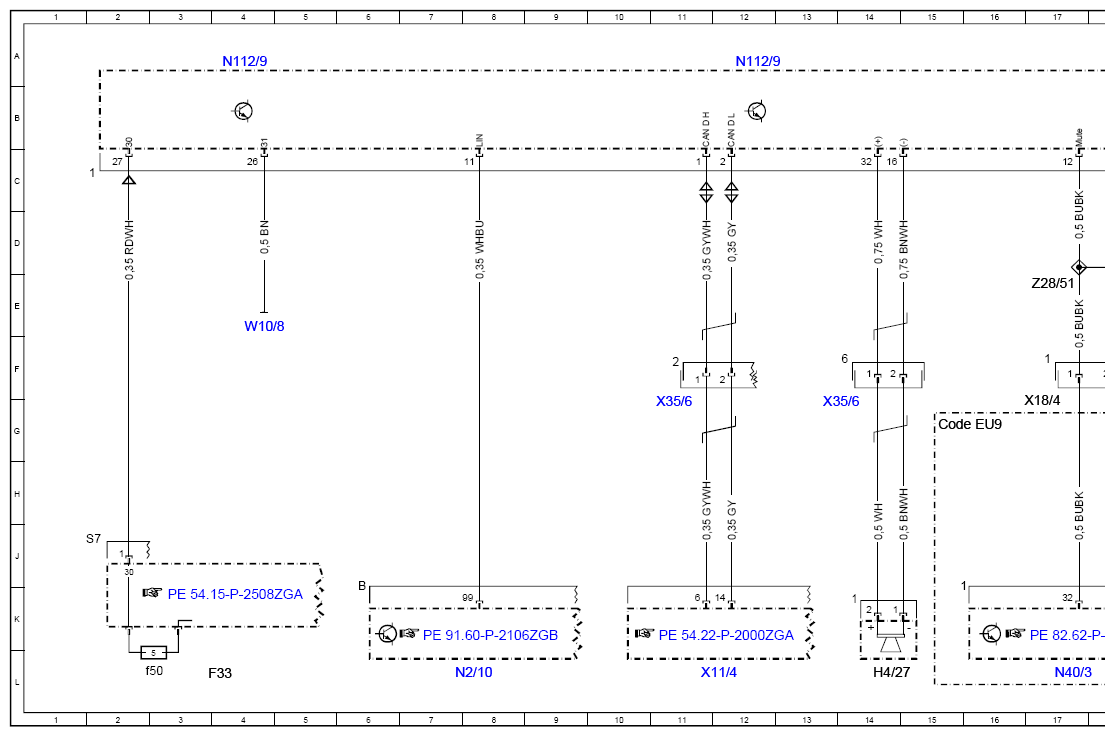

Wiring Diagram Of HERMES Control Unit - PE82.85-P-2107-97ZGA
Model 463
as of model year 2017 up to model year 2019
with code EK1 (HERMES communications module LTE)
with code EM2 (Communications module (UMTS) for the use of Merced)
Control unit N112/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A2/140 | Emergency call system antenna 1 | 34L |
| A2/141 | Emergency call system antenna 2 | 36L |
| A40/3 | COMAND control unit | 22L |
| A40/3 | COMAND control unit | 26L |
| A40/3 | COMAND control unit | 31L |
| Code EK1 | HERMES LTE communications module | 35G |
| Code EM0 | Live Traffic capability (HERMES) | 29G |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 15G |
| Code ZU8 | USA version | 20H |
| Code ZU8 | USA version | 24G |
| F33 | Battery compartment prefuse box | 4L |
| F33f50 | Fuse 50 | 3L |
| H4/27 | Center instrument panel speaker | 14L |
| N112/9 | HERMES control unit | 4A |
| N112/9 | HERMES control unit | 12A |
| N112/9 | HERMES control unit | 20A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 36A |
| N2/10 | Supplemental restraint system control unit | 8L |
| N40/3 | Sound system amplifier control unit | 17L |
| U20 | Valid for all (except USA and Japan) | 20G |
| U20 | Valid for all (except USA and Japan) | 24G |
| U20 | Valid for all (except USA and Japan) | 29G |
| U500 | Not valid for sound system | 20G |
| W10/8 | Right battery recess ground point | 4E |
| X11/4 | Diagnostic connector | 11L |
| X18/4 | Electrical connector, sound system | 17G |
| X35/6 | Instrument panel and module box electrical connector | 11G |
| X35/6 | Instrument panel and module box electrical connector | 14G |
| Z28/51 | Telephone mute connector sleeve | 17E |
