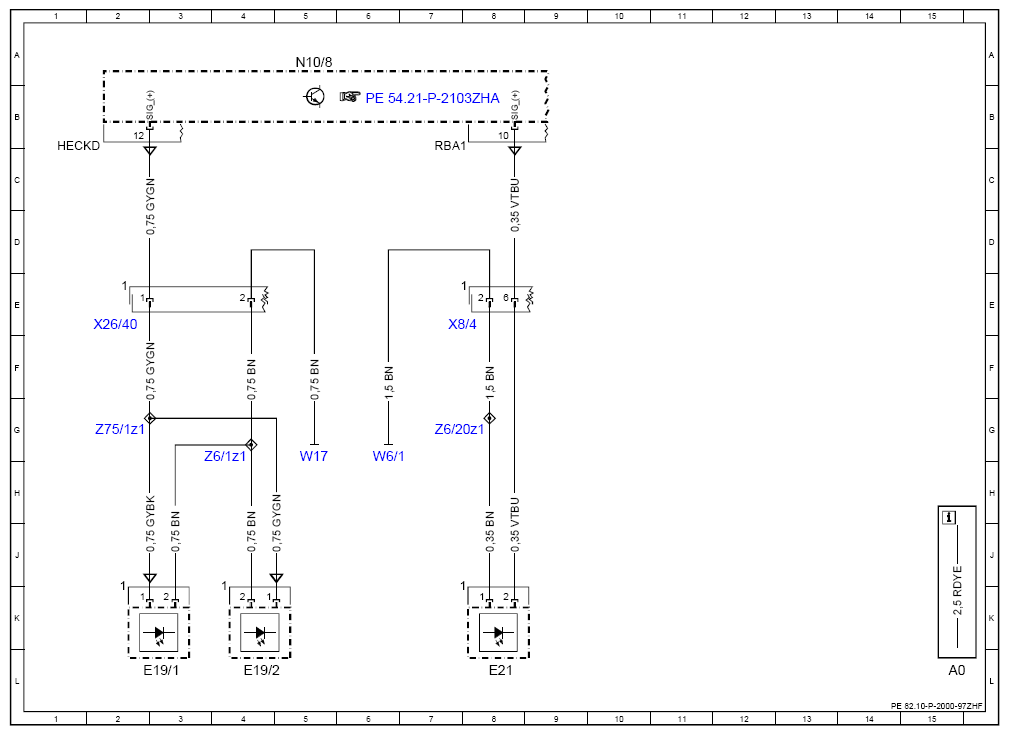

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97ZHF
Model 463 (except 463.342)
as of model year 2019
E19/1 E19/2 E21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| E19/1 | Left license plate lamp | 3L |
| E19/2 | Right license plate lamp | 4L |
| E21 | Center stop lamp | 8L |
| N10/8 | Rear SAM control unit | 5A |
| W17 | Right rear seat ground point | 5H |
| W6/1 | Left tail lamp rear-end door ground point | 6H |
| X26/40 | Rear bumper electrical connector | 2E |
| X8/4 | Rear-end door electrical connector | 8E |
| Z6/1z1 | Ground connection connector sleeve | 4G |
| Z6/20z1 | Ground connection connector sleeve | 7G |
| Z75/1z1 | Voltage supply connector sleeve | 2G |
