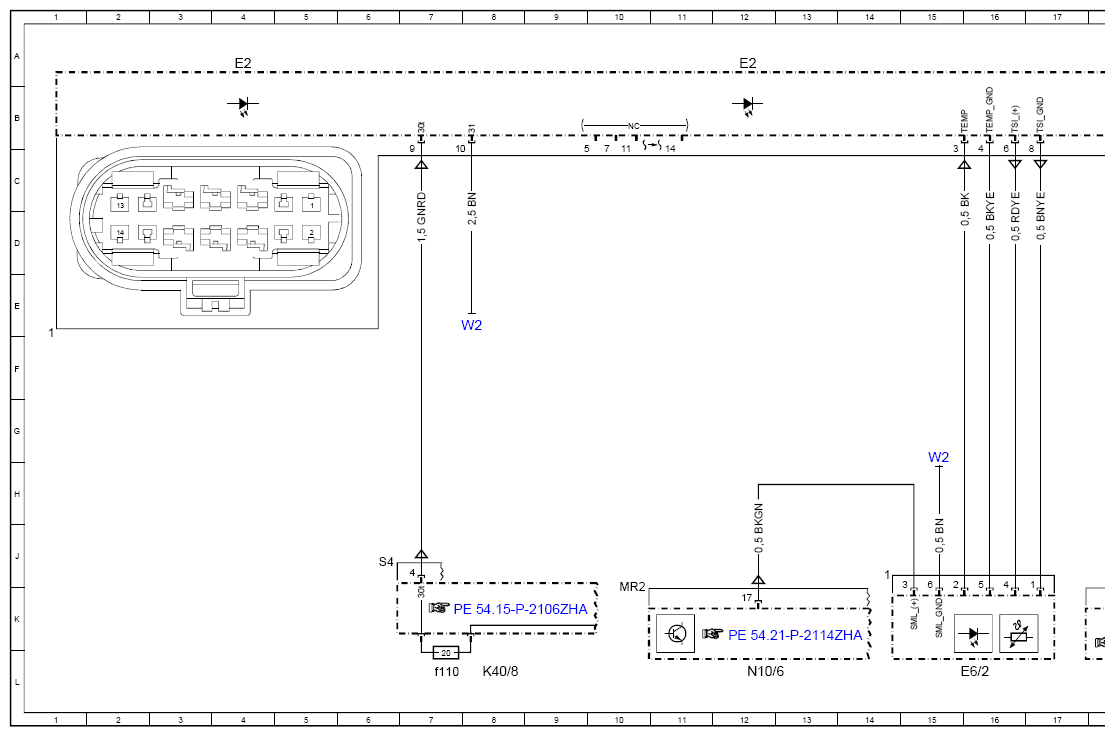

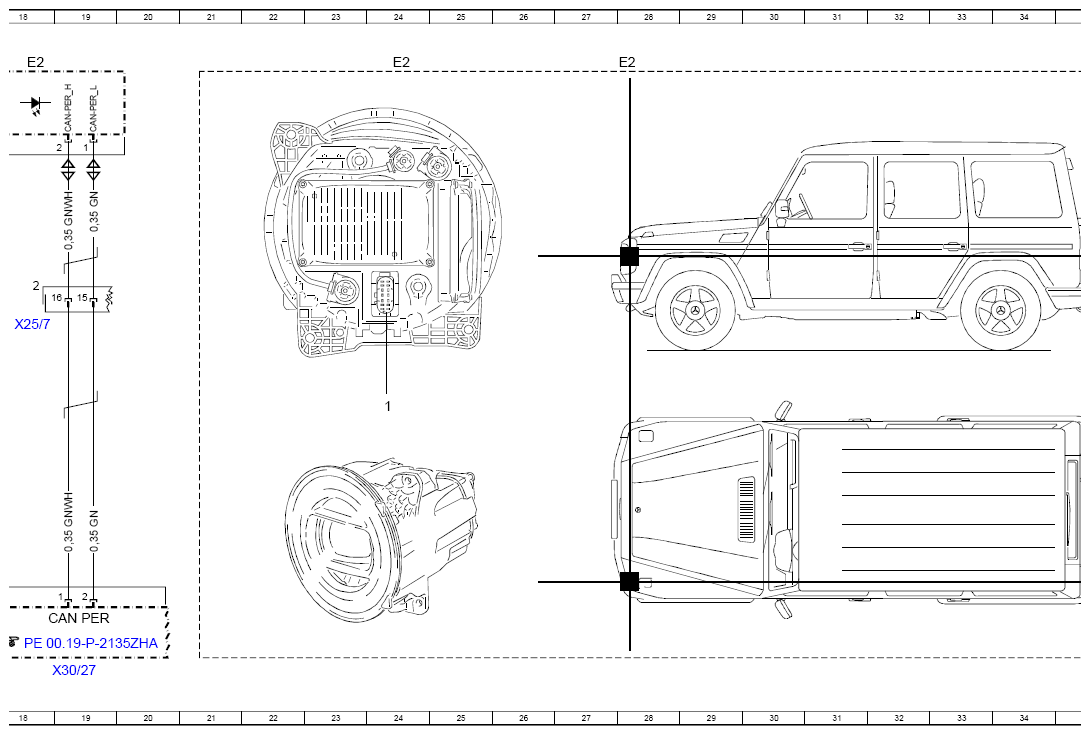

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97ZHB
Model 463 (except 463.342)
as of model year 2019
except code L57 (IHC Light)
Headlamps E2
| Code: | Designation: | Position: |
|---|---|---|

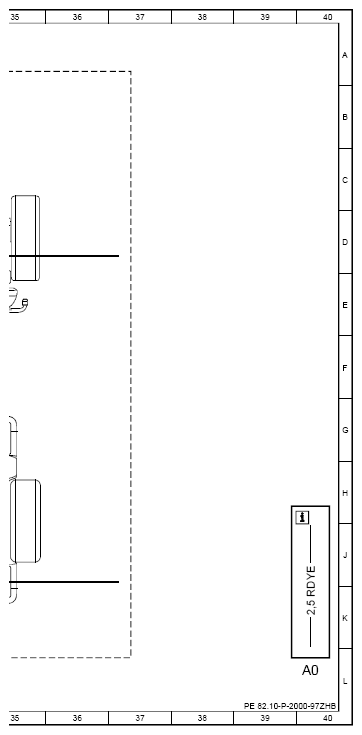

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 19K |
| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 18A |
| E2 | Right front lamp unit | 24A |
| E2 | Right front lamp unit | 28A |
| E6/2 | Right turn signal lamp | 16L |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8f110 | Fuse 110 | 7L |
| N10/6 | Front SAM control unit | 12L |
| W2 | Right front ground point with lamp unit | 15H |
| W2 | Right front ground point with lamp unit | 8E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 18E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 19L |
