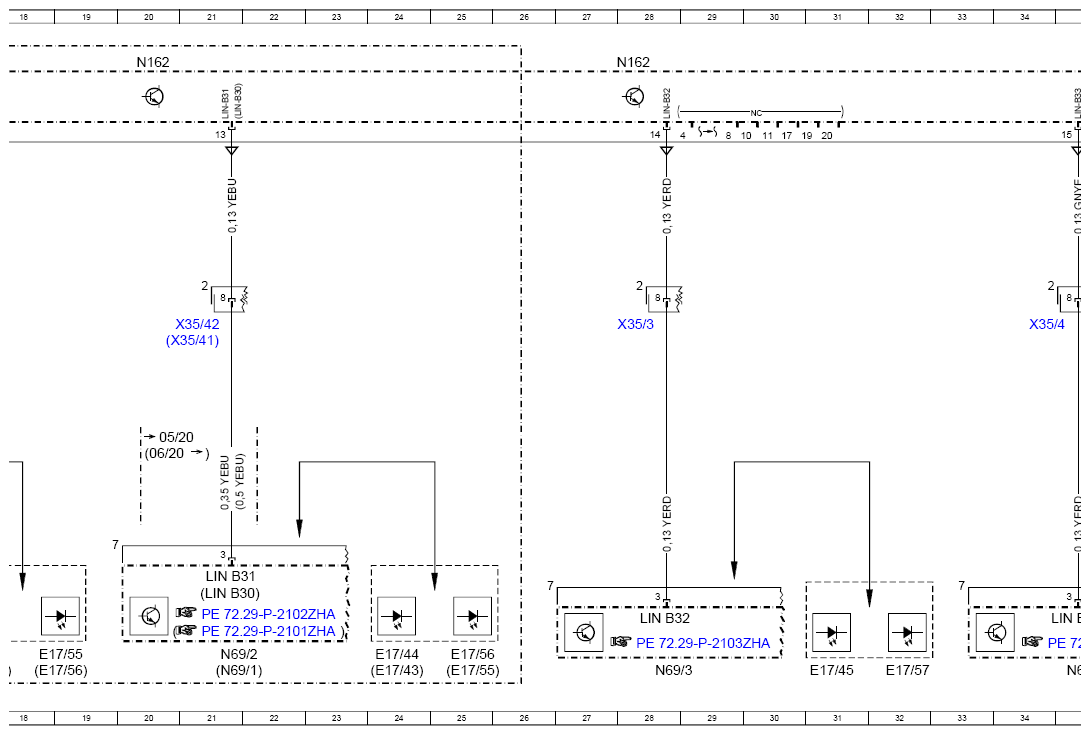

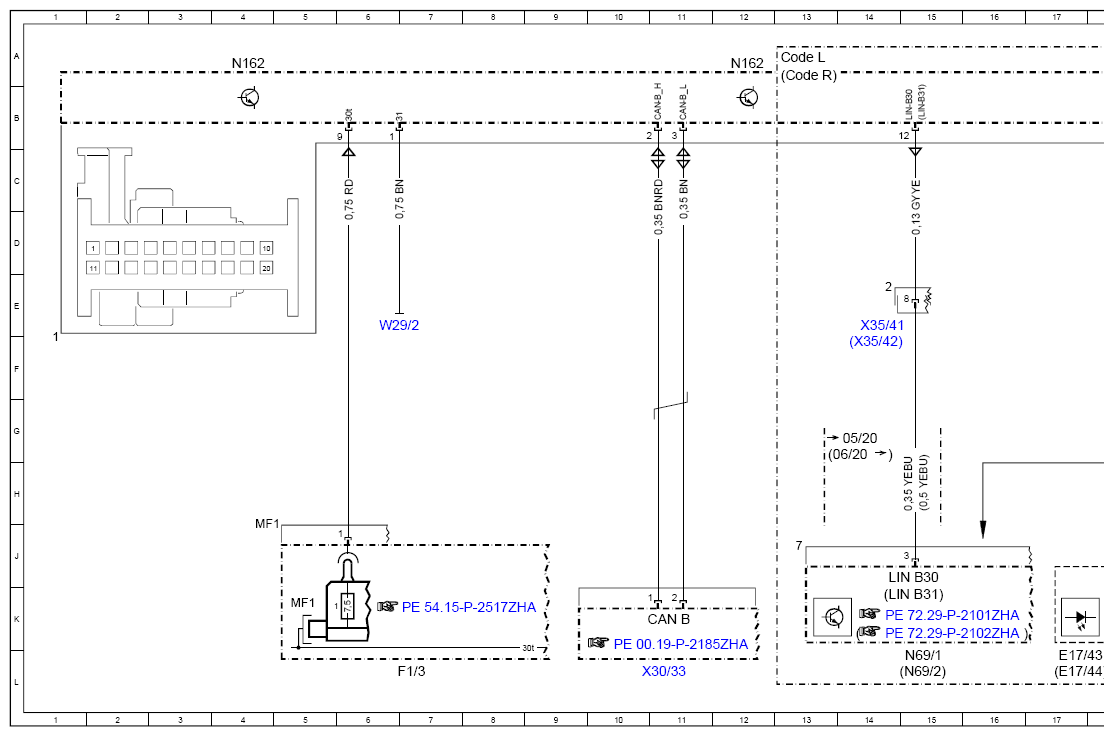

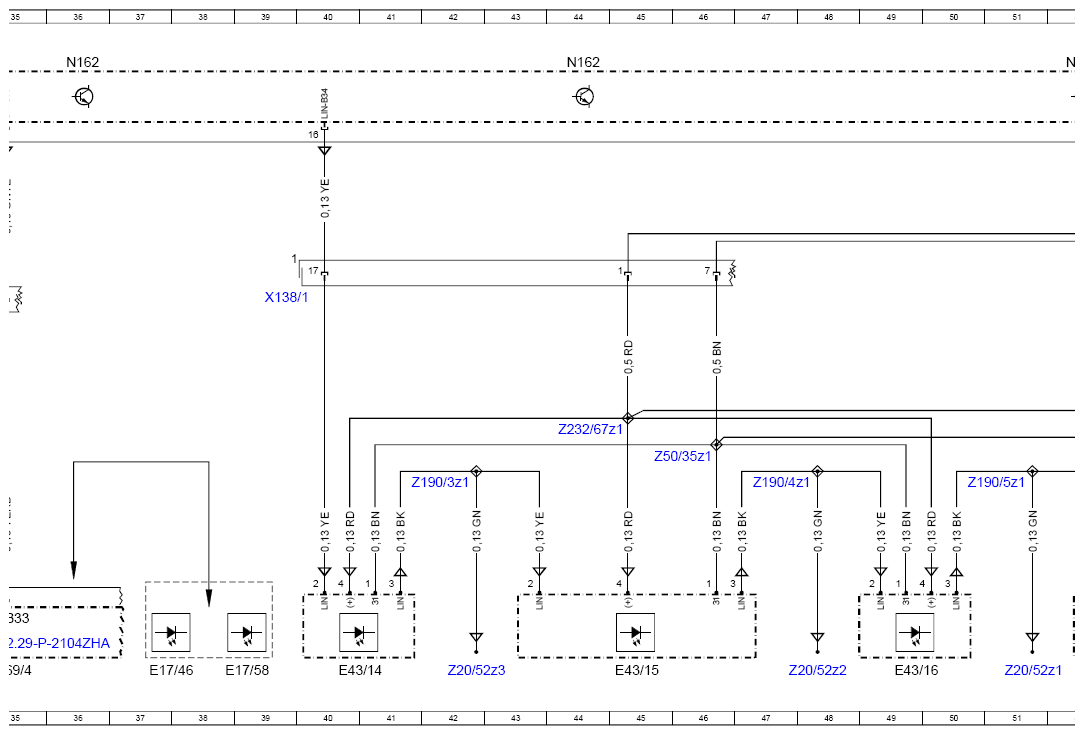

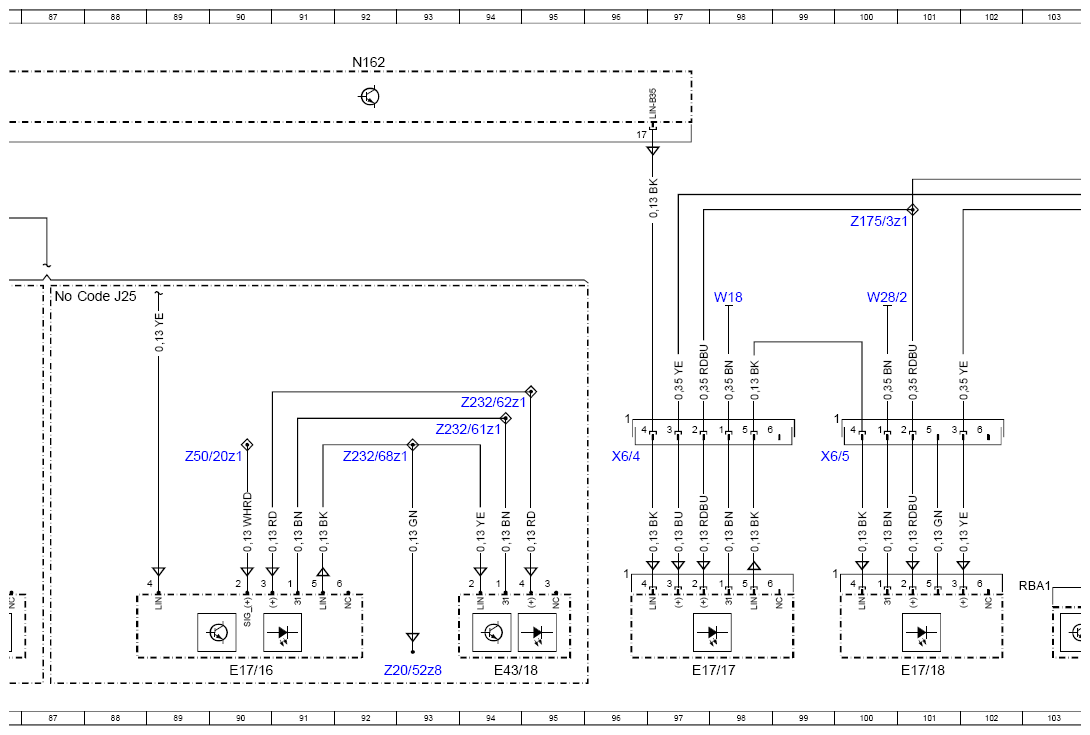

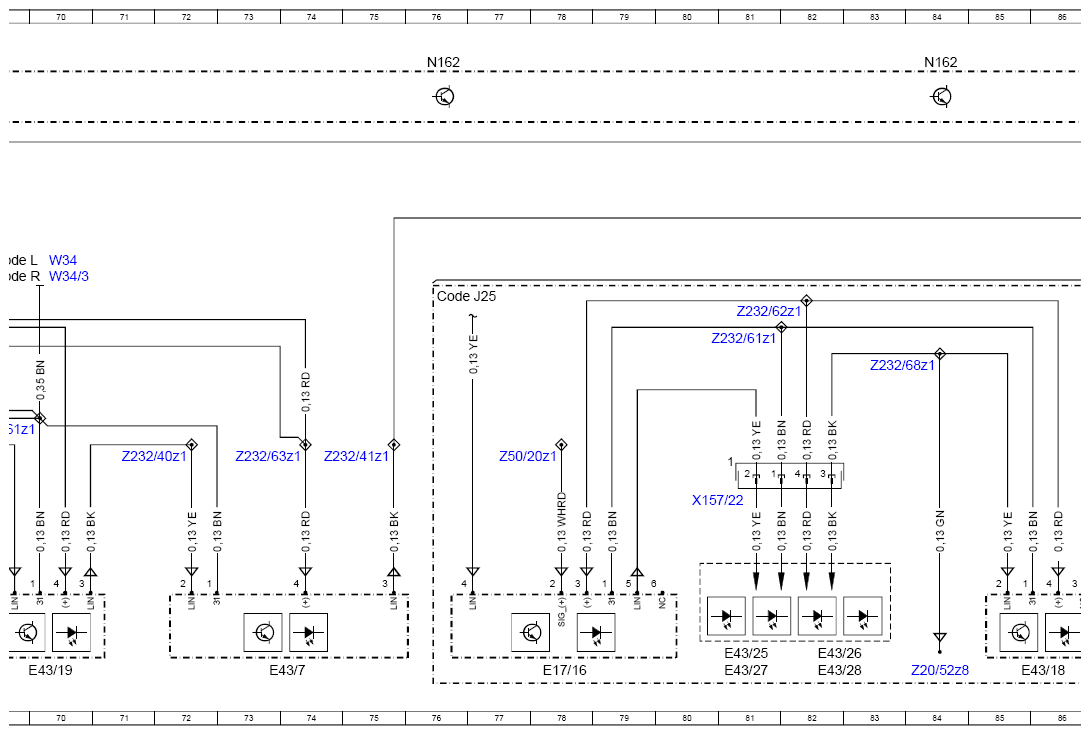

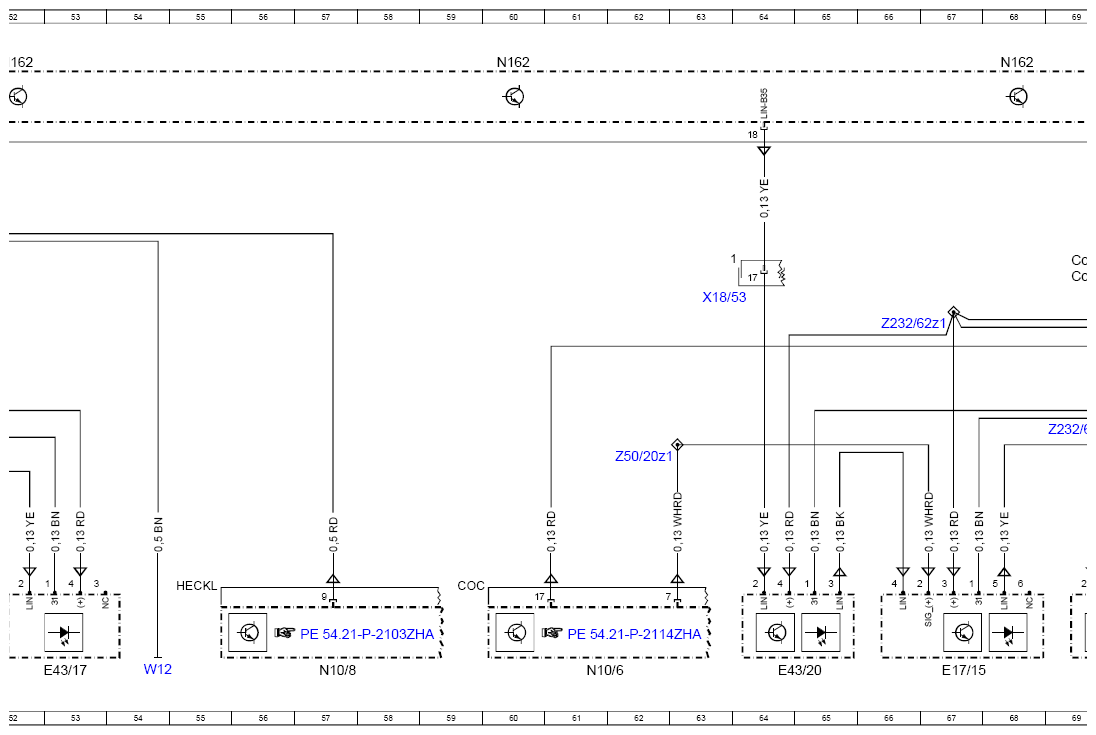

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97ZHA
Model 463 (except 463.342)
as of model year 2019
with code FR1 (ambient lighting)
Control unit N162
| Code: | Designation: | Position: |
|---|---|---|

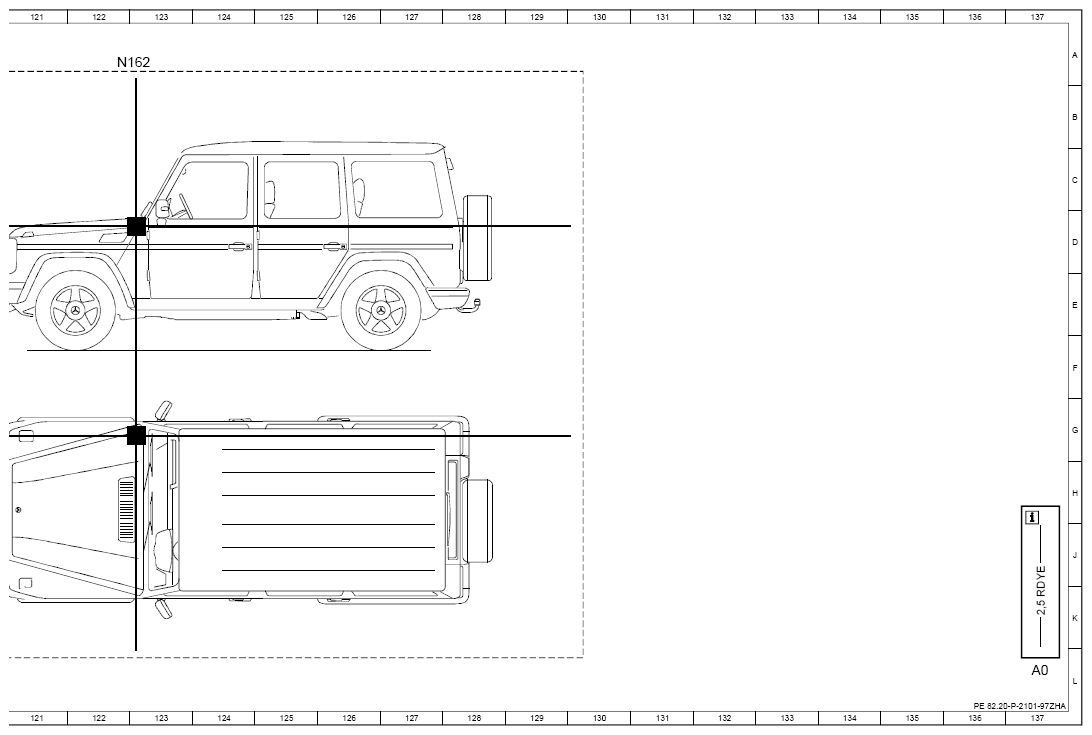

| A0 | Use of wiring diagrams | 137L |
| CAN B | Interior CAN | 11K |
| Code J25 | FULL DIGITAL DISPLAY INSTRUMENT CLUSTER | 76E |
| Code J25 | FULL DIGITAL DISPLAY INSTRUMENT CLUSTER | 87E |
| Code L | LEFT-HAND DRIVE | 13A |
| Code L | LEFT-HAND DRIVE | 69D |
| Code R | RIGHT-HAND DRIVE | 13A |
| Code R | RIGHT-HAND DRIVE | 69E |
| E17/15 | Right front footwell lamp | 67L |
| E17/16 | Left front footwell lamp | 78L |
| E17/16 | Left front footwell lamp | 90L |
| E17/17 | Left rear footwell lamp | 97L |
| E17/18 | Right rear footwell lamp | 101L |
| E17/43 | Left front door ambiance illumination | 17L |
| E17/43 | Left front door ambiance illumination | 24L |
| E17/44 | Right front door ambiance illumination | 17L |
| E17/44 | Right front door ambiance illumination | 24L |
| E17/45 | Left rear door ambiance illumination | 31L |
| E17/46 | Right rear door ambiance illumination | 37L |
| E17/55 | Left front door handle ambiance illumination | 18L |
| E17/55 | Left front door handle ambiance illumination | 25L |
| E17/56 | Right front door handle ambiance illumination | 18L |
| E17/56 | Right front door handle ambiance illumination | 25L |
| E17/57 | Left rear door handle ambiance illumination | 32L |
| E17/58 | Right rear door handle ambiance illumination | 39L |
| E43/14 | Left front center console ambiance illumination | 40L |
| E43/15 | Left rear center console ambiance illumination | 45L |
| E43/16 | Right front center console ambiance illumination | 49L |
| E43/17 | Right rear center console ambiance illumination | 53L |
| E43/18 | Driver-side outside ambient lighting | 86L |
| E43/18 | Driver-side outside ambient lighting | 94L |
| E43/19 | Passenger-side interior ambiance illumination | 70L |
| E43/20 | Passenger-side exterior ambiance illumination | 64L |
| E43/25 | Inner upper digital instrument cluster display ambient lighting | 81L |
| E43/26 | Outer upper digital instrument cluster display ambient lighting | 82L |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 81L |
| E43/28 | Outer lower digital instrument cluster display ambient lighting | 82L |
| E43/7 | Driver-side inner ambient lighting | 73L |
| F1/3 | Right A-pillar fuse box | 7L |
| F1/3MF1 | Multiple fuse 1 | 5K |
| LIN B30 | Left front door ambiance illumination LIN | 15J |
| LIN B30 | Left front door ambiance illumination LIN | 21K |
| LIN B31 | Right front door ambiance illumination LIN | 14K |
| LIN B31 | Right front door ambiance illumination LIN | 21J |
| LIN B32 | Left rear door ambiance illumination LIN | 28K |
| LIN B33 | Right rear door ambiance illumination LIN | 35K |
| N10/6 | Front SAM control unit | 61L |
| N10/6 | Front SAM control unit | 105L |
| N10/8 | Rear SAM control unit | 57L |
| N10/8 | Rear SAM control unit | 109L |

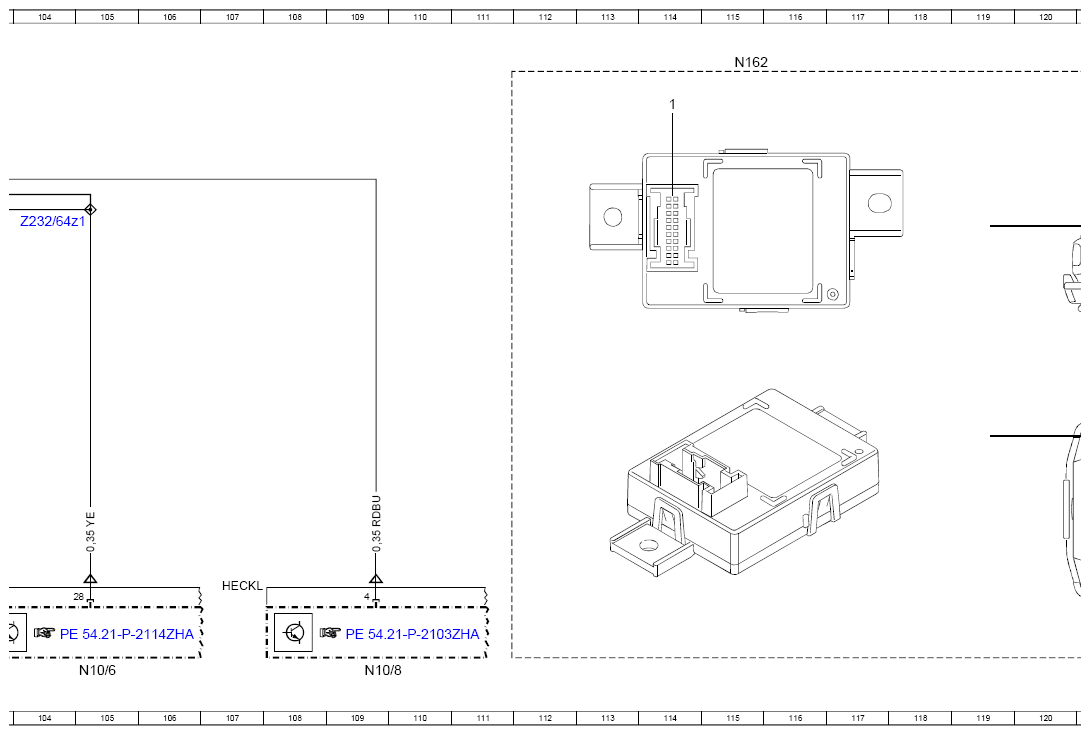

| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 52A |
| N162 | Ambiance illumination control unit | 60A |
| N162 | Ambiance illumination control unit | 68A |
| N162 | Ambiance illumination control unit | 76A |
| N162 | Ambiance illumination control unit | 84A |
| N162 | Ambiance illumination control unit | 92A |
| N162 | Ambiance illumination control unit | 115A |
| N162 | Ambiance illumination control unit | 122A |
| N69/1 | Left front door control unit | 15L |
| N69/1 | Left front door control unit | 21L |
| N69/2 | Right front door control unit | 15L |
| N69/2 | Right front door control unit | 21L |
| N69/3 | Left rear door control unit | 28L |
| N69/4 | Right rear door control unit | 35L |
| W12 | Ground point (center console) | 54L |
| W18 | Left front seat crossmember ground point | 98E |
| W28/2 | Right front seat crossmember ground point 2 | 100E |
| W29/2 | Right A-pillar ground point | 6E |
| W34 | Left footwell ground point | 70D |
| W34/3 | Right footwell ground point | 70E |
| X138/1 | Front center console electrical connector | 39E |
| X157/22 | 81H | |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 63E |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 11L |
| X35/3 | Left rear door electrical connector | 28E |
| X35/4 | Right rear door electrical connector | 34E |
| X35/41 | Driver door electrical connector | 14E |
| X35/41 | Driver door electrical connector | 21F |
| X35/42 | Front passenger door electrical connector | 14F |
| X35/42 | Front passenger door electrical connector | 21E |
| X6/4 | Left rear footwell lamp display electrical connector | 96H |
| X6/5 | Right rear footwell lamp display electrical connector | 100H |
| Z175/3z1 | Voltage supply connector sleeve | 100D |
| Z190/3z1 | LIN B34 connector sleeve | 42H |
| Z190/4z1 | LIN B34 connector sleeve | 47H |
| Z190/5z1 | LIN B34 connector sleeve | 51H |
| Z20/52z1 | LIN B34 connector sleeve | 51L |
| Z20/52z2 | LIN B34 connector sleeve | 48L |
| Z20/52z3 | LIN B34 connector sleeve | 42L |
| Z20/52z8 | LIN B34 connector sleeve | 84L |
| Z20/52z8 | LIN B34 connector sleeve | 93L |
| Z232/40z1 | LIN B35 end sleeve | 71G |
| Z232/41z1 | LIN B35 end sleeve | 75G |
| Z232/61z1 | Circuit 31 connector sleeve | 81F |
| Z232/61z1 | Circuit 31 connector sleeve | 69G |
| Z232/61z1 | Circuit 31 connector sleeve | 94G |
| Z232/62z1 | Voltage supply connector sleeve | 81E |
| Z232/62z1 | Voltage supply connector sleeve | 66E |
| Z232/62z1 | Voltage supply connector sleeve | 94G |
| Z232/63z1 | Voltage supply connector sleeve | 73G |
| Z232/64z1 | Voltage supply connector sleeve | 104D |
| Z232/67z1 | Voltage supply connector sleeve | 44G |
| Z232/68z1 | Voltage supply connector sleeve | 92G |
| Z232/68z1 | Voltage supply connector sleeve | 83F |
| Z50/20z1 | Signal line connector sleeve | 77G |
| Z50/20z1 | Signal line connector sleeve | 62G |
| Z50/20z1 | Signal line connector sleeve | 90G |
| Z50/35z1 | Circuit 31 connector sleeve | 46G |
