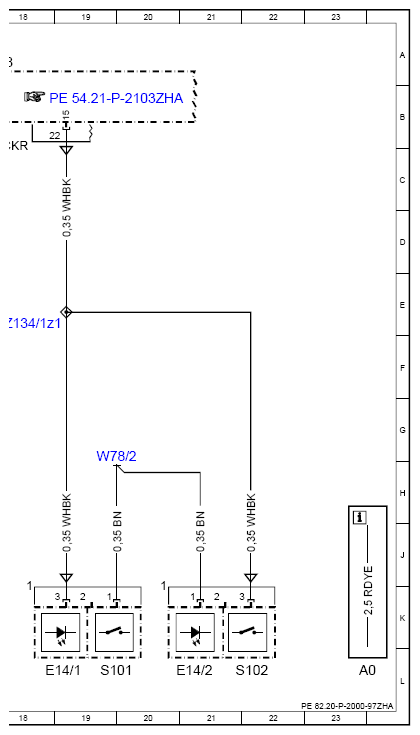

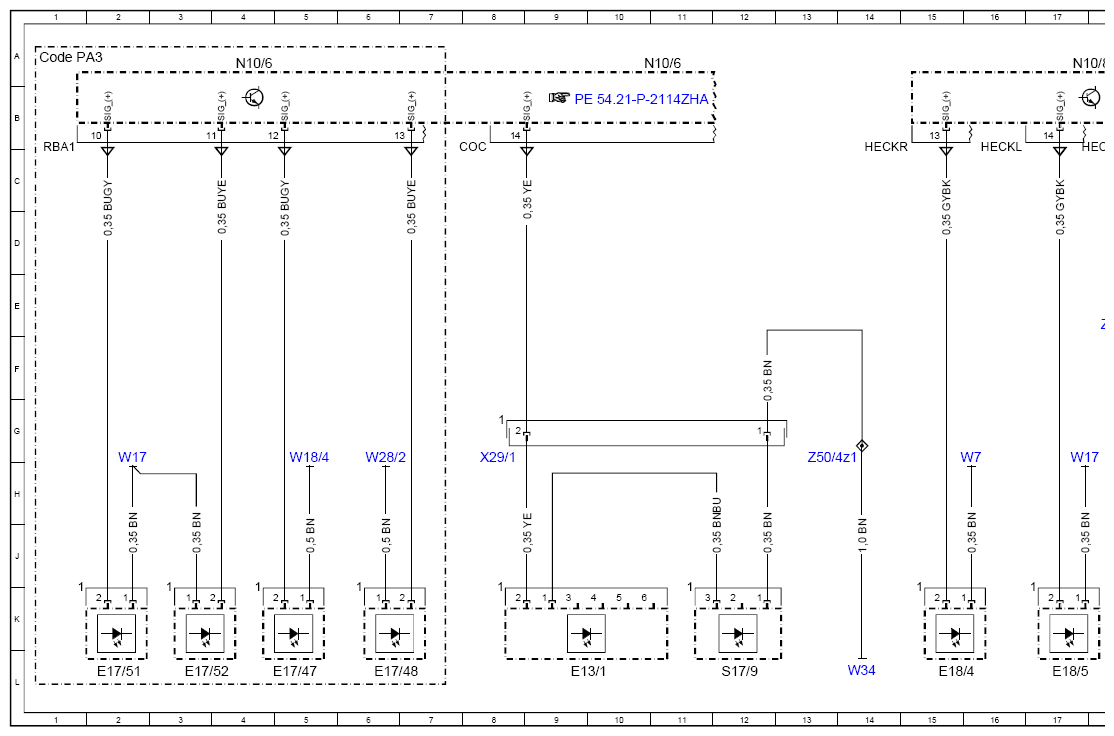

Wiring Diagram Interior Illumination - PE82.20-P-2000-97ZHA
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code PA3 | Exterior stainless steel package | 1A |
| E13/1 | Glove box lamp | 9L |
| E14/1 | Left sun visor mirror lamp | 18L |
| E14/2 | Right sun visor mirror lamp | 21L |
| E17/47 | Left front illuminated door sill molding | 5L |
| E17/48 | Right front illuminated door sill molding | 6L |
| E17/51 | Left rear illuminated door sill molding | 2L |
| E17/52 | Right rear illuminated door sill molding | 3L |
| E18/4 | Left load compartment lamp | 15L |
| E18/5 | Right load compartment lamp | 17L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 11A |
| N10/8 | Rear SAM control unit | 17A |
| S101 | Left front mirror lamp switch | 19L |
| S102 | Right front mirror lamp switch | 22L |
| S17/9 | Glove box lamp switch | 12L |
| W17 | Right rear seat ground point | 2H |
| W17 | Right rear seat ground point | 17H |
| W18/4 | Left front seat crossmember ground point 2 | 5H |
| W28/2 | Right front seat crossmember ground point 2 | 6H |
| W34 | Left footwell ground point | 14L |
| W7 | Right wheel arch rear-end door ground point | 16H |
| W78/2 | Roof ground point | 19H |
| X29/1 | Glove compartment electrical connector | 8H |
| Z134/1z1 | Front vanity mirror power supply end sleeve | 18E |
| Z50/4z1 | Circuit 31 connector sleeve | 13G |
