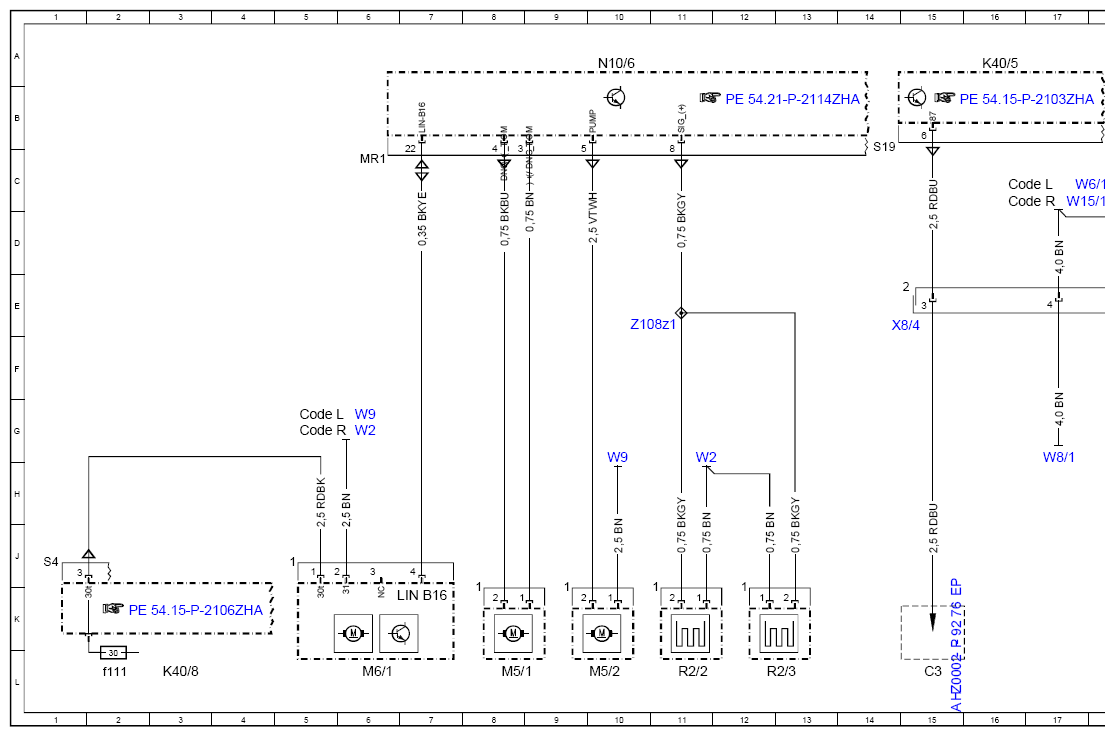

Wiring Diagram For Windshield Wiper System - PE82.30-P-2003-97ZHA
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| C3 | Rear window interference suppression capacitor | 15L |
| Code L | LEFT-HAND DRIVE | 5G |
| Code L | LEFT-HAND DRIVE | 16C |
| Code R | RIGHT-HAND DRIVE | 5G |
| Code R | RIGHT-HAND DRIVE | 16C |
| K40/5 | Rear fuse and relay module | 16A |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f111 | Fuse 111 | 2L |
| LIN B16 | Rain and light sensor LIN | 7K |
| M5/1 | Windshield washer system pump | 8L |
| M5/2 | Headlamp cleaning system pump | 10L |
| M6/1 | Wiper motor | 6L |
| M6/4 | Rear-end door wiper motor | 20L |
| N10/6 | Front SAM control unit | 10A |
| N10/8 | Rear SAM control unit | 21A |
| R2/2 | Left spray nozzle heater | 11L |
| R2/3 | Right spray nozzle heater | 12L |
| W15/13 | Left rear wheel well ground point | 17C |
| W2 | Right front ground point with lamp unit | 6G |
| W2 | Right front ground point with lamp unit | 11H |
| W6/1 | Left tail lamp rear-end door ground point | 17C |
| W8/1 | Rear-end door ground point | 17H |
| W9 | Left front ground point with lamp unit | 6G |
| W9 | Left front ground point with lamp unit | 10H |
| X8/4 | Rear-end door electrical connector | 20E |
| X8/4 | Rear-end door electrical connector | 15E |
| Z108z1 | Voltage supply connector sleeve | 11E |
| Z6/20z1 | Ground connection connector sleeve | 18G |
