Wiring Diagram For Touchpad - PE82.00-P-2061-97ZHA
Model 463 (except 463.342)
as of model year 2019

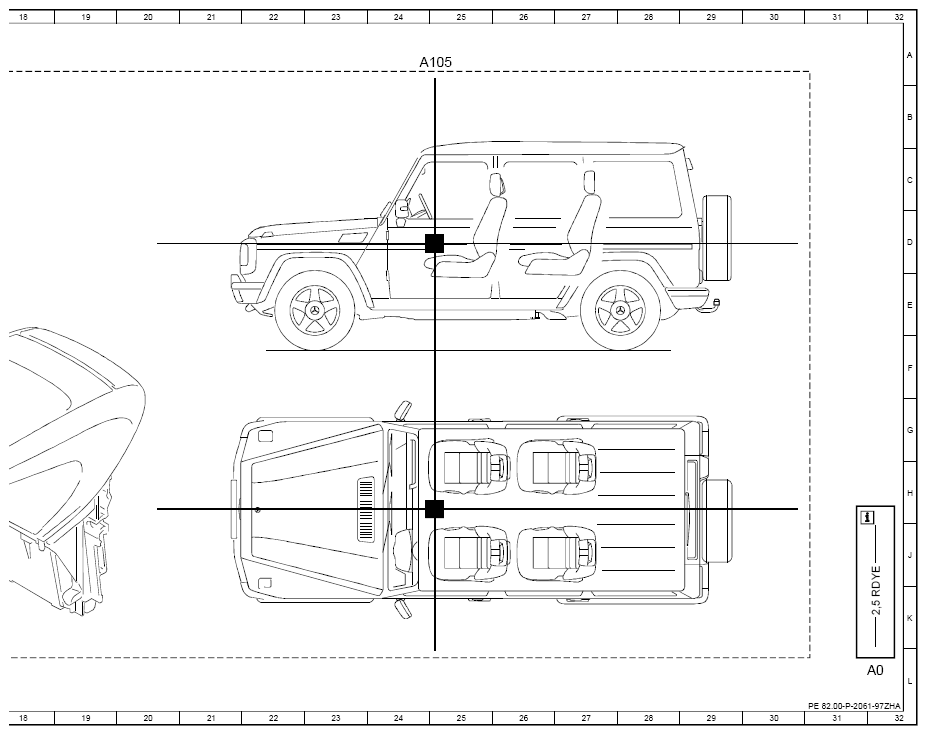

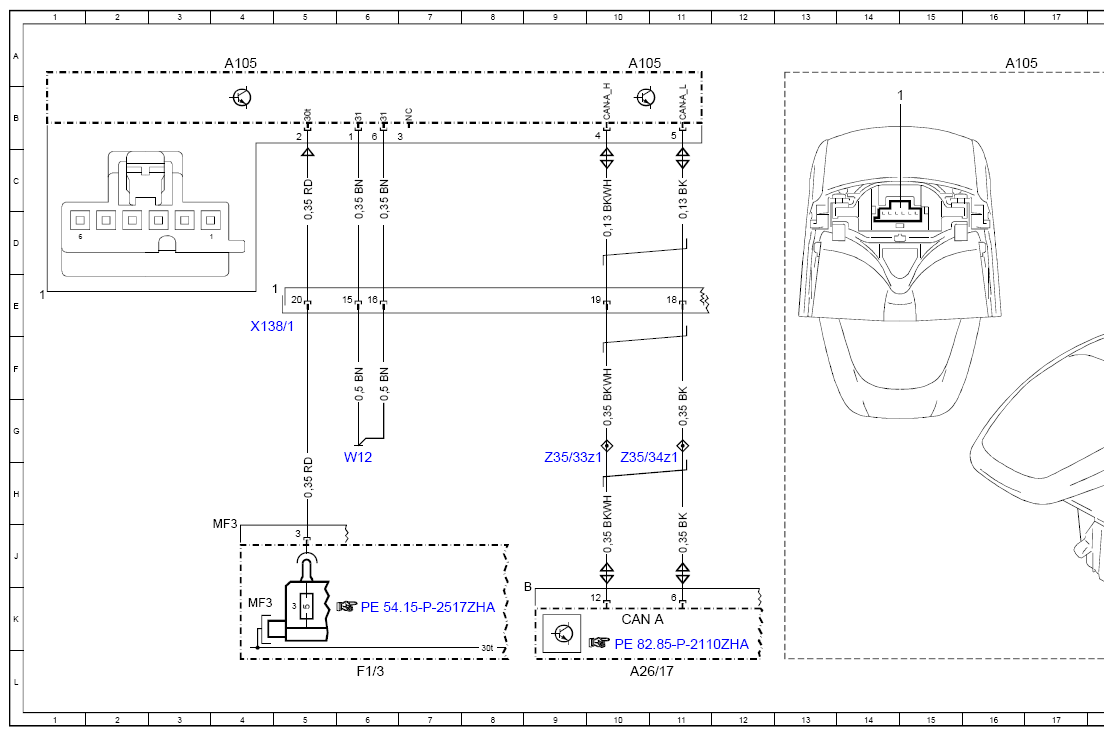

Touchpad A105
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 10A |
| A105 | Touchpad | 16A |
| A105 | Touchpad | 24A |
| A26/17 | Head unit | 10L |
| CAN A | Telematics CAN | 10K |
| F1/3 | Right A-pillar fuse box | 6L |
| F1/3MF3 | Multiple fuse 3 | 4K |
| W12 | Ground point (center console) | 6H |
| X138/1 | Front center console electrical connector | 4E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 9G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 10G |
