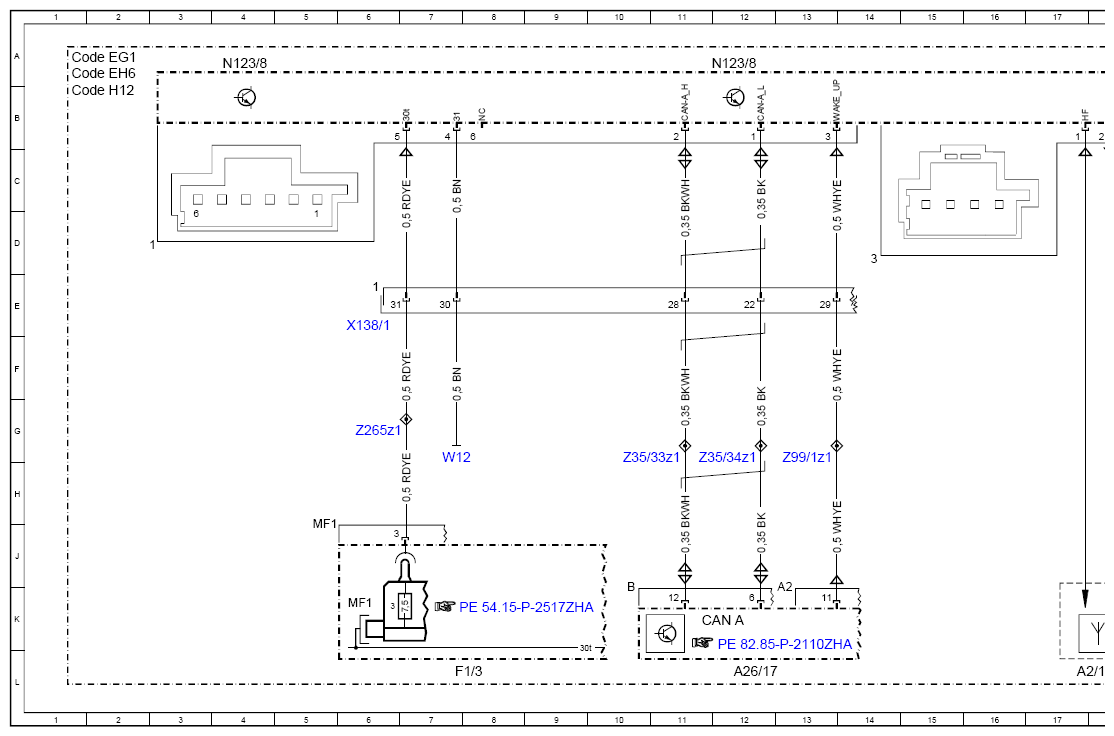

Wiring Diagram For Telephone (TEL) - PE82.70-P-2000-97ZHA
Model 463 (except 463.342)
as of model year 2019
with code EG1 (Auto telephony)
with code EH6 (Multifunction telephony)
A28/15 N123/8 N123/9
| Code: | Designation: | Position: |
|---|---|---|

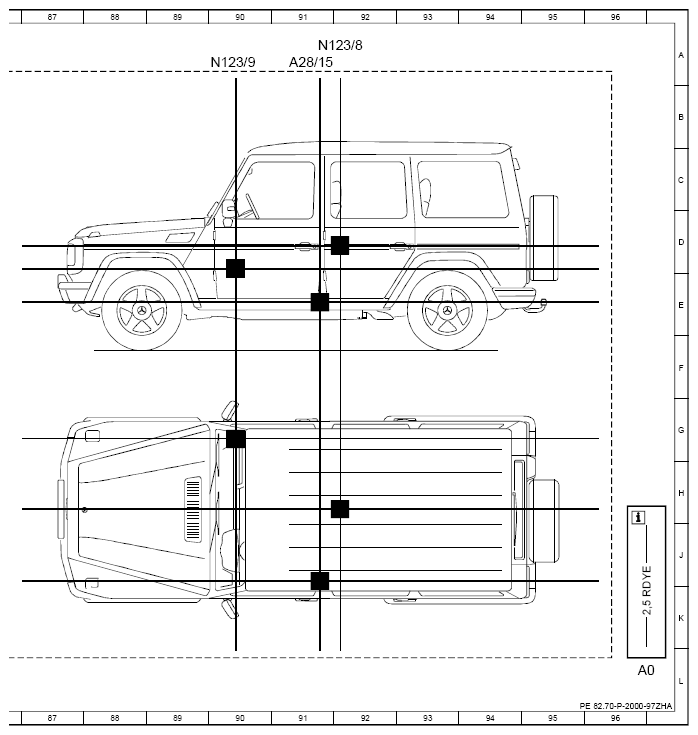

| A0 | Use of wiring diagrams | 96L |
| A2/109 | Telephone antenna splitter | 29L |
| A2/156 | Near Field Communication antenna | 18L |
| A2/168 | Telephone antenna changeover switch | 35L |
| A26/17 | Head unit | 12L |
| A26/17 | Head unit | 56L |

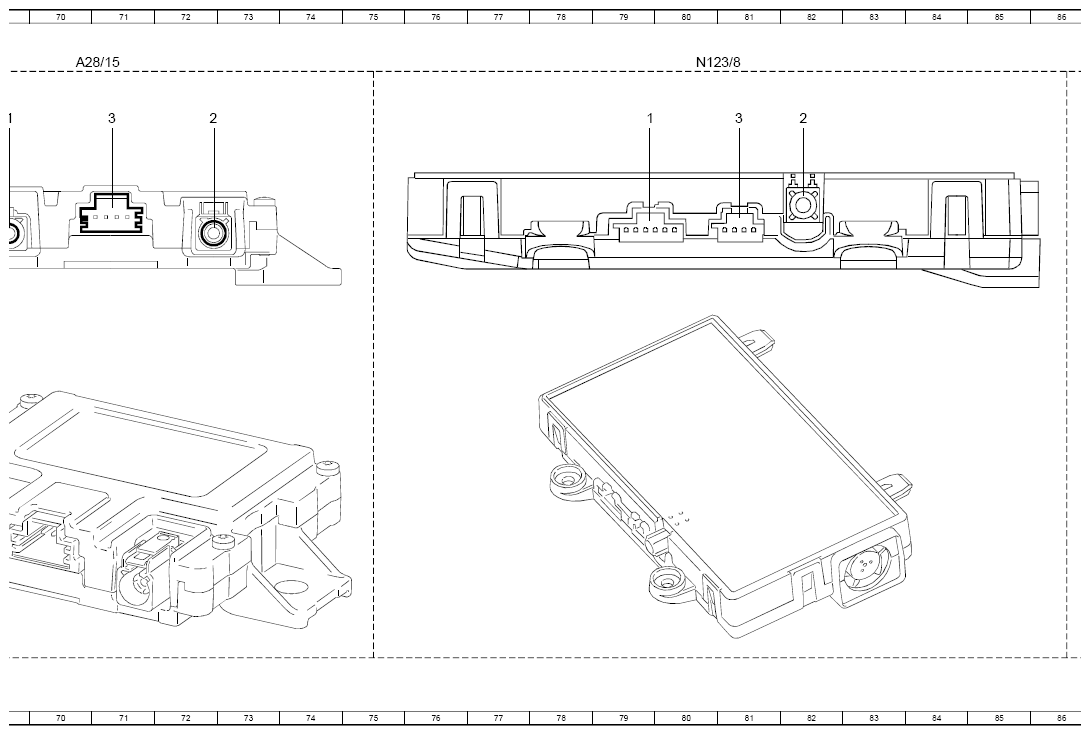

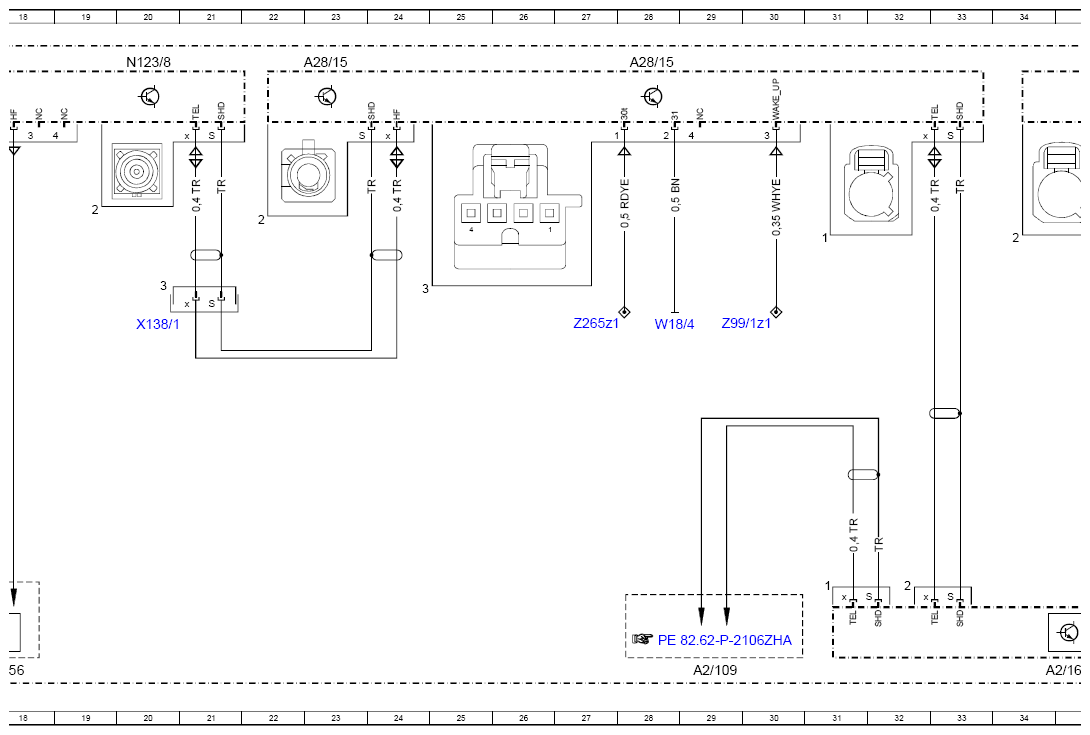

| A28/15 | Cellular telephone system antenna amplifier/compensator | 23A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 28A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 70A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 91A |
| CAN A | Telematics CAN | 12K |
| CAN A | Telematics CAN | 56K |
| Code EG1 | Car telephony | 1A |
| Code EH6 | Multifunction telephony | 1A |
| Code H12 | Stationary heater | 1B |
| F1/3 | Right A-pillar fuse box | 7L |
| F1/3 | Right A-pillar fuse box | 52L |
| F1/3MF1 | Multiple fuse 1 | 6K |
| F1/3MF2 | Multiple fuse 2 | 50K |
| K40/5 | Rear fuse and relay module | 47L |
| K40/5f410 | Fuse 410 | 46L |
| N123/8 | Mobile phone cradle control unit | 4A |
| N123/8 | Mobile phone cradle control unit | 20A |
| N123/8 | Mobile phone cradle control unit | 12A |
| N123/8 | Mobile phone cradle control unit | 80A |
| N123/8 | Mobile phone cradle control unit | 91A |

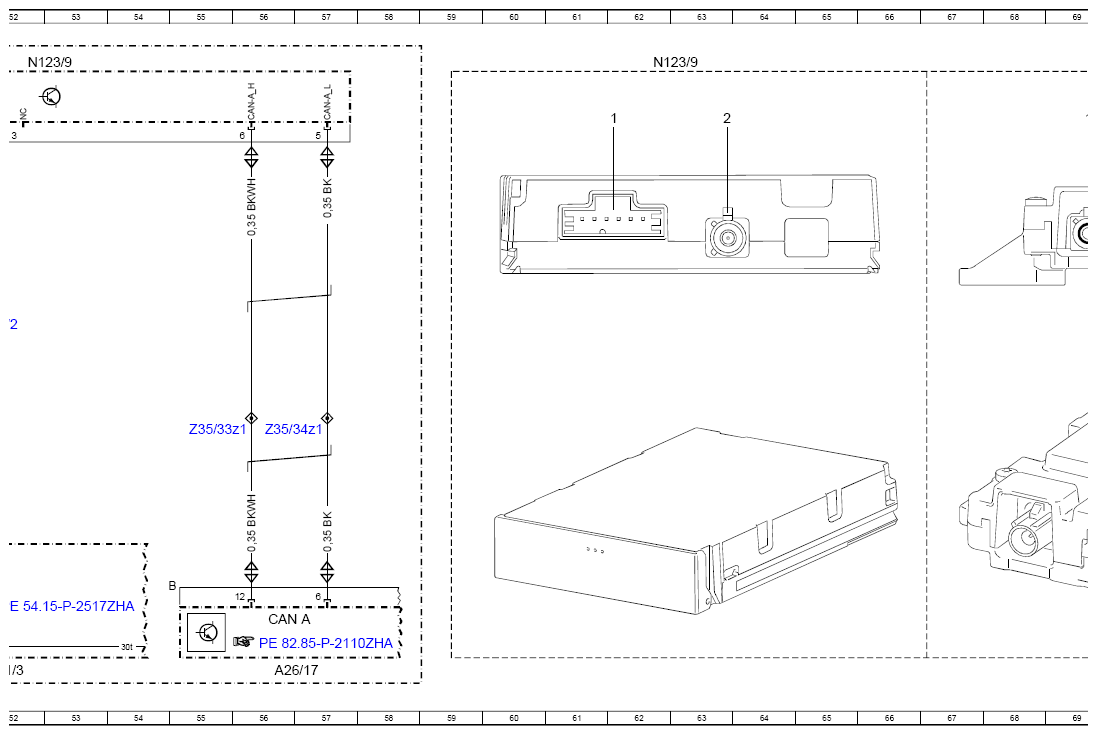

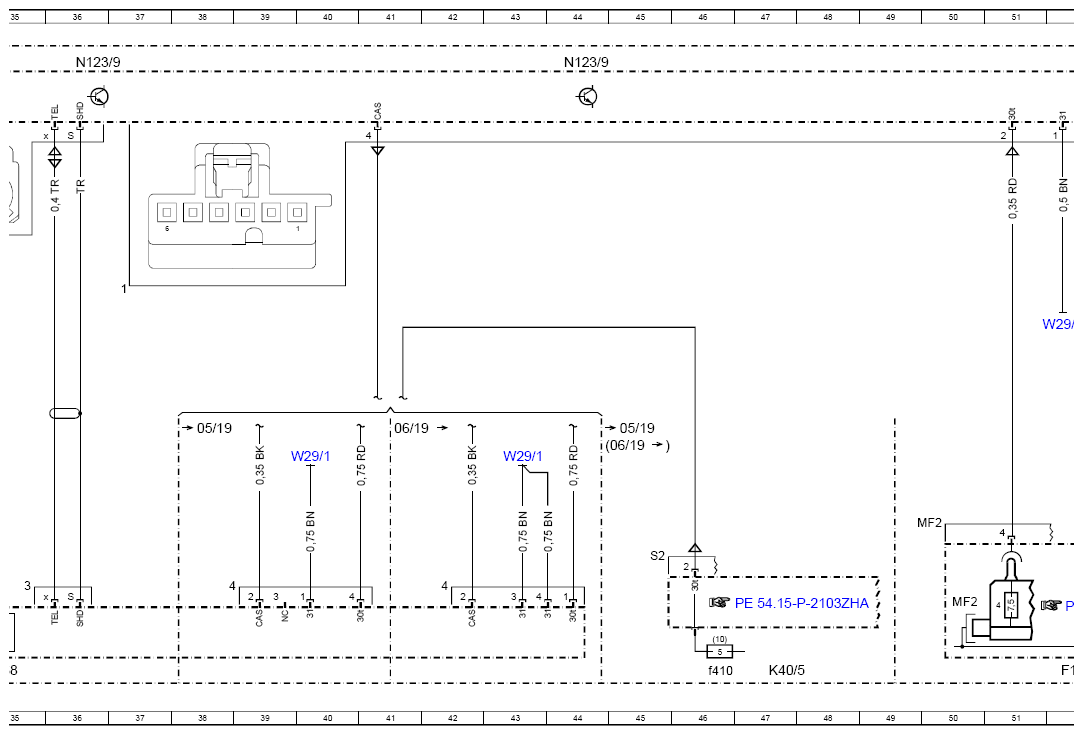

| N123/9 | Telephone control unit | 36A |
| N123/9 | Telephone control unit | 52A |
| N123/9 | Telephone control unit | 44A |
| N123/9 | Telephone control unit | 62A |
| N123/9 | Telephone control unit | 90A |
| W12 | Ground point (center console) | 7H |
| W18/4 | Left front seat crossmember ground point 2 | 28E |
| W29/1 | Left A-pillar ground point | 43H |
| W29/1 | Left A-pillar ground point | 40H |
| W29/2 | Right A-pillar ground point | 52E |
| X138/1 | Front center console electrical connector | 6E |
| X138/1 | Front center console electrical connector | 20E |
| Z265z1 | Terminal 30t connector sleeve | 6G |
| Z265z1 | Terminal 30t connector sleeve | 27E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 11G |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 55G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 12G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 56G |
| Z99/1z1 | Wake-up signal connector sleeve | 13G |
| Z99/1z1 | Wake-up signal connector sleeve | 30E |
