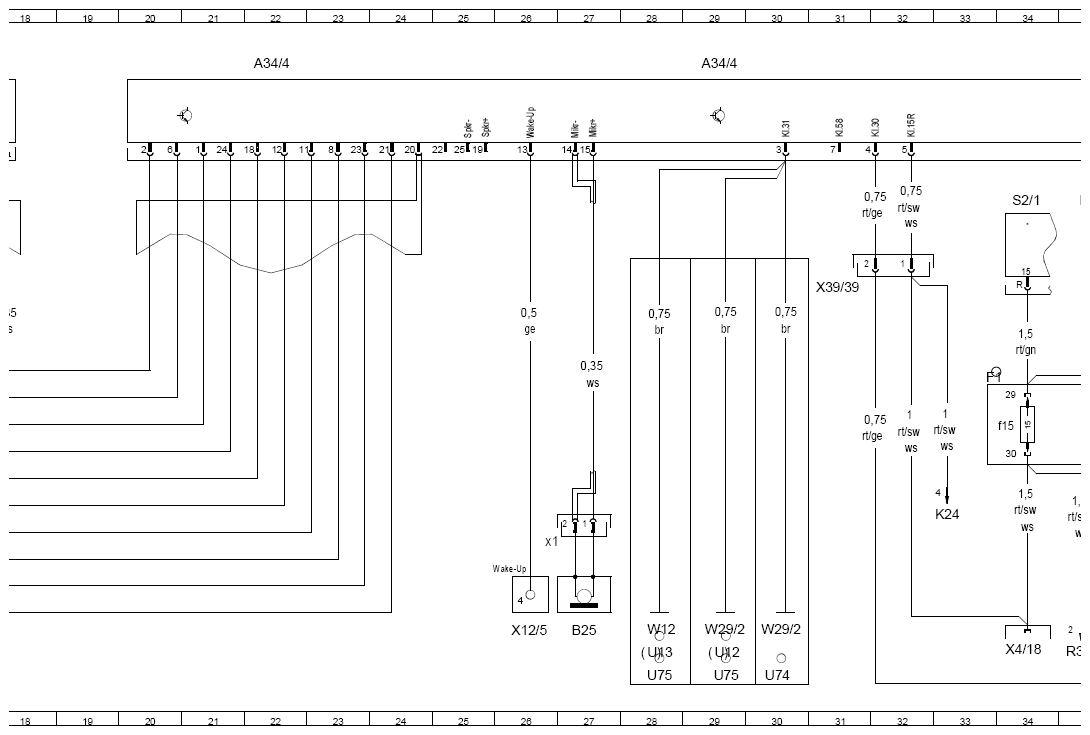

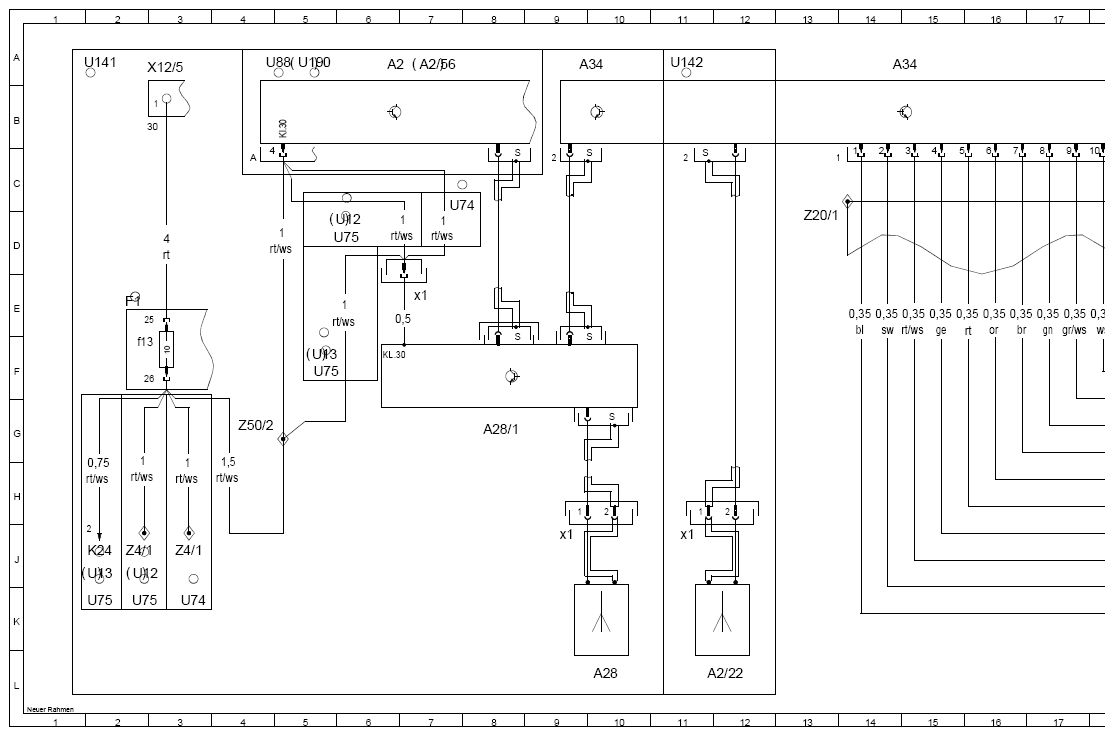

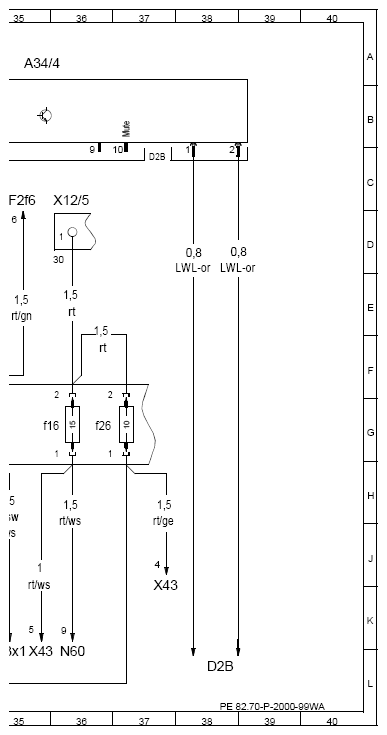

(Wiring Diagram For Telephone (TEL) - PE82.70-P-2000-99WA)
MODEL 463 as of production date 6/1/99 up to production date 9/1/01
| Code: | Designation: | Position: |
|---|---|---|
| A2 | Radio | 9B |
| A2/22 | Telephone and fax antenna | 12L |
| A2/22x1 | Telephone and fax antenna connector | 11H |
| A2/56 | Radio and navigation unit | 10B |
| A28 | Radio and portable CTEL antenna | 10L |
| A28/1 | Radio and portable CTEL antenna splitter | 8G |
| A28/1x1 | Antenna splitter voltage supply connector | 7D |
| A28x1 | Radio and portable CTEL antenna connector | 9H |
| A34 | Telephone handset | 20B |
| A34 | Telephone handset | 13B |
| A34/4 | Telephone interface | 30B |
| A34/4 | Telephone interface | 49B |
| A34/4 | Telephone interface | 41B |
| B25 | Hands-free system microphone | 27K |
| B25x1 | Hands-free microphone connector | 27J |
| F1 | Fuse box | 33F |
| F1 | Fuse box | 2E |
| F1f13 | Fuse 13 | 3F |
| F1f15 | Fuse 15 | 34G |
| F1f16 | Fuse 16 | 36G |
| F1f26 | Fuse 26 | 37G |
| F2f6 | Fuse 6 | 49E |
| K24 | Comfort shift relay | 46M |
| K24 | Comfort shift relay | 2N |
| N60 | CL [ZV] control unit | 50P |
| R3x1 | Cigar lighter connector | 49P |
| S2/1 | Ignition/starter switch | 48E |
| U12 | Valid for left-hand drive vehicles | 41P |
| U12 | Valid for left-hand drive vehicles | 3N |
| U12 | Valid for left-hand drive vehicles | 8E |
| U13 | Valid for right-hand drive vehicles | 2N |
| U13 | Valid for right-hand drive vehicles | 39P |
| U13 | Valid for right-hand drive vehicles | 7H |
| U141 | Valid for convertibles with portable CTEL and radio | 2B |
| U142 | Not valid for convertible | 15B |
| U190 | Valid for APS | 7B |
| U74 | Valid for diesel engines | 42P |
| U74 | Valid for diesel engines | 4O |
| U74 | Valid for diesel engines | 10E |
| U75 | Valid for gasoline engines | 7J |
| U75 | Valid for gasoline engines | 39P |
| U75 | Valid for gasoline engines | 2O |
| U75 | Valid for gasoline engines | 3O |
| U75 | Valid for gasoline engines | 8F |
| U75 | Valid for gasoline engines | 41P |
| U88 | Valid for radio | 6B |
| W12 | Ground (center console) | 39O |
| W29/2 | Ground (right A-pillar) | 42O |
| W29/2 | Ground (right A-pillar) | 41O |
| X12/5 | Circuit 30, 15, 61 terminal block, wake-up | 50E |
| X12/5 | Circuit 30, 15, 61 terminal block, wake-up | 3B |
| X12/5 | Circuit 30, 15, 61 terminal block, wake-up | 36O |
| X39/39 | Handy connector | 43G |
| X4/18 | Circuit 15R terminal block (1-pin) | 47P |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 52N |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 50P |
| Z20/1 | Shielding placed inside insulating tubing | 18E |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 3N |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 4N |
| Z50/2 | Connector sleeve 2 | 5K |
