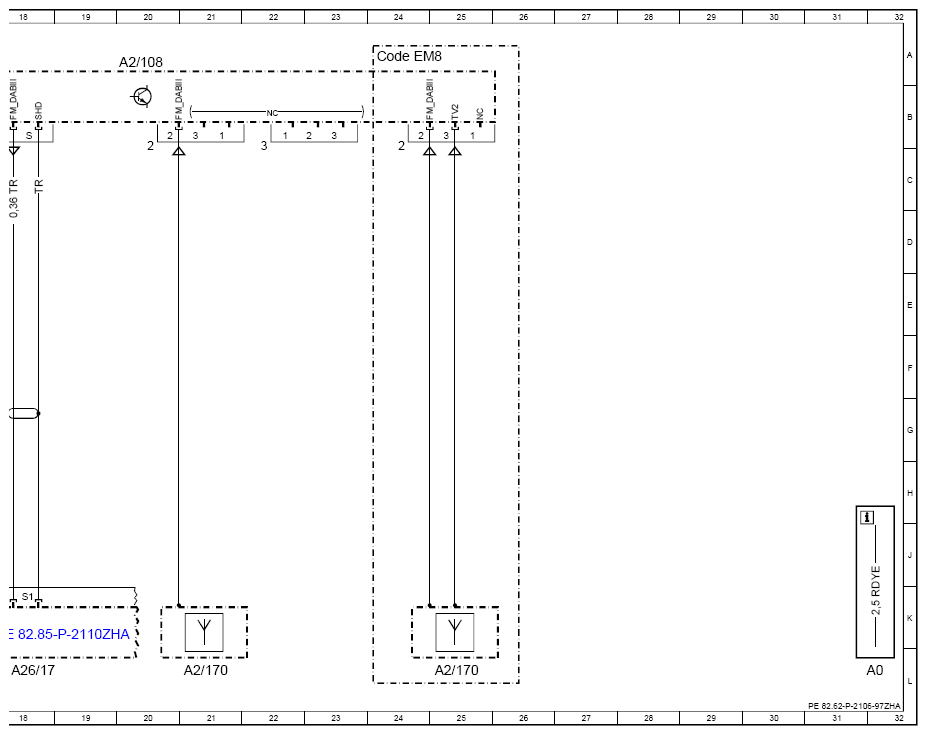

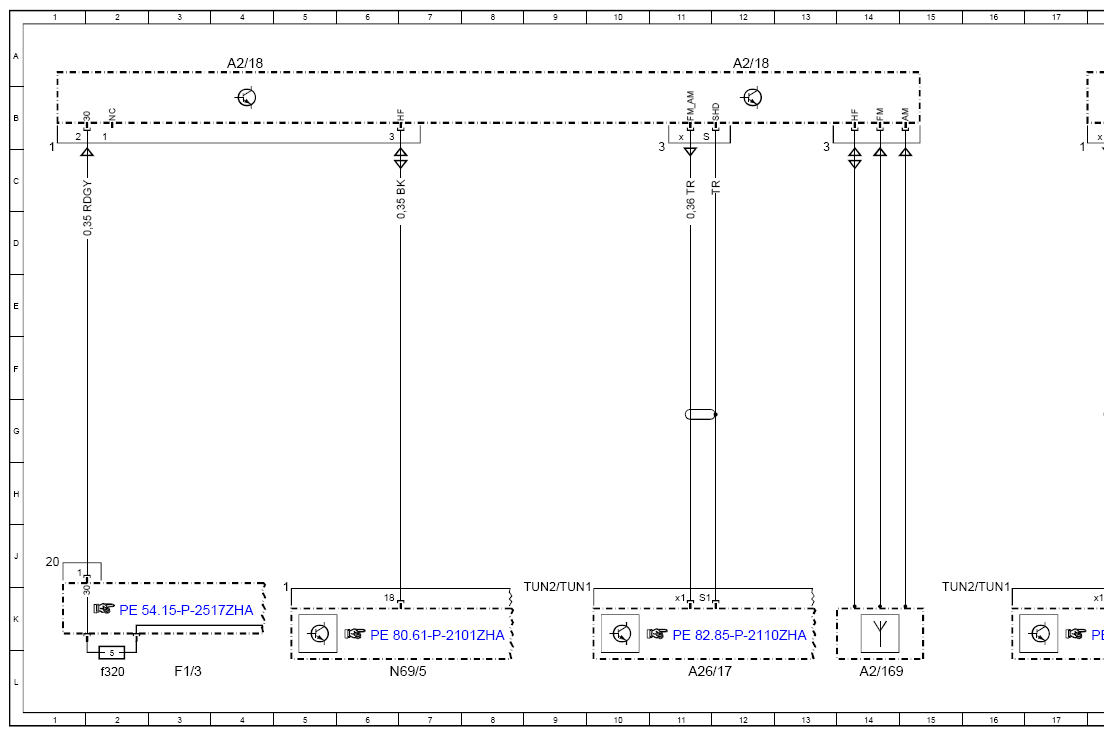

Wiring Diagram For Sound Amplifier Control Unit, Dolby Surround Amplifier - PE82.62-P-2106-97ZHA
Model 463 (except 463.342)
as of model year 2019
Side window antennas A2/169, A2/170
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2/108 | FM 2, DAB 2, TV 2 antenna amplifier | 20A |
| A2/169 | Left rear side window antenna | 14L |
| A2/170 | Right rear side window antenna | 21L |
| A2/170 | Right rear side window antenna | 25L |
| A2/18 | FM 1, AM, CL [ZV], DAB 1 antenna amplifier | 4A |
| A2/18 | FM 1, AM, CL [ZV], DAB 1 antenna amplifier | 12A |
| A26/17 | Head unit | 11L |
| A26/17 | Head unit | 18L |
| Code EM8 | TV tuner | 24A |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f320 | Fuse 320 | 2L |
| N69/5 | KEYLESS-GO control unit | 7L |
