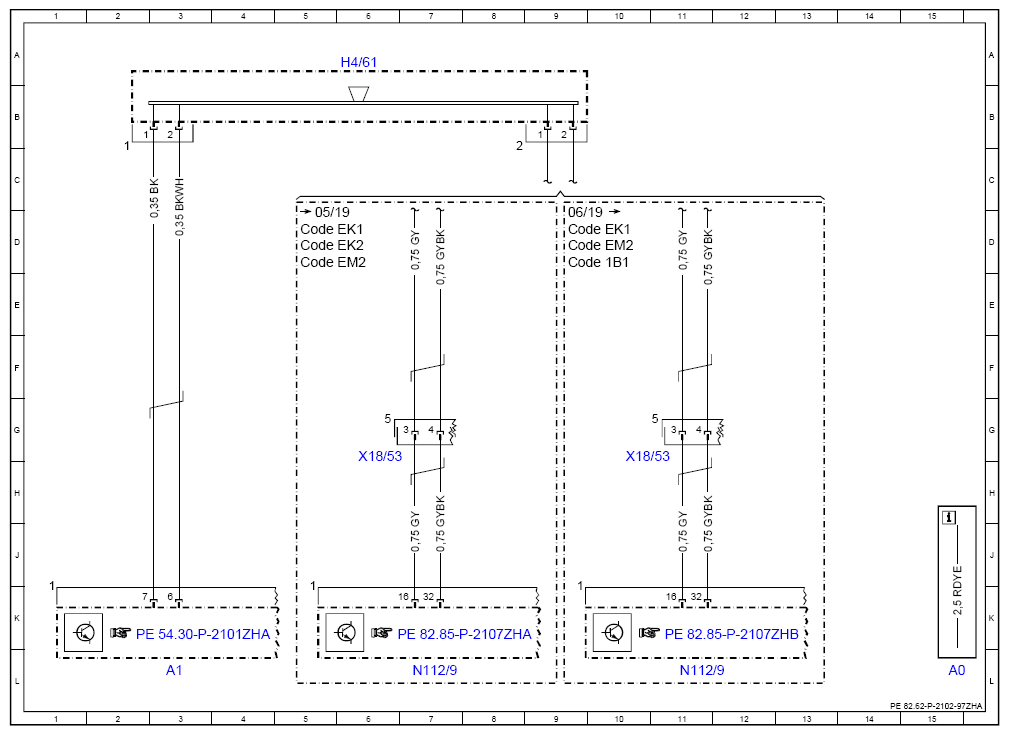

Wiring Diagram For Loudspeakers - PE82.62-P-2102-97ZHA
Model 463 (except 463.342)
as of model year 2019
Speaker H4/61
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A1 | Instrument cluster | 3L |
| Code 1B1 | TECHNICAL COMMUNICATION MODULE VARIANT FOR RUSSIA | 9D |
| Code EK1 | HERMES LTE communications module | 5D |
| Code EK1 | HERMES LTE communications module | 9D |
| Code EK2 | HERMES - UMTS Russia communications module | 5D |
| Code EM2 | HERMES UMTS communications module | 5D |
| Code EM2 | HERMES UMTS communications module | 9D |
| H4/61 | Instrument cluster speaker | 6A |
| N112/9 | HERMES control unit | 7L |
| N112/9 | HERMES control unit | 11L |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 6H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 10H |
